Tecme NEUMOVENT - Removal of Keyboard Board

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
51
How to Open and Close the Neumovent Graph Ventilator
Operation
Designation
90
Removal of Keyboard Board

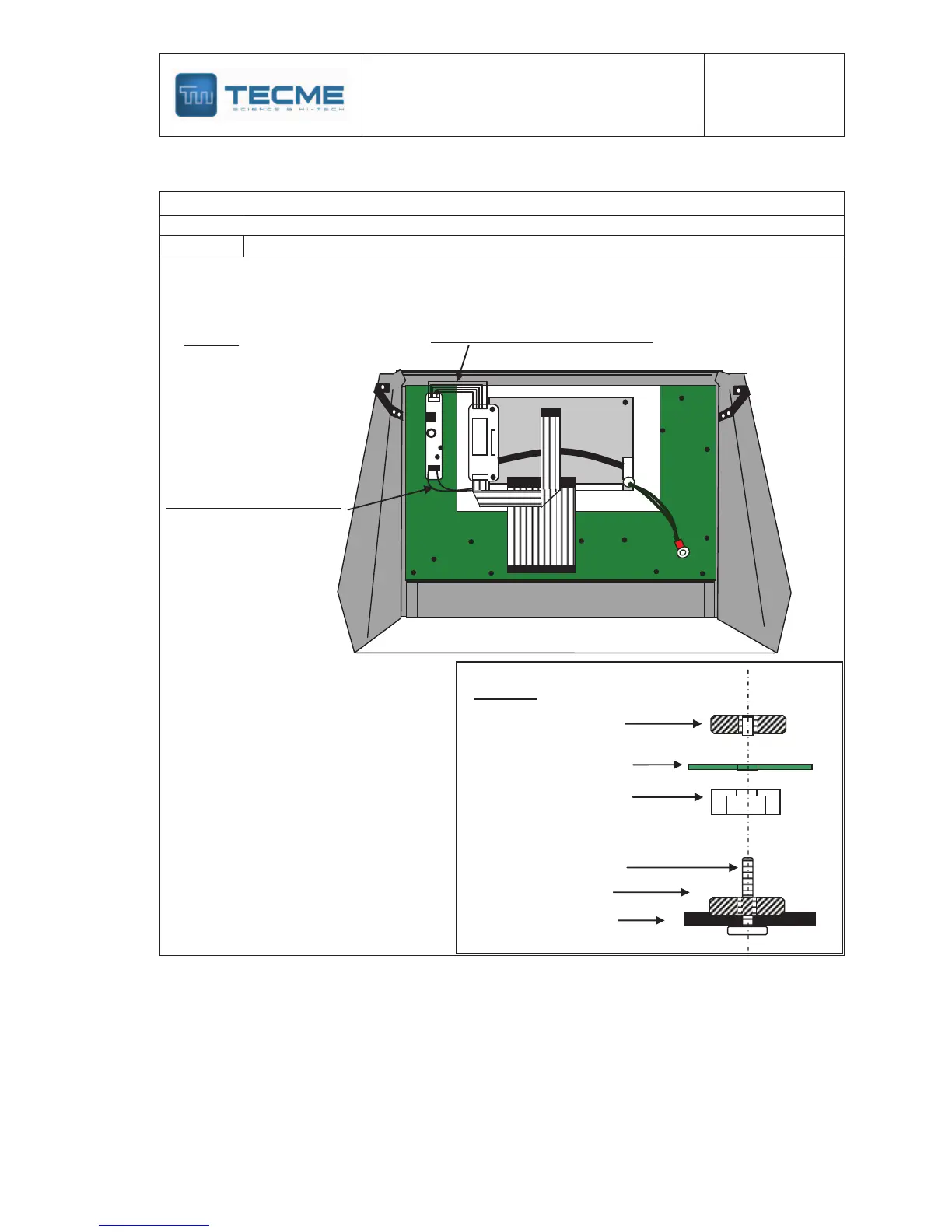

1- Disconnect the cables indicated in Fig.:9-A.
2- Remove the Keyboard Board, by removing the 20 screws that attach it to the panel.
Source Board – Inverter Board Cables
Inverter Board–DisplayCables
Fig.:9-A
Fig. 9-B :
Nut
Filler
Screw
Keyboard board
Panel
Nut, do not remove
