Tecme NEUMOVENT - Page 53

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
47
How to Open and Close the Neumovent Graph Ventilator
Operation
Description
50

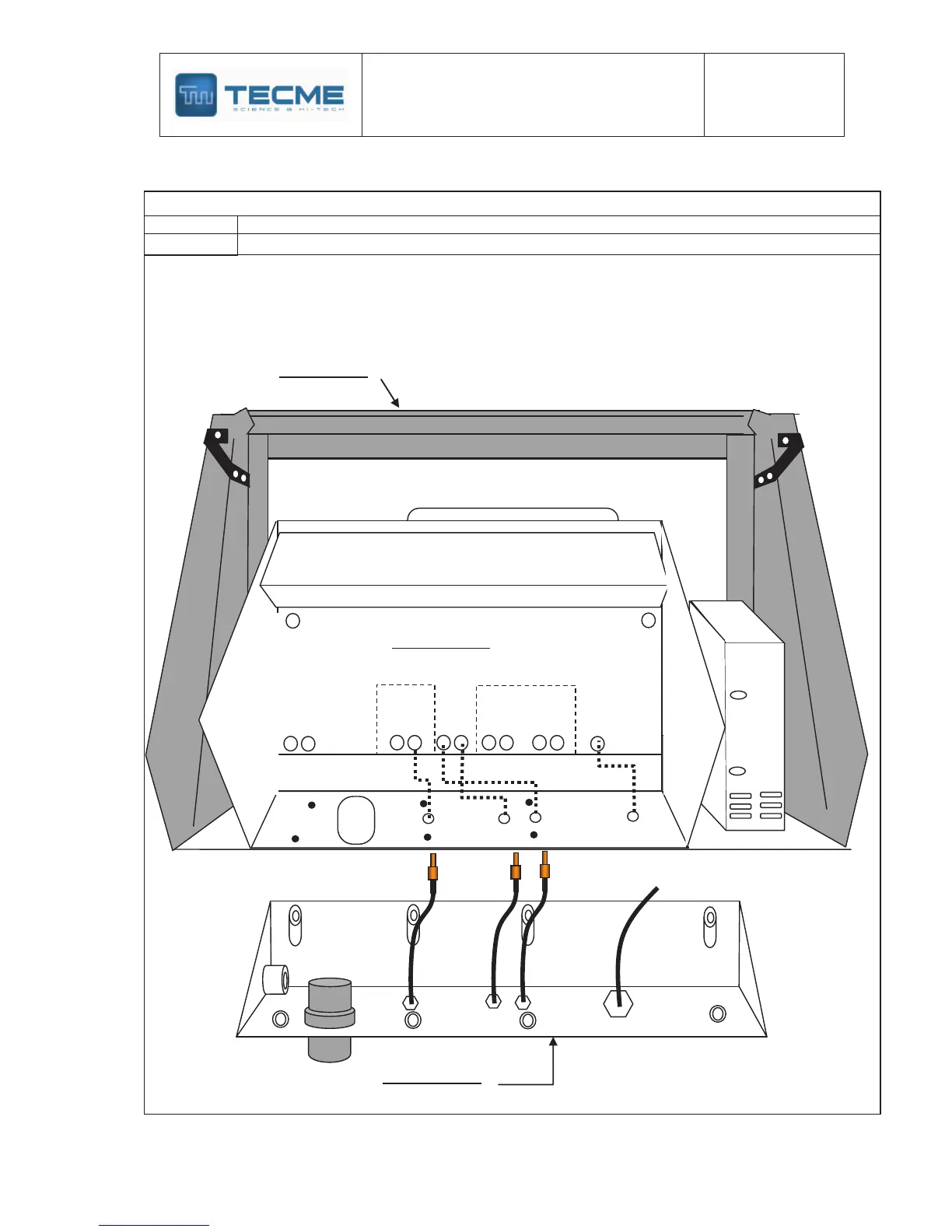

Separation Outlet Manifold – Box – Front Cabinet:
-Disconnect tubes 1, 2, 3, and 4, and remove the outlet manifold, Fig.:5-C
1
2
o
2
air
nebulizer
entrada
salida
P2
P1
Neumo inspiratory
(-)
(+)
(+)
(-)
V. Espiratory
Reg.10 psi
F.scane
1
2
3
3
4
4
Outlet Manifold
Pneumatic Box
Front Cabinet
