TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04 Date:
09/05/06
49
Operación

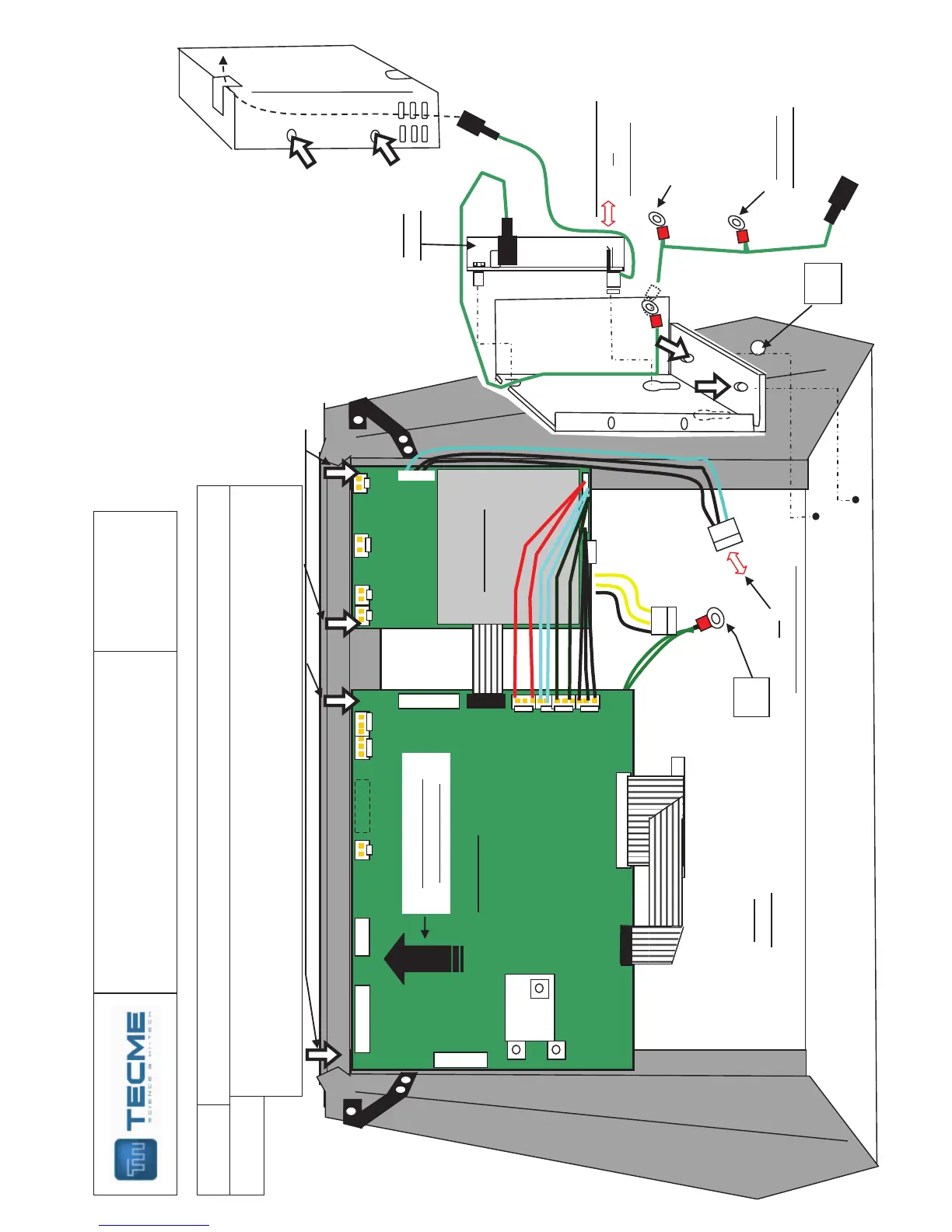

How to Open and Close the Neumovent Graph Ventilator
70
1- Desconect Con2 cables 2-
Desconect Con1,Con3 and Con5 flat (ribbon)cables of CPU board
3-
Remove the 4 screws indicated
4-Then, move the boards in the direction indicated by the arrows so as to remove them
CON 14
CON 12
CON 8
CON 9
CON 7
CON 6
CON 5
CON 1
CON 2
CON 4
J1
J2
CPU Board
S/N
Ancil Board
Ffront
Gabinet
CON 3
CON 5
Move the boards
In this direction
Position 2
(Side shield
)
Positiion 1
(Box Ground cable)
Power
Source
From Con 3 cable
of
Ancil board
1
2
To
J2 in power source
Con3
Remove the screws
indicated
