Tecme NEUMOVENT - Page 65

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
58

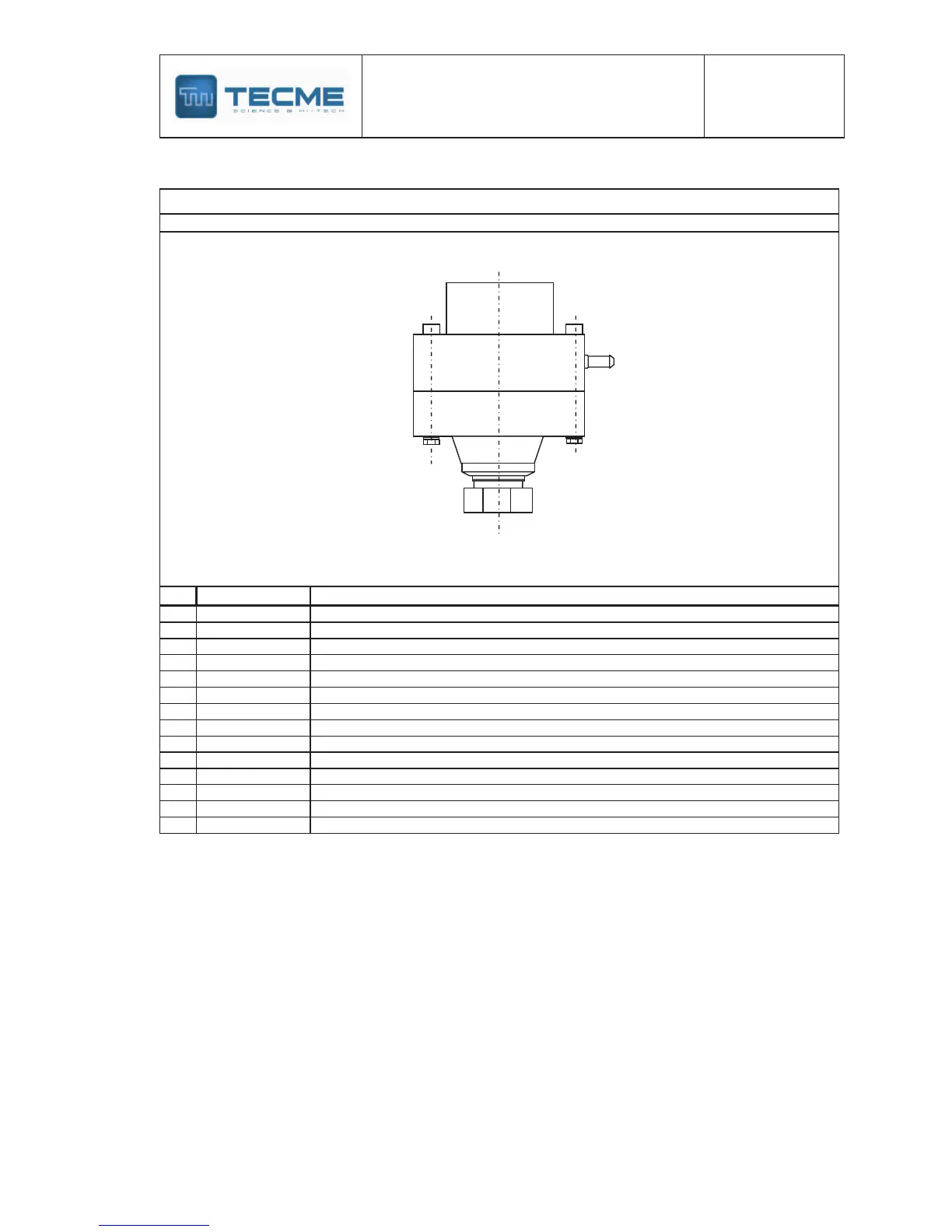

ASSEMBLY DETAILS
Code: 0554-A1V Name: 2.8Kg/cm
2
and 0.7 Kg/cm
2
Regulator’s
No.
CODE
DESCRIPTION
1
0480 M1T
ADJUSTING SCREW
2
0253 C0U
M 4x0,7 HEXAGONAL NUT
3
0560 C0A
WASHER
4
0491 M1V
REGULATOR COVER
5
1326 M1 R
ADJUSTMENT SPRING
6
0511 G0V
REGULATOR DIAPHRAGM
7
1141 M1T
M 4x0.7x7 ROUND HEAD SCREW
8
0477 M1V
REGULATOR 1st STAGE SEAT
9
0217 C0O
2020 O’RING
10
0475 M2V
CHOKE
11
0484 M1R
CELL SPRING AND REGULATOR
12
0562 C0T
M4x0.7x35 ALLEN SCREW
13
0490 M2V
REGULATOR BODY
14
0476 M1V
PIN
