from ON to OFF is fixed to 100ms.

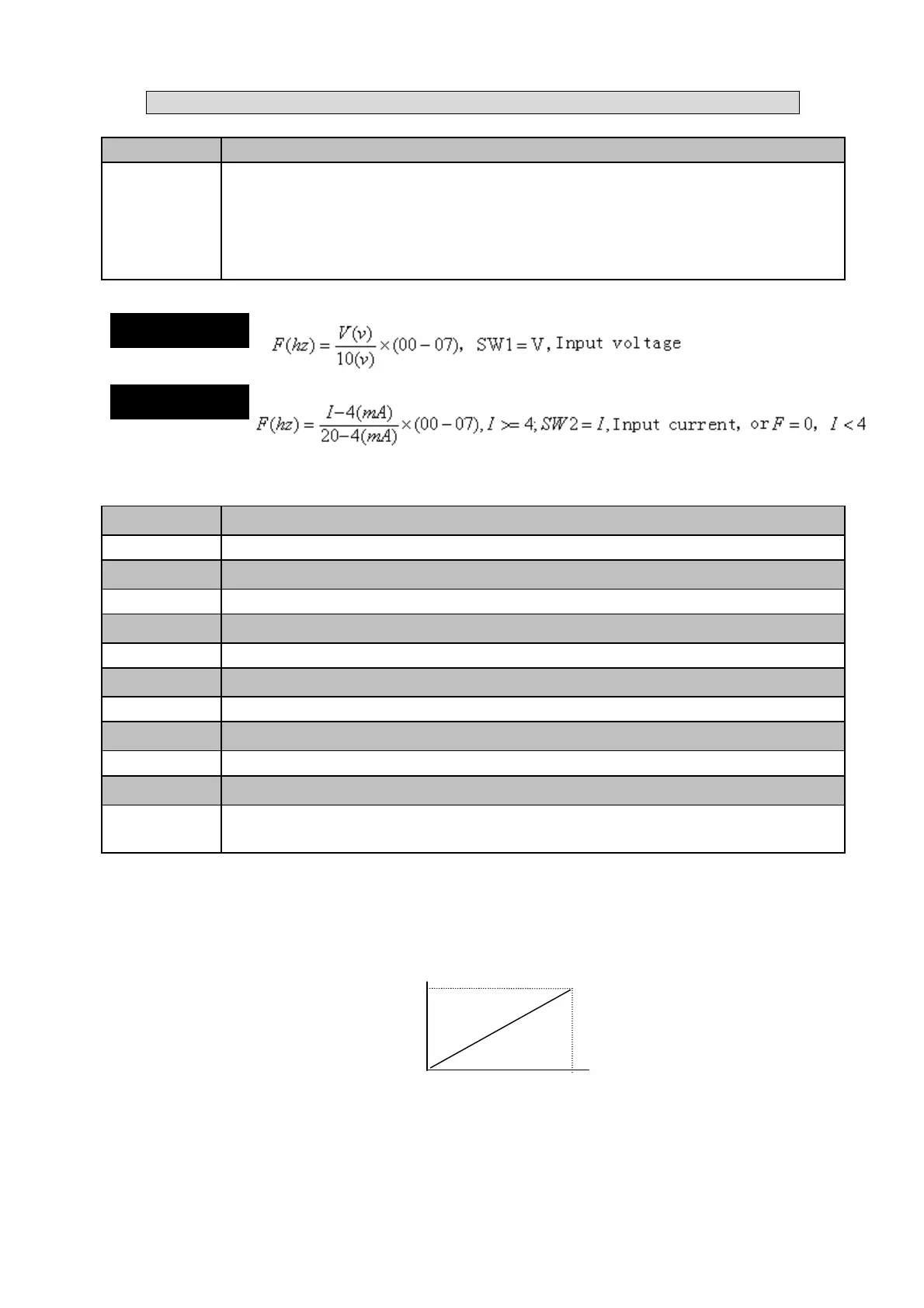

Group 02- External terminal analog signal input function group
02- 00 AVI(AIN) and ACI analog Input signal type select
range
AVI(AIN) ACI
【0】:0~10V（0~20mA） 0~20mA
【1】:0~10V（0~20mA） 4~20mA
【2】:2~10V（4~20mA） 0~20mA
【3】:2~10V（4~20mA） 4~20mA
Note：
The models 401,402,403,405 have AVI and ACI analog input, and AVI can only do voltage type
simulation nput, ACI can only carry out current analog input.
02- 01
AVI(AIN) signal verification Scan Time
range
【1~200】2msec
02- 02
AVI(AIN) Gain
range
【0 ~ 200】%
02- 03
AVI(AIN) Bias
range
【0.0 ~ 100.0】%
02- 04
AVI(AIN) Bias Selection
range
【0】： positive 【1】： Negative
02- 05
AVI(AIN) Slope
range
【0】： positive 【1】： Negative
02- 06
ACI function Select
Range
【0】： PID feedback signal（terminal ACI）
【1】： ACI Bias signal input（terminal ACI）
1. 02-06=0（PID feedback input）
When 02-06 is set 0 means the PID feedback input terminal is controlled by the setting of 09-00.
2. 02-06=1（Bias Input）
To regulate the Offset of the Keypad VR or AI1 analog input, only the signal of 0～10V（0～20 mA）or2～10V （4～
20mA ）。
V
1) 0～10V
2) 4～ 20mA
V
10
02-06=1function
0
Freq upper limit
00-07
Hz
AI1+AI2
