TECO S310+ Series User Manual

4-41
PID SLEEP MODE:
09-00=1(PID Enable)
02-06=0(PID FEEDBACK Enable)
00-05=PID setting frequency source (Target Value)
09-14: set the sleep threshold frequency, Unit: HZ
09-15: set the time for sleep delay, Unit: sec
09-16: set the wake threshold frequency, Unit: HZ
09-17: set the time for wake delay, Unit: sec
When PID output frequency is less than the sleep threshold frequency and exceeds the time of
sleep delay, the inverter will decelerate to 0 and enter PID sleep mode.
When PID output frequency is larger than the Wake threshold frequency for Wake start the

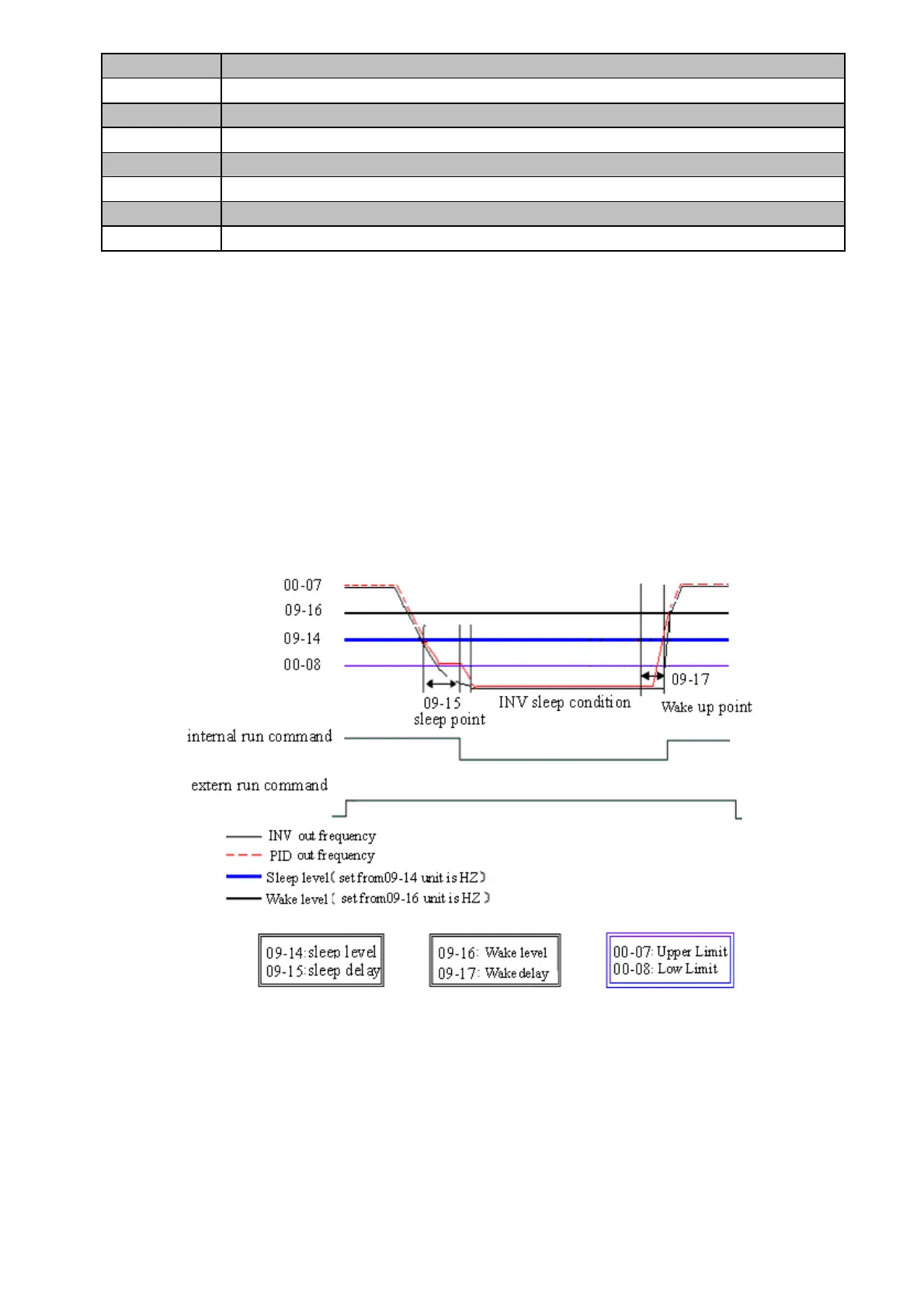

inverter will reactivate and enter PID wake mode. The time diagram is as follow:
09- 14 Sleep Frequency Level
Range
【0.00~400.00】Hz
09- 15 Sleep Function Delay Time
Range
【0.0~25.5】Hz
09- 16 Wake up frequency Level
Range
【0.00~400.00】Hz
09- 17 Wake up function Delay Time
Range
【0.0~25.5】Hz
