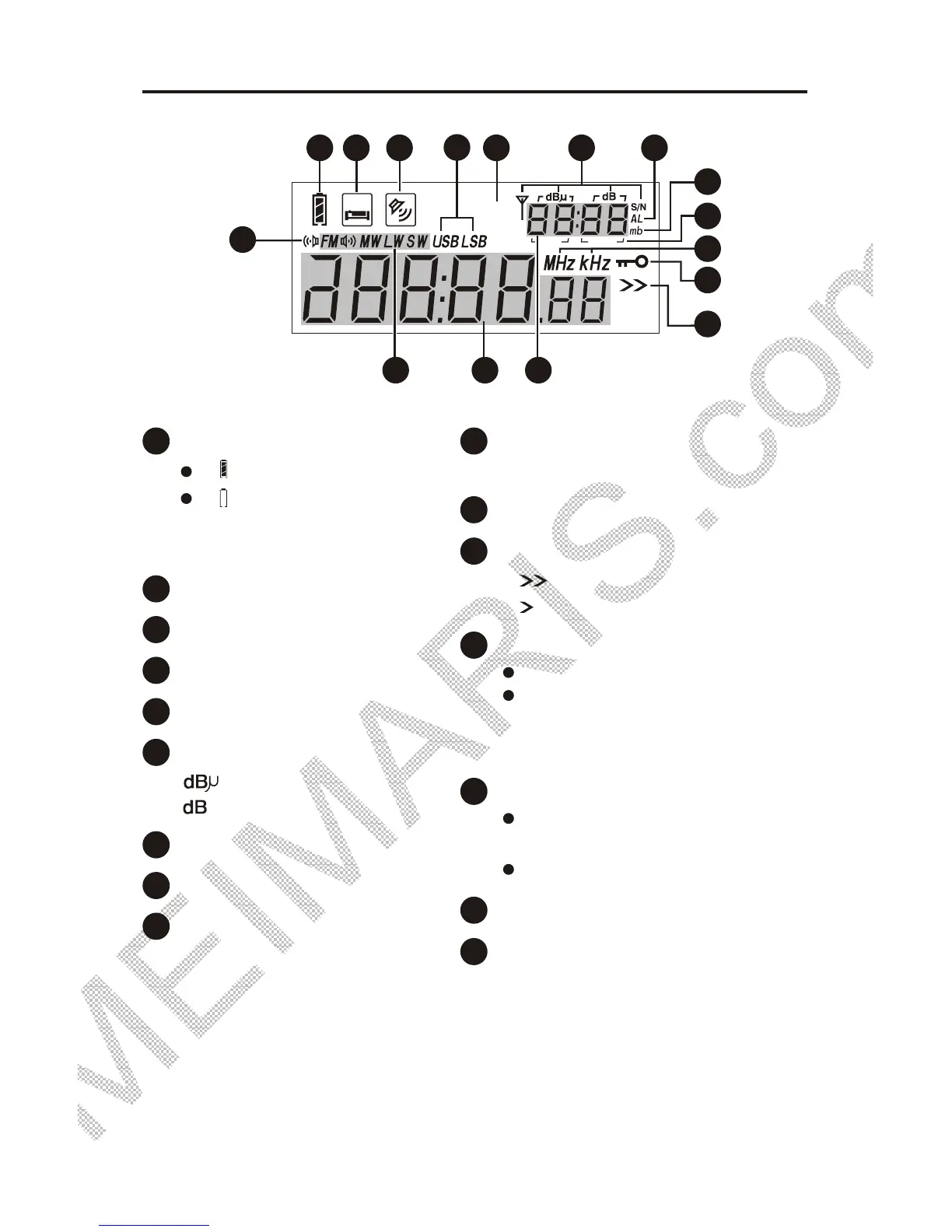

Tecsun PL-880 - LCD Symbol Description; Status Indicators; Frequency and Tuning Indicators; Memory and Band Indicators

SLEEP
PAGE PRESET
SYNC
Charge
1 2 3 5 6 7
8
9
10
11
13
16
5 PL-880
4
12
1415
Signal strength (unit: dBu)：This is the value to measure radio
reception strength; a higher value indicates a stronger reception.
SNR S/R (unit: dBu)：Signal to Noise Ratio: a higher value indicates
less background noise.
2
Sleep timer indicator
3
Alarm On / Off indicator
6
Signal indicator
: Signal strength unit
: SNR unit
Alarm time indicator (by radio only)
7
8
Shortwave meter band indicator
4
SSB indicator (USB/LSB)
Charging indicator
5
Battery power indicator
1
“ ”Full power
“ ”Almost no power,
recharging or replacement
is required.
9
PAGE: Stored page indicator
PRESET: Stored address indicator
10
kHz: Frequency unit of MW, LW and SW
MHz: Frequency unit of FM
11
Key lock indicator
12
Tuning speed indicator
“ ”Fast tuning
“ ”Slow tuning
Band indicator
15
FM stereo status indicator
16
14
Large digital display area
Radio OFF status: Time display, system
settings
Radio ON status: Radio frequency
13
Small digital display area
Radio OFF status: Radio alarm time
Radio ON status: Signal strength/SNR,
time, alarm time, stored address,
shortwave meter band
LCD SYMBOL DESCRIPTION
