2213 Operators
REAR PANEL
Refer to Figure 7 for location of item 32.
0
32
EXT
Z
AXIS Connector-Provides a means of
con-
necting
external signals to the Z-axis amplifier to
intensity modulate the crt display. Applied signals
do not affect display waveshape. Signals with fast
rise times and fall times provide the most abrupt
intensity change, and a 5-V p-p signal will produce
noticeable modulation. The Z-axis signals must be
time-related to the display to obtain a stable
present-
ation
on the crt.
REPLACE ONLY WITH SPECIFIED
TYPE
AND RATED FUSE DISCONNECT
POWER INPUT BEFORE REPLACING FUSE
GROUNDING CONDUCTOR
lOK0
POSITIVE GOING
0
32
3397-08

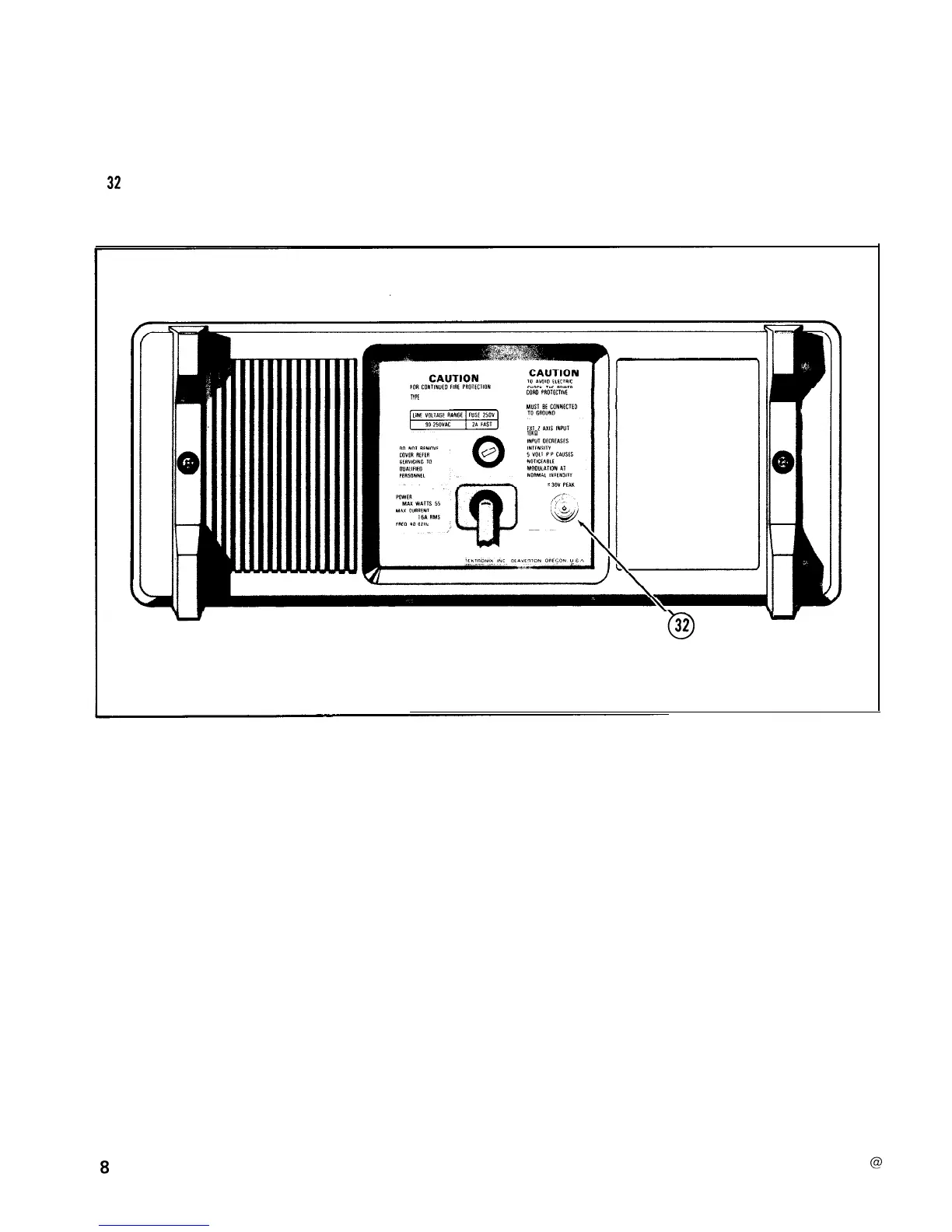

Figure 7. Rear-panel connector.
