Tektronix 2215A

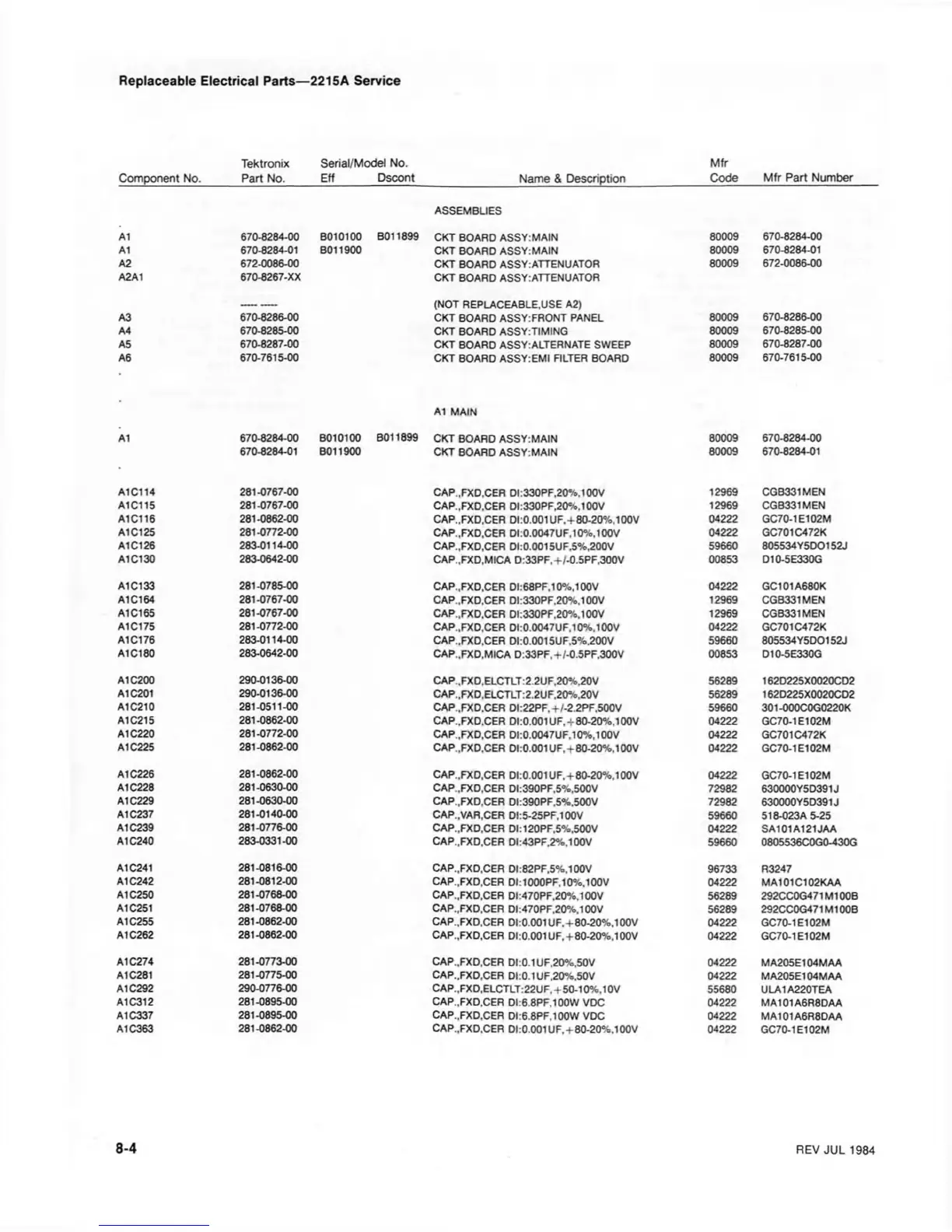

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix Serial/Model No.
Part No. Eft Dscont
Mfr
Name & Description _____________ Code Mtr Part Number
ASSEMBLIES
A1
670-8284-00
B010100 B011899 CKT BOARD ASSY:MAIN
80009 670-8284-00
A1
670-8284-01 B011900
CKT BOARD ASSY:MAIN
80009 670-8284-01
A2 672-0086-00
CKT BOARD ASSY:ATTENUATOR
80009
672-008600
A2A1 670-8267-XX
CKT BOARD ASSYrATTENUATOR
____
(NOT REPLACEABLE,USE A2)
A3
670-8286-00
CKT BOARD ASSY:FRONT PANEL
80009
670-8286-00
A4
670-8285-00
CKT BOARD ASSYrTIMING
80009
670-8285-00
A5
670-8287-00
CKT BOARD ASSY:ALTERNATE SWEEP
80009 670-8287-00
A6
670-7615-00
CKT BOARD ASSY:EMI FILTER BOARD
80009
6767615-00
A1
670-8284-00
B010100
A1 MAIN
B011899 CKT BOARD ASSY:MAIN
80009 670-8284-00
670-8284-01
B011900
CKT BOARD ASSY:MAIN
80009 670-8284-01
A1C114
281-0767-00
CAP..FXD.CER DI:330PF.20%,100V
12969
CGB331MEN
A1C115
281-0767-00
CAP..FXD.CER DI:330PF,20%,100V
12969
CGB331MEN
A1C116
281-0862-00
CAP..FXD.CER DL0.001UF,+8620%,100V
04222 GC70-1E102M
A1C125 281-0772-00
CAP..FXD.CER DI:0.0047UF.10%,100V
04222 GC701C472K
A1C126 2860114-00
CAP..FXD.CER DI:0.0015UF,5%,200V
59660
805534Y5D0152J
A1C130 283-0642-00
CAP.,FXD,MICA D:33PF, +/-0.5PF.300V
00853
D165E330G
A1C133
281-0785-00
CAP..FXD.CER DI:68PF.10%,100V
04222 GC101A680K
A1C164
281-0767-00
CAP..FXD.CER DI:330PF,20%,100V
12969 CGB331MEN
A1C165
281-0767-00
CAP..FXD.CER DI:330PF,20%.100V 12969
CGB331MEN
A1C175 281-0772-00
CAP..FXD.CER DI:0.0047UF,10%,100V
04222 GC701C472K
A1C176
2860114-00
CAP..FXD.CER DI:0.0015UF,5%,200V 59660
805534Y5DO152J
A1C180 2860642-00
CAP.,FXD,MICA D:33PF,+/-0.5PF,300V 00853 D10-5E330G
A1C200
296013600
CAP..FXD.ELCTLT :2.2UF,20%,20V
56289
162D225X0020CD2
A1C201
290-013600
CAP..FXD.ELCTLT :2.2UF,20%,20V 56289
162D225X0020CD2
A1C210
281-0511-00
CAP..FXD.CER DI:22PF,+/-2.2PF.500V
59660
301-000C0G0220K
A1C215
281-0862-00
CAP..FXD.CER Dl:0.001 UF, + 8620%, 100V
04222 GC761E102M
A1C220
281-0772-00
CAP..FXD.CER DI:0.0047UF,10%,100V 04222
GC701C472K
A1C225 281-0862-00
CAP..FXD.CER DLO.OOIUF,+8620%, 100V 04222 GC761E102M
A1C226
281-0862-00
CAP..FXD.CER DLO.OOIUF,+8620%,100V 04222 GC761E102M
A1C228
281-0630-00
CAP..FXD.CER DI:390PF,5%,500V
72982 630000Y5D391J
A1C229
281-063600
CAP..FXD.CER DI:390PF,5%,500V 72982 630000Y5D391J
A1C237
281-0140-00
CAP..VAR.CER DL5-25PF.100V 59660 516023A 625
A1C239 281-077600
CAP..FXD.CER DI:120PF,5%.500V 04222 SA101A121JAA
A1C240
2860331-00
CAP..FXD.CER DI:43PF,2%,100V 59660
0805536C0G0-430G
A1C241 281-081600
CAP..FXO.CER DI:82PF,5%,100V
96733
R3247
A1C242
281-0812-00
CAP..FXD.CER DI:1000PF,10%,100V 04222
MA101C102KAA
A1C250
281-076600
CAP..FXD.CER Dl:470PF.20%,100V
56289 292CC0G471M100B
A1C251
281-076600
CAP..FXD.CER DI:470PF,20%,100V 56289 292CC0G471M100B
A1C255
281-0862-00
CAP..FXD.CER DLO.OOIUF,+8620%,100V
04222 GC761E102M
A1C262 281-0862-00
CAP..FXD.CER DI:0.001UF, + 80-20%.100V 04222 GC761E102M
A1C274
281-077600
CAP..FXD.CER DI:0.1UF,20%,50V 04222 MA205E104MAA
A1C281
281-077600
CAP..FXD.CER DLO. 1 UF,20%,50V 04222
MA205E104MAA
A1C292
290-0776-00
CAP.,FXD,ELCTLT:22UF, + 50-10%.10V
55680 ULA1A220TEA
A1C312 281-0895-00
CAP..FXD.CER DL6.8PF.100W VDC
04222 MA101A6R8DAA
A1C337 281-0895-00
CAP..FXD.CER DL6.8PF.100W VDC
04222
MA101A6R8DAA
A1C363 281-0862-00
CAP..FXD.CER DLO.OOIUF, +8620%,100V
04222 GC70-1E102M
8-4
REV JUL 1984
