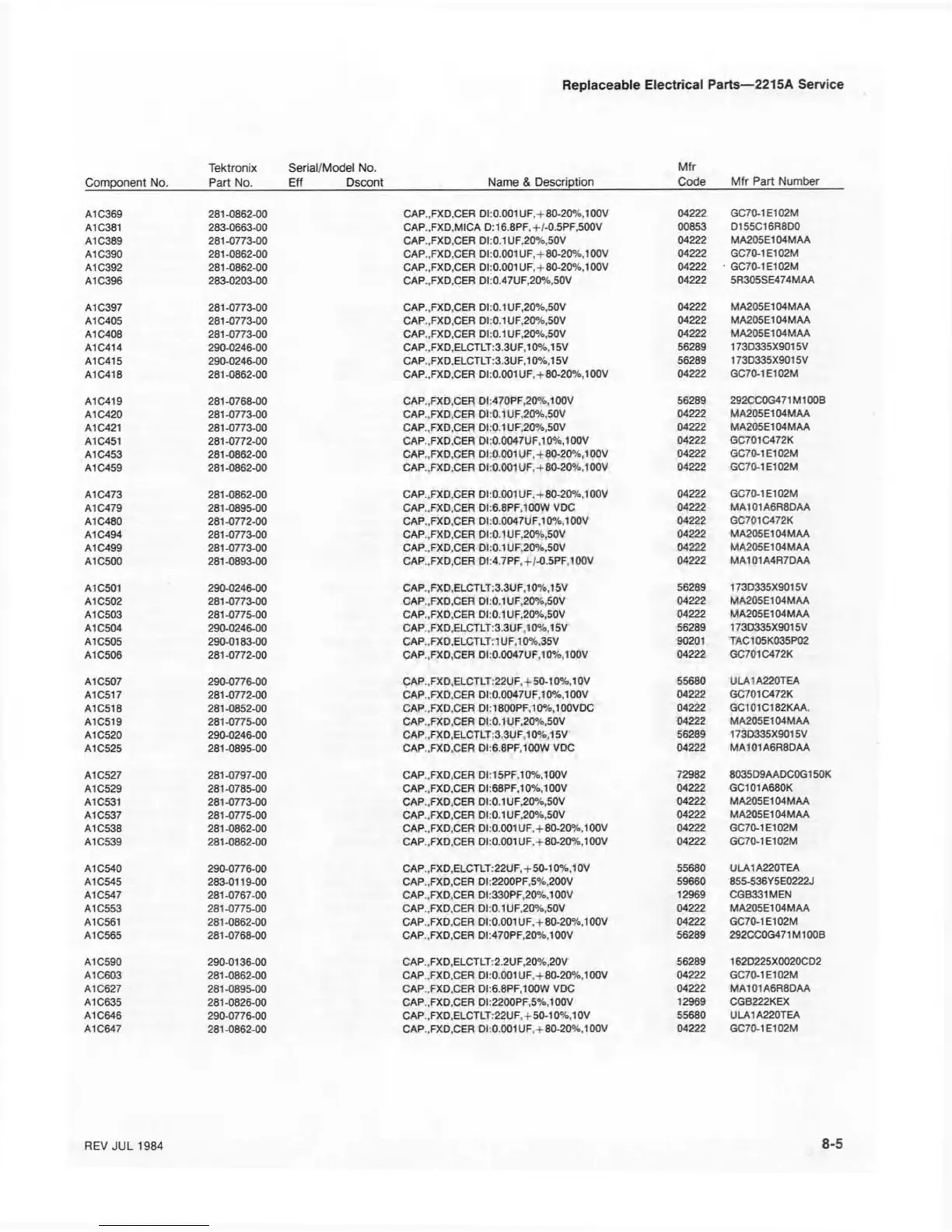

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
A1C369 281-0862-00
CAP. .FXD.CER 01:0.001 UP, + 80-20%. 100V
04222
GC70-1E102M
A1C381
283-0663-00
CAP..FXD.MICA D:16.8PF. + /-0.5PF.500V
00853
D155C16R8D0
A1C389
281-0773-00
CAP..FXD.CER DI:0.1UF,20%.50V 04222
MA205E104MAA
A1C390
281-0862-00
CAP .FXD.CER DI:0.001UF.+80-20%, 100V
04222
GC70-1E102M
A1C392
281-0862-00
CAP.,FXD.CER Dl:0.001 UF,+80-20%,100V
04222
GC70-1E102M
A1C396 283-0203-00
CAP.,FXD.CER DI:0.47UF,20%,50V
04222
5R305SE474MAA
A1C397
281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V 04222
MA205E104MAA
A1C405 281-0773-00
CAP..FXD.CER Dl:0.1 UF.20%,50V 04222
MA205E104MAA
A1C408 281-0773-00
CAP.,FXD.CER DI:0.1UF.20%.50V
04222
MA205E104MAA
A1C414
290-0246-00
CAP..FXD.ELCTLT :3.3UF,10%,15V
56289 173D335X9015V
A1C415 290-0246-00
CAP.,FXD,ELCTLT:3.3UF.10%,15V 56289
173D335X9015V
A1C418
281-0862-00
CAP..FXD.CER DI:0.001UF,+80-20%,100V
04222 GC70-1E102M
A1C419 281-0768-00
CAP.,FXD.CER DI:470PF.20%,100V 56289
292CC0G471M100B
A1C420 281-0773-00
CAP..FXD.CER Dl:0.1UF.20%.50V
04222
MA205E104MAA
A1C421
281-0773-00
CAP..FXD.CER Dl:0.1 UF.20%,50V
04222
MA205E104MAA
A1C451 281-0772-00
CAP..FXD.CER DI:0.0047UF,10%,100V 04222
GC701C472K
A1C453 281-0862-00
CAP.,FXD.CER DI:0.001UF. + 80-20%,100V 04222
GC70-1E102M
A1C459 281-0862-00
CAP.,FXD.CER Dl:0.001 UF.+80-20%,100V
04222
GC70-1E102M
A1C473 281-0862-00
CAP.,FXD.CER Dl:0.001 UF.+80-20%. 100V
04222
GC70-1E102M
A1C479 281-0895-00
CAP.,FXD.CER DI:6.8PF,100W VDC
04222
MA101A6R8DAA
A1C480 281-0772-00
CAP..FXD.CER DI:0.0047UF.10%,100V
04222 GC701C472K
A1C494
281-0773-00
CAP..FXD.CER Dl:0.1 UF.20%,50V
04222 MA205E104M AA
A1C499 281-0773-00
CAP.,FXD.CER Dl:0.1 UF.20%,50V
04222 M A205E104MAA
A1C500 281-0893-00
CAP.,FXD.CER DI:4.7PF, +/-0.5PF.100V
04222 MA101A4R7DAA
A1C501
290-0246-00
CAP.,FXD,ELCTLT:3.3UF.10%.15V 56289
173D335X9015V
A1C502 281-0773-00
CAP.,FXD.CER Dl:0.1UF,20%,50V
04222
MA205E104MAA
A1C503 281-0775-00
CAP.,FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A1C504
290-0246-00
CAP.,FXD,ELCTLT:3.3UF,10%.15V 56289
173D335X9015V
A1C505 290-0183-00
CAP„FXD,ELCTLT:1 UF,10%.35V
90201
TAC105K035P02
A1C506
281-0772-00
CAP.,FXD.CER DI:0.0047UF,10%,100V
04222 GC701C472K
A1C507
290-0776-00
CAP..FXD.ELCTLT :22UF,+50-10%.10V
55680
ULA1A220TEA
A1C517
281-0772-00
CAP.,FXD.CER DI:0.0047UF,10%,100V
04222 GC701C472K
A1C518 281-0852-00
CAP.,FXD.CER Dl: 1800PF. 10%,1 OOVDC
04222 GC101C182KAA.
A1C519
281-0775-00
CAP..FXD.CER DI:0.1UF,20%,50V 04222
MA205E104MAA
A1C520 290-0246-00
CAP..FXD,ELCTLT:3.3UF.10%,15V 56289 173D335X9015V
A1C525 281-0895-00
CAP..FXD.CER DI:6.8PF,100W VDC
04222
MA101A6R8DAA
A1C527
281-0797-00
CAP..FXD.CER Dl: 15PF.10%,100V
72982
8035D9AADCOG150K
A1C529 281-0785-00
CAP..FXD.CER DI:68PF.10%,100V 04222
GC101A680K
A1C531
281-0773-00
CAP..FXD.CER DI:0.1UF.20%.50V 04222
MA205E104MAA
A1C537 281-0775-00
CAP..FXD.CER DI:0.1UF,20%,50V 04222
MA205E104MAA
A1C538 281-0862-00
CAP..FXD.CER Dl:0.001 UF. + 80-20%,100V 04222
GC70-1E102M
A1C539
281-0862-00
CAP..FXD.CER DI:0.001UF.+80-20%.100V
04222
GC70-1E102M
A1C540
290-0776-00
CAP.,FXD,ELCTLT:22UF. + 50-10%, 10V 55680
ULA1A220TEA
A1C545 283-0119-00
CAP.,FXD.CER Dl:2200PF.5%,200V
59660
855-536Y5E0222J
A1C547
281-0767-00
CAP.,FXD.CER Dl:330PF,20%.100V
12969
CGB331MEN
A1C553 281-0775-00
CAP..FXD.CER Dl:0.1 UF.20%,50V
04222
MA205E104MAA
A1C561 281-0862-00
CAP..FXD.CER 01:0.001 UF, + 80-20%.100V 04222
GC70-1E102M
A1C565
281-0768-00
CAP..FXD.CER Dl :470PF.20%, 100V
56289
292CC0G471M100B
A1C590 290-0136-00
CAP.,FXD,ELCTLT:2.2UF,20%,20V
56289
162D225X0020CD2
A1C603 281-0862-00
CAP..FXD.CER D1:0.001UF,+80-20%.100V 04222 GC70-1E102M
A1C627
281-0895-00
CAP..FXD.CER DI:6.8PF,100W VDC
04222 MA101A6R8DAA
A1C635
281-0826-00
CAP.,FXD.CER DI:2200PF,5%,100V 12969
CGB222KEX
A1C646
290-0776-00
CAP.. FXD.ELCTLT:22UF. + 50-10%, 10V 55680
ULA1A220TEA
A1C647
281-0862-00
CAP .FXD.CER 01:0.001 UF, + 80-20%.100V
04222
GC70-1E102M
REV JUL 1984
8-5
