Tektronix 2215A

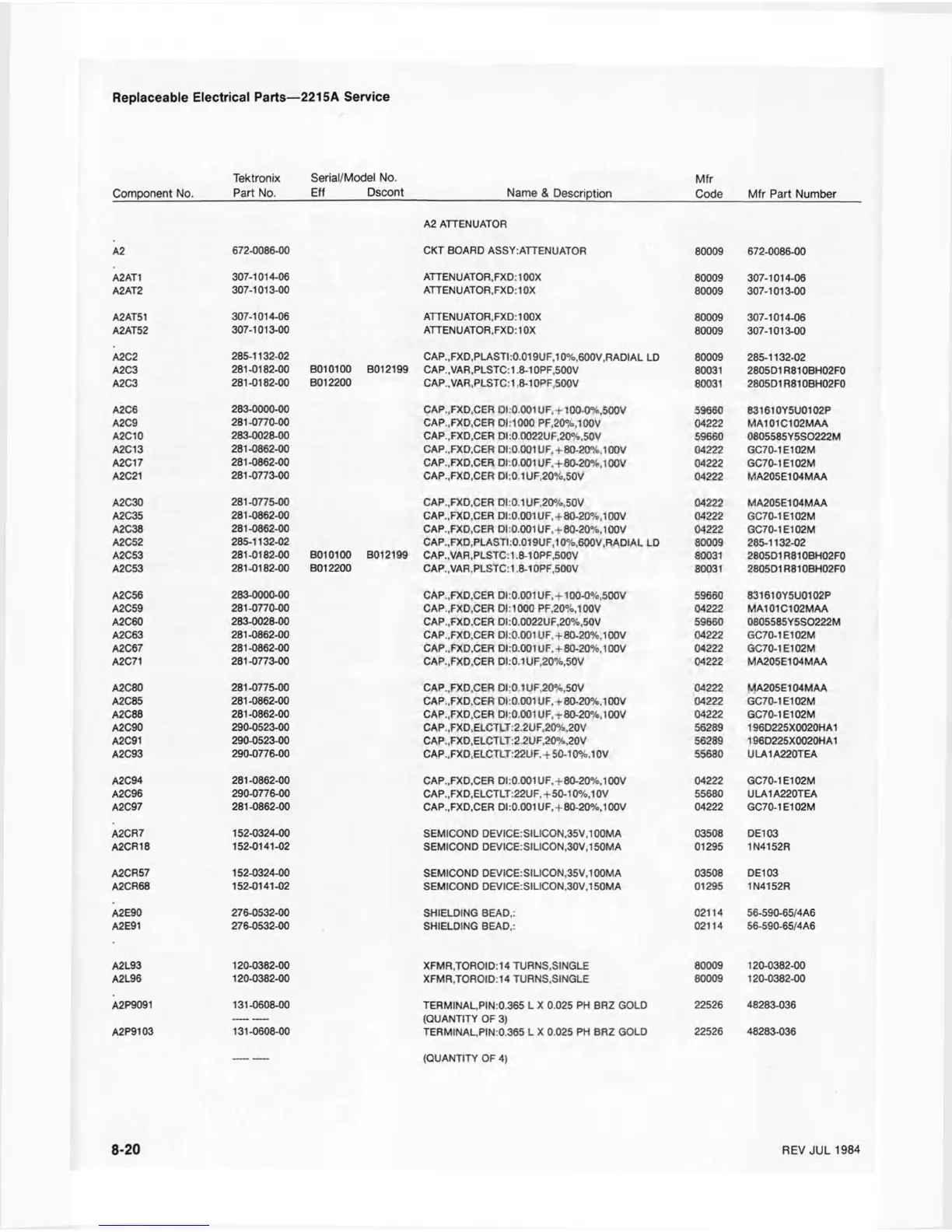

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
A2 ATTENUATOR
A2
672-0086-00
CKT BOARD ASSY:ATTENUATOR
80009 672-0086-00
A2AT1
307-1014-06 ATTENUATOR.FXD: 10OX
80009
307-1014-06
A2AT2
307-1013-00
ATTENUATOR,FXD:10X
80009
307-1013-00
A2AT51
307-1014-06
ATTENUATOR,FXD:100X
80009 307-1014-06
A2AT52
307-1013-00
ATTENUATOR.FXDtIOX
80009 307-1013-00
A2C2
285-1132-02
CAP.,FXD,PLASTI:0.019UF,10%,600V,RADIAL LD
80009
285-1132-02
A2C3
281-0182-00
B010100
B012199
CAP..VAR.PLSTC: 1.8-10PF.500V
80031
2805D1R810BH02F0
A2C3
281-0182-00 B012200
CAP.,VAR.PLSTC:1.8-10PF.500V
80031
2805D1R810BH02F0
A2C6
283-0000-00
CAP..FXD.CER DL0.001UF,-FI00-0%,500V
59660 831610Y5U0102P
A2C9
281-0770-00
CAP.,FXD,CER 01:1000 PF,20%,100V 04222 MA101C102MAA
A2C10
283-0028-00
CAP..FXD.CER DI:0.0022UF,20%,50V
59660 0805585Y5SO222M
A2C13
281-0862-00
CAP..FXD.CER DL0.001 UF. + 80-20%,100V
04222 GC70-1E102M
A2C17
281-0862-00
CAP..FXD.CER DL0.001UF,+ 80-20%,100V 04222
GC70-1E102M
A2C21
281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V 04222 M A205E104MAA
A2C30
281-0775-00
CAP..FXD.CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A2C35
281-0862-00
CAP..FXD.CER 01:0.001 UF, + 80-20%,100V 04222 GC70-1E102M
A2C38
281-0862-00
CAP..FXD.CER Dl:0.001 UF, + 80-20%, 100V
04222 GC70-1E102M
A2C52
285-1132-02
CAP ,FXD,PLASTI:0.019UF,10%,600V,RADIAL LD 80009 285-1132-02
A2C53
281-0182-00
B010100 B012199
CAP.,VAR,PLSTC: 1.8-10PF.500V
80031 2805D1R810BH02F0
A2C53
281-0182-00 B012200
CAP.,VAR,PLSTC:1 8-10PF,500V
80031 2805D1R810BH02F0
A2C56
283-0000-00
CAP..FXD.CER DL0.001 UF, +100-0%,500V 59660 831610Y5U0102P
A2C59
281-0770-00
CAP..FXD.CER DL1000 PF,20%,100V 04222 MA101C102MAA
A2C60
283-0028-00
CAP..FXD.CER DI:0.0022UF,20%,50V 59660 0805585Y5S0222M
A2C63
281-0862-00
CAP..FXD.CER Dl:0.001 UF,+ 80-20%,100V 04222 GC70-1E102M
A2C67 281-0862-00
CAP..FXD.CER DL0.001 UF, + 80-20%,100V 04222
GC70-1E102M
A2C71 281-0773-00
CAP..FXD.CER DL0.1 UF,20%,50V 04222 MA205E104MAA
A2C80 281-0775-00
CAP..FXD.CER DL0.1 UF,20%,50V
04222
M A205E104MAA
A2C85 281-0862-00
CAP..FXD.CER DL0.001UF. + 80-20%. 100V 04222 GC70-1E102M
A2C88 281-0862-00
CAP..FXD.CER DL0.001UF,+ 80-20%,100V
04222 GC70-1E102M
A2C90 290-0523-00 CAP.,FXD,ELCTLT:2.2UF.20%,20V
56289
196D225X0020H A1
A2C91
290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V
56289
196D225X0020HA1
A2C93
290-0776-00
CAP.,FXD,ELCTLT:22UF, + 50-10%,1 OV 55680 ULA1A220TEA
A2C94 281-0862-00
CAP..FXD.CER DL0.001UF,+ 80-20%,100V 04222 GC70-1E102M
A2C96 290-0776-00
CAP.,FXD,ELCTLT:22UF,+50-10%,10V 55680
ULA1A220TEA
A2C97
281-0862-00 CAP..FXD.CER 01:0.001 UF,+80-20%,100V 04222 GC70-1E102M
A2CR7 152-0324-00
SEMICOND DEVICE:SILICON,35V,1 OOMA 03508
DEI 03
A2CR18 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 01295 1N4152R
A2CRS7
152-0324-00
SEMICOND DEVICE:SILICON,35V,1 OOMA
03508 DEI 03
A2CR68 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 01295 1N4152R
A2E90
276-0532-00 SHIELDING BEAD,:
02114
56-590-65/4A6
A2E91
276-0532-00
SHIELDING BEAD,:
02114 56-590-65/4A6
A2L93 120-0382-00
XFMR.TOROID: 14 TURNS,SINGLE
80009
120-0382-00
A2L96 120-0382-00
XFMR,TOROID:14 TURNS,SINGLE
80009 120-0382-00
A2P9091
131-0608-00
TERM INAL, PIN:0.365 L X 0.025 PH BRZ GOLD
(QUANTITY OF 3)
22526 48283-036
A2P9103 131-0608-00
TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526
48283-036
(QUANTITY OF 4)
8-20 REV JUL 1984
