Tektronix 2215A

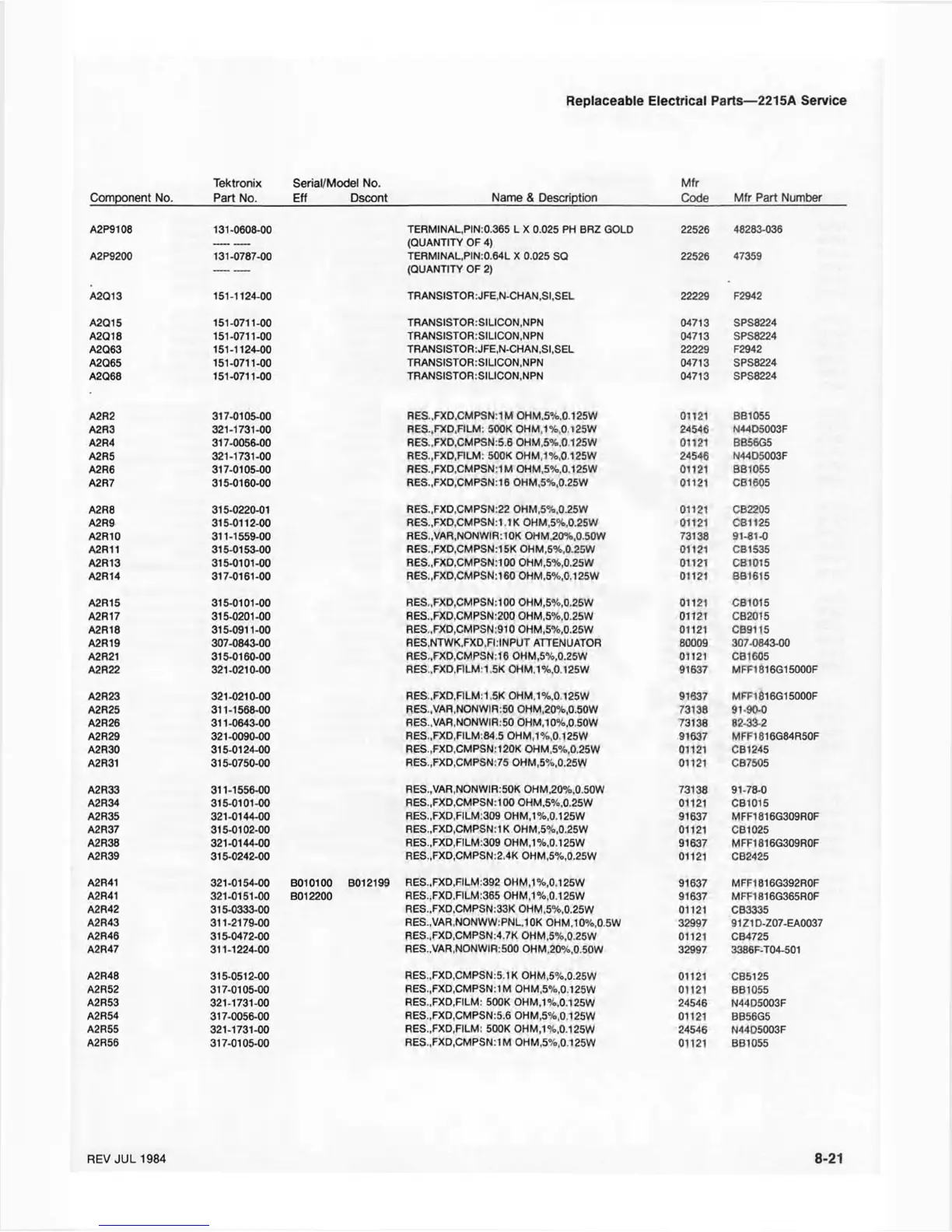

Replaceable Electrical Parts—2215A Service
Tektronix Serial/Model No. Mfr
Component No.
Part No. Eff
Dscont Name & Description
Code
Mfr Part Number
A2P9108
131-0608-00
TERMINAL,PIN',0.365 L X 0.025 PH BRZ GOLD
(QUANTITY OF 4)
22526
48283-036
A2P9200 131-0787-00
TERMINAL.PIN:0.64L X 0.025 SQ
(QUANTITY OF 2)
22526 47359
A2Q13
151-1124-00
TRANSISTOR:JFE,N-CHAN.SI,SEL
22229
F2942
A2Q15 151-0711-00
TRANSISTOR:SILICON,NPN
04713
SPS8224
A2Q18 151-0711-00
TRANS!STOR:SILICON,NPN
04713
SPS8224
A2Q63 151-1124-00
TRANSISTOR:JFE,N-CHAN,St,SEL
22229
F2942
A2Q65 151-0711-00
TRANSISTOR:SILICON,NPN
04713
SPS8224
A2Q68 151-0711-00
TRANSISTOR:SILICON,NPN
04713
SPS8224
A2R2
317-0105-00
RES.,FXD.CMPSN:1M OHM,5%,0.125W
01121
BB1055
A2R3
321-1731-00
RES.,FXD,FILM: 500K OHM,1%.0.125W
24546
N44D5003F
A2R4
317-0056-00
RES.,FXD,CMPSN:5.6 OHM,5%,0.125W
01121 BB56G5
A2R5 321-1731-00
RES.,FXD,FILM: 500K OHM,1%,0.125W
24546
N44D5003F
A2R6
317-0105-00
RES.,FXD,CMPSN:1M OHM,5%,0.125W
01121 BB1055
A2R7
315-0160-00
RES.,FXD,CMPSN:16 OHM,5%,0.25W
01121
CB1605
A2R8
315-0220-01
RES.,FXD,CMPSN:22 OHM,5%,0.25W
01121
CB2205
A2R9 315-0112-00
RES.,FXD,CMPSN:1.1K OHM,5%,0.25W
01121
CB1125
A2R10
311-1559-00
RES.,VAR,NONWIR:10K OHM,20%,0.50W
73138 91-81-0
A2R11
315-0153-00
RES.,FXD,CMPSN:15K OHM,5%.0.25W
01121
CB1535
A2R13
315-0101-00
RES.,FXD.CMPSN:100 OHM,5%,0.25W
01121 CB1015
A2R14
317-0161-00
RES.,FXD,CMPSN:160 OHM.5%,0.125W
01121 BB1615
A2R15
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
A2R17
315-0201-00
RES.,FXD,CMPSN:200 OHM,5%,0.25W
01121
CB2015
A2R18 315-0911-00
RES.,FXD,CMPSN:910 OHM,5%,0.25W
01121 CB9115
A2R19 307-0843-00
RES,NTWK,FXD,FI:INPUT ATTENUATOR
80009
307-0843-00
A2R21
315-0160-00
RES..FXD.CMPSN: 16 OHM,5%,0.25W
01121 CB1605
A2R22 321-0210-00
RES.,FXD,FILM:1.5K OHM,1%,0.125W
91637 MFF1816G15000F
A2R23
321-0210-00
RES.,FXD,FILM:1.5K OHM,1%,0.125W
91637
MFF1816G15000F
A2R25
311-1568-00
RES.,VAR,NONWIR:50 OHM,20%,0.50W
73138
91-90-0
A2R26 311-0643-00
RES.,VAR,NONWIR:50 OHM,10%,0.50W
73138 82-33-2
A2R29 321-0090-00
RES.,FXD,FILM:84.5 OHM,1%,0.125W
91637
MFF1816G84R50F
A2R30
315-0124-00
RES.,FXD,CMPSN:120K OHM,5%,0.25W
01121
CB1245
A2R31 315-0750-00
RES.,FXD,CMPSN:75 OHM,5%,0.25W
01121 CB7505
A2R33 311-1556-00
RES..VAR,NONWIR:50K OHM,20%,0.50W
73138
91-78-0
A2R34
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
A2R35
321-0144-00
RES.,FXD,FILM:309 OHM,1%,0.125W
91637
MFF1816G309R0F
A2R37
315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121 CB1025
A2R38
321-0144-00
RES.,FXD,FILM:309 OHM.1%,0.125W
91637 MFF1816G309R0F
A2R39
315-0242-00
RES.,FXD,CMPSN:2.4K OHM,5%,0.25W
01121
CB2425
A2R41
321-0154-00 B010100
B012199 RES.,FXD,FILM:392 OHM,1%,0.125W
91637
MFF1816G392R0F
A2R41
321-0151-00 B012200
RES.,FXD.FILM:365 OHM,1%,0.125W
91637
MFF1816G365R0F
A2R42
315-0333-00
RES.,FXD,CMPSN:33K OHM,5%,0.25W
01121 CB3335
A2R43
311-2179-00
RES.,VAR.NONWW:PNL,10K OHM,10%.0.5W
32997 9121D-Z07-EA0037
A2R46
315-0472-00
RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
A2R47
311-1224-00
RES.,VAR,NONWIR:500 OHM,20%,0.50W
32997 3386F-T04-501
A2R48
315-0512-00
RES.,FXD,CMPSN:5.1 K OHM,5%,0.25W
01121
CB5125
A2R52
317-0105-00
RES..FXD.CMPSN: 1M OHM,5%,0.125W
01121 BB1055
A2R53
321-1731-00
RES..FXD.FILM: 500K OHM,1%,0.125W
24546 N44D5003F
A2R54
317-0056-00
RES.,FXD,CMPSN:5.6 OHM,5%,0.125W
01121 BB56G5
A2R55
321-1731-00
RES.,FXD,FILM: 500K OHM,1%,0.125W
24546
N44D5003F
A2R56
317-0105-00
RES..FXD.CMPSN: 1M OHM,5%,0.125W
01121 BB1055
REV JUL 1984
8-21
