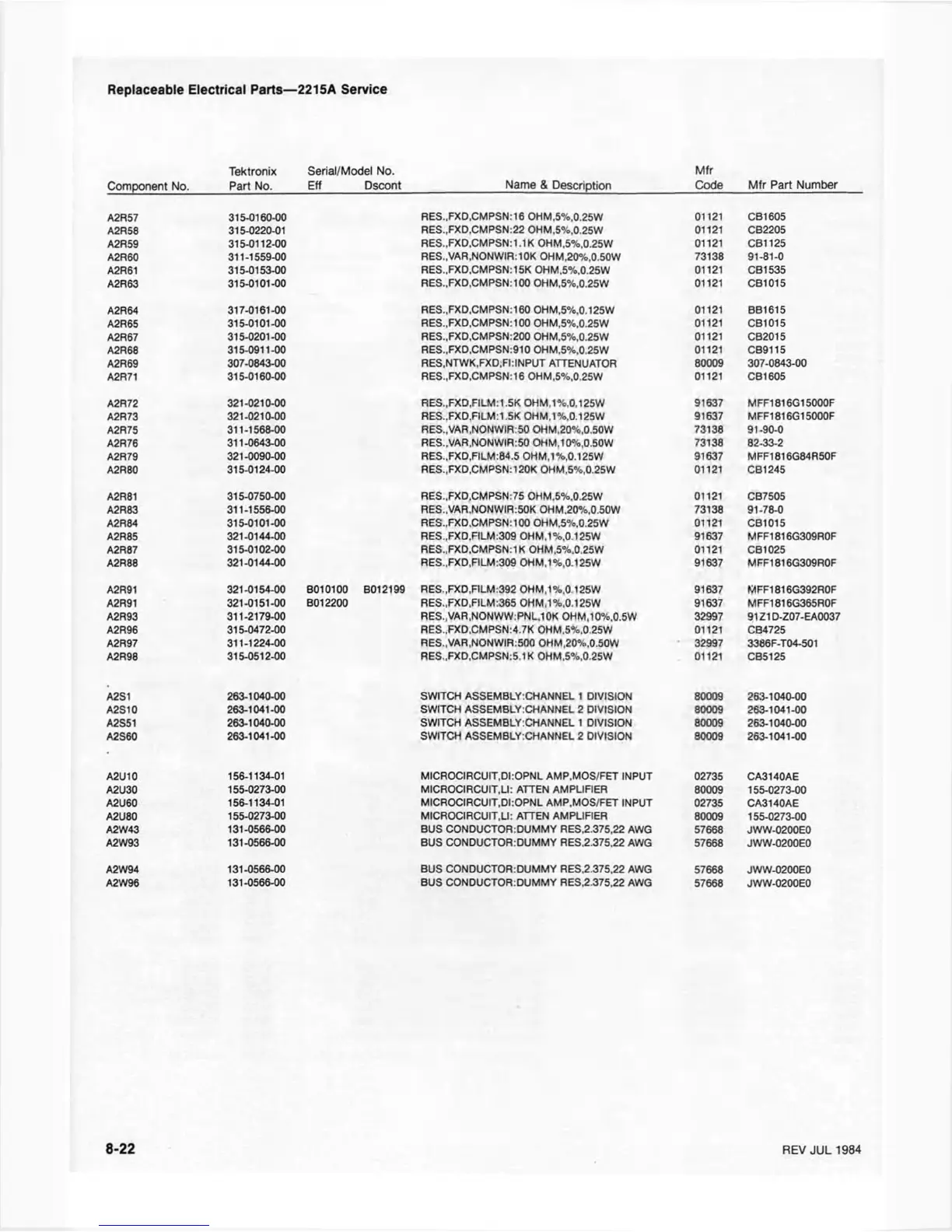

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont Name & Description
Mfr
Code
Mfr Part Number
A2R57 315-0160-00
RES.,FXD,CMPSN:16 OHM,5%,0.25W 01121
CB1605
A2R58 315-0220-01
RES.,FXD.CMPSN:22 OHM,5%.0.25W 01121 CB2205
A2R59
315-0112-00
RES.,FXD,CMPSN:1.1K OHM,5%,0.25W
01121 CB1125
A2R60
311-1559-00
RES.,VAR,NONWIR:10K OHM,20%,0.50W 73138
91-81-0
A2R61
315-0153-00
RES.,FXD,CMPSN:15K OHM.5%.0.25W 01121
CB1535
A2R63
315-0101-00 RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121 CB1015
A2R64
317-0161-00
RES..FXD.CMPSN: 160 OHM,5%,0.125W
01121 BB1615
A2R65
315-0101-00 RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
A2R67
315-0201-00 RES..FXD.CMPSN:200 OHM,5%.0.25W
01121
CB2015
A2R68
315-0911-00 RES.,FXD,CMPSN:910 OHM,5%,0.25W 01121 CB9115
A2R69
307-0843-00 RES,NTWK,FXD;FI:INPUT ATTENUATOR 80009 307-0843-00
A2R71
315-0160-00
RES.,FXD,CMPSN:16 OHM.5%.0.25W 01121
CB1605
A2R72
321-0210-00
RES.,FXD,FILM: 1,5K OHM.1%,0.125W 91637
MFF1816G15000F
A2R73
321-0210-00
RES.,FXD,FILM:1.5K OHM.1%,0.125W 91637 MFF1816G15000F
A2R75
311-1568-00
RES.,VAR,NONWIR:50 OHM,20%,0.50W 73138
91-90-0
A2R76
311-0643-00 RES.,VAR,NONWIR:50 OHM,10%,0.50W 73138 82-33-2
A2R79
321-0090-00 RES.,FXD,FILM:84.5 OHM,1%,0.125W
91637 MFF1816G84R50F
A2R80
315-0124-00 RES.,FXD,CMPSN:120K OHM,5%,0.25W 01121
CB1245
A2R81
315-0750-00 RES.,FXD,CMPSN:75 OHM,5%,0.25W
01121
CB7505
A2R83
311-1556-00
RES.,VAR,NONWIR:50K OHM,20%,0.50W
73138 91-78-0
A2R84
315-0101-00 RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121
CB1015
A2R85
321-0144-00
RES.,FXD,FILM:309 OHM,1%,0.125W 91637 MFF1816G309R0F
A2R87 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121
CB1025
A2R88
321-0144-00
RES.,FXD,FILM:309 OHM,1%,0.125W 91637
MFF1816G309R0F
A2R91 321-0154-00
B010100
B012199 RES..FXD,FILM:392 OHM,1%,0.125W 91637 MFF1816G392R0F
A2R91
321-0151-00
B012200 RES.,FXD,FILM:365 OHM,1%,0.125W 91637
MFF1816G365R0F
A2R93
311-2179-00 RES.,VAR,NONWW:PNL,10K OHM.10%,0.5W 32997 91Z1D-Z07-EA0037
A2R96
315-0472-00 RES.,FXD,CMPSN:4.7K OHM.5%.0.25W 01121
CB4725
A2R97 311-1224-00 RES.,VAR.NONWIR:500 OHM,20%.0.50W
32997
3386F-T04-501
A2R98
315-0512-00 RES.,FXD,CMPSN:5.1K OHM,5%,0.25W
01121 CB5125
A2S1
263-1040-00 SWITCH ASSEMBLY:CHANNEL 1 DIVISION
80009 263-1040-00
A2S10
263-1041-00 SWITCH ASSEMBLY:CHANNEL 2 DIVISION
80009 263-1041-00
A2S51
263-1040-00 SWITCH ASSEMBLYrCHANNEL 1 DIVISION
80009 263-1040-00
A2S60
263-1041-00 SWITCH ASSEMBLY:CHANNEL 2 DIVISION
80009 263-1041-00
A2U10
156-1134-01 MICROCIRCUIT,DLOPNL AMP.MOS/FET INPUT
02735 CA3140AE
A2U30
155-0273-00 MICROCIRCUIT,LI: ATTEN AMPLIFIER
80009
155-0273-00
A2U60
156-1134-01
MICROCIRCUIT,DLOPNL AMP.MOS/FET INPUT
02735 CA3140AE
A2U80
155-0273-00 MICROCIRCUIT.LI: ATTEN AMPLIFIER
80009 155-0273-00
A2W43
131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668 JWW-0200E0
A2W93
131-0566-00 BUS CONDUCTOR:DUMMY RES.2.375,22 AWG
57668 JWW-020OE0
A2W94
131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668 JWW-0200E0
A2W96
131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668 JWW-0200E0
