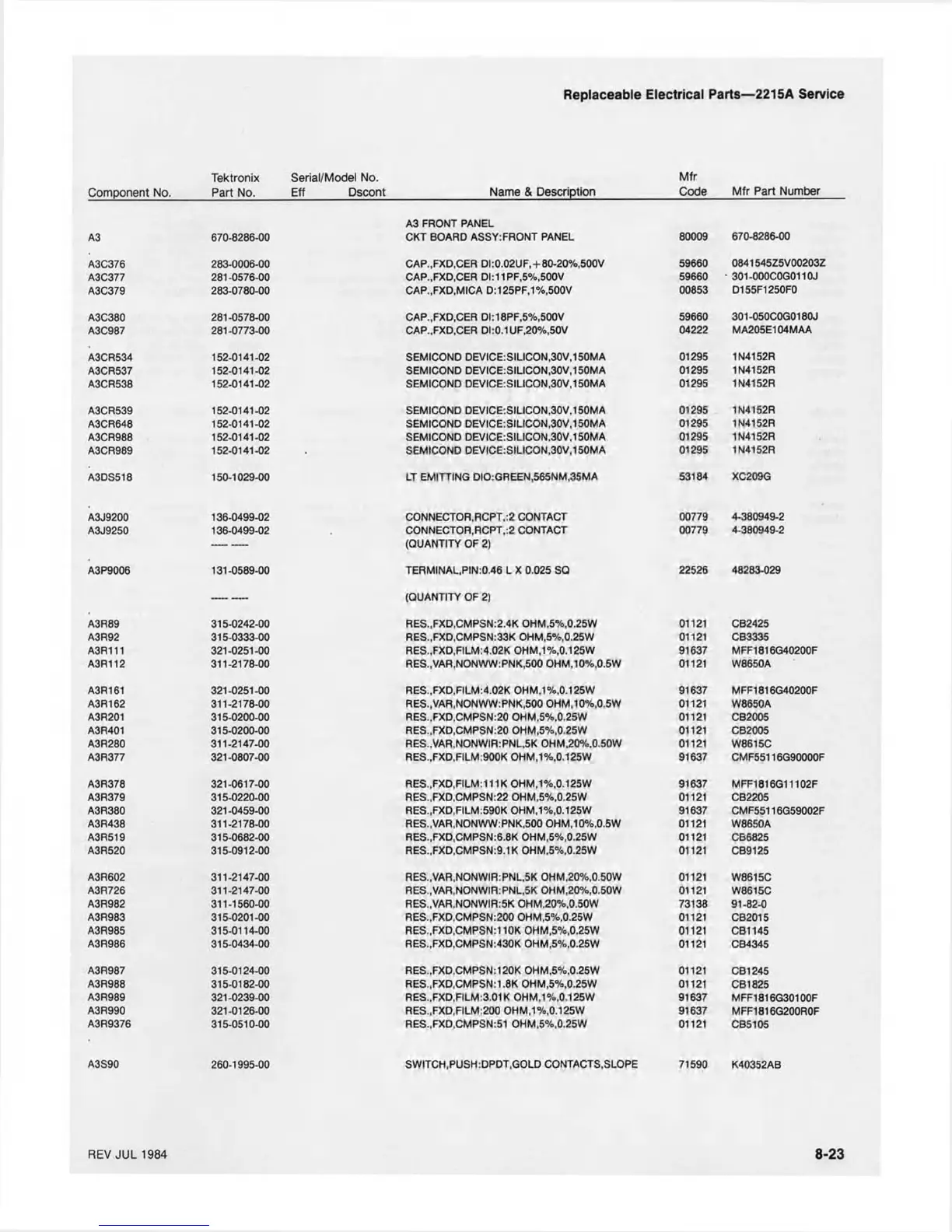

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
A3 FRONT PANEL
A3
670-8286-00
CKT BOARD ASSYtFRONT PANEL 80009
670-8286-00
A3C376
283-0006-00
CAP.,FXD,CER DI:0.02UF,+ 80-20%,500V 59660
0841545Z5V00203Z
A3C377 281-0576-00
CAP..FXD.CER DI:11PF,5%,500V 59660
• 301 -OOOCOGO110J
A3C379 283-0780-00
CAP.,FXD,MICA D:125PF.1 %,500V 00853
D155F1250F0
A3C380
281-0578-00
CAP..FXD.CER DI:18PF,5%,500V
59660 301-050COG0180J
A3C987 281-0773-00
CAP..FXD.CER Dl:0.1 UF,20%,50V 04222
MA205E104MAA
A3CR534 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 01295
1N4152R
A3CR537 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 01295
1N4152R
A3CR538
152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 01295
1N4152R
A3CR539
152-0141-02
SEMICOND DEVICE:SILICON,30V, 150MA 01295
1N4152R
A3CR648 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 01295
1N4152R
A3CR988
152-0141-02
SEMICOND DEVICE:SILICON,30V.150MA 01295 1N4152R
A3CR989
152-0141-02
•
SEMICOND DEVICE:SILICON,30V,150MA 01295
1N4152R
A3DS518 150-1029-00
LT EMITTING DIO:GREEN,565NM,35MA
53184
XC209G
A3J9200
136-0499-02 CONNECTOR,RCPT,:2 CONTACT
00779 4-380949-2
A3J9250 136-0499-02
CONNECTOR,RCPT,:2 CONTACT
(QUANTITY OF 2)
00779 4-380949-2
A3P9006
131-0589-00 TERMINAL,PIN:0.46 L X 0.025 SQ
22526 48283-029
—
(QUANTITY OF 2)
A3R89 315-0242-00
RES.,FXD,CMPSN:2.4K OHM.5%,0.25W
01121 CB2425
A3R92
315-0333-00
RES.,FXD,CMPSN:33K OHM,5%,0.25W 01121 CB3335
A3R111 321-0251-00
RES.,FXD,FILM:4.02K OHM,1%,0.125W 91637 MFF1816G40200F
A3R112 311-2178-00 RES.,VAR,NONWW:PNK,500 OHM,10%,0.5W
01121 W8650A
A3R161 321-0251-00
RES.,FXD,FILM:4.02K OHM,1%,0.125W
91637 MFF1816G40200F
A3R162 311-2178-00 RES.,VAR,NONWW:PNK,500 OHM,10%,0.5W
01121 W8650A
A3R201 315-0200-00
RES.,FXD,CMPSN:20 OHM,5%,0.25W 01121
CB2005
A3R401 315-0200-00
RES.,FXD,CMPSN:20 OHM,5%,0.25W
01121
CB2005
A3R280
311-2147-00
RES.,VAR,NONWIR:PNL,5K OHM,20%,0.50W 01121 W8615C
A3R377 321-0807-00 RES.,FXD,FILM:900K OHM,1%,0.125W
91637
CMF55116G90000F
A3R378 321-0617-00
RES.,FXD,FILM:111K OHM,1%,0.125W 91637
MFF1816G11102F
A3R379 315-0220-00
RES.,FXD,CMPSN:22 OHM,5%,0.25W 01121
CB2205
A3R380
321-0459-00
RES.,FXD,FILM:590K OHM,1%,0.125W
91637
CMF55116G59002F
A3R438 311-2178-00
RES.,VAR,NONWW:PNK,500 OHM,10%,0.5W 01121 W8650A
A3R519 315-0682-00
RES.,FXD,CMPSN:6.8K OHM,5%,0.25W 01121
CB6825
A3R520 315-0912-00
RES.,FXD,CMPSN:9.1K OHM,5%,0.25W 01121
CB9125
A3R602 311-2147-00
RES.,VAR,NONWIR:PNL,5K OHM,20%,0.50W
01121
W8615C
A3R726 311-2147-00
RES.,VAR,NONWIR:PNL,5K OHM,20%,0.50W
01121 W8615C
A3R982
311-1560-00
RES.,VAR,NONWIR:5K OHM,20%,0.50W
73138
91-82-0
A3R983 315-0201-00
RES.,FXD,CMPSN:200 OHM,5%,0.25W 01121
CB2015
A3R985 315-0114-00
RES.,FXD,CMPSN:110K OHM,5%,0.25W
01121
CB1145
A3R986 315-0434-00
RES.,FXD,CMPSN:430K OHM,5%,0.25W
01121
CB4345
A3R987
315-0124-00
RES.,FXD,CMPSN:120K OHM,5%,0.25W
01121
CB1245
A3R988
315-0182-00
RES.,FXD,CMPSN:1.8K OHM,5%,0.25W 01121
CB1825
A3R989
321-0239-00
RES.,FXD,FILM:3.01 K OHM,1%,0.125W 91637
MFF1816G30100F
A3R990
321-0126-00
RES.,FXD,FILM:200 OHM,1%,0.125W 91637
MFF1816G200R0F
A3R9376 315-0510-00 RES.,FXD,CMPSN:51 OHM,5%,0.25W 01121
CB5105
A3S90
260-1995-00
SWITCH,PUSH:DPDT,GOLD CONTACTS,SLOPE
71590
K40352AB
REV JUL 1984
8-23
