Tektronix 2215A User Manual

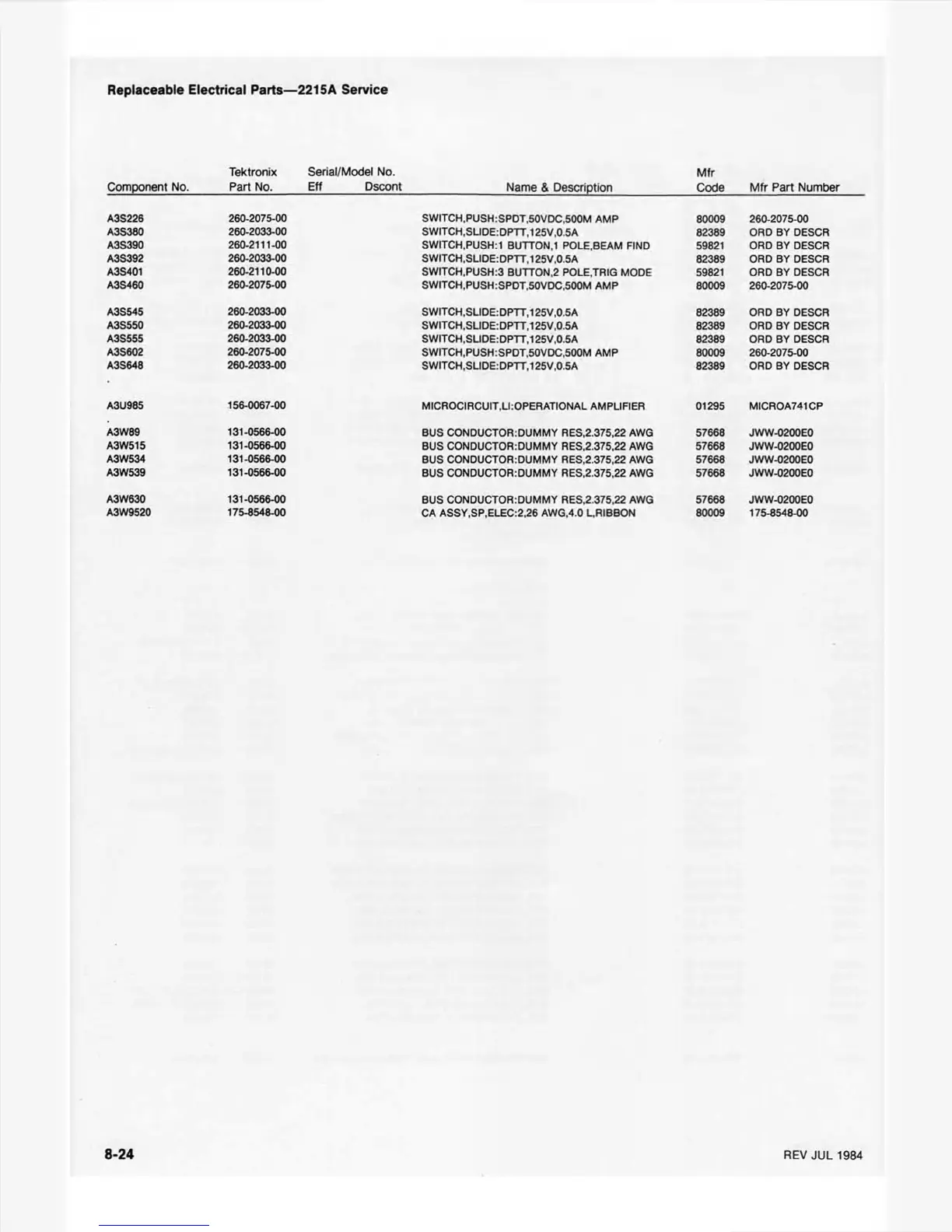

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
A3S226 260-2075-00
SWITCH,PUSH:SPDT.50VDC.500M AMP 80009 260-2075-00
A3S380
260-2033-00
SWITCH,SUDE:DPTT,125V,0.5A
82389
ORD BY DESCR
A3S390
260-2111-00
SWITCH,PUSH:1 BUTTON,1 POLE,BEAM FIND 59821 ORD BY DESCR
A3S392 260-2033-00
SWITCH,SLIDEtDPTT,125V,0.5A 82389
ORD BY DESCR
A3S401
260-2110-00
SWITCH,PUSH:3 BUTTON,2 POLE,TRIG MODE 59821 ORD BY DESCR
A3S460
260-2075-00
SWITCH,PUSH:SPDT,50VDC,500M AMP
80009 260-2075-00
A3S545
260-2033-00
SWITCH,SLIDE:DPTT,125V,0.5A
82389
ORD BY DESCR
A3S550
260-2033-00
SWITCH, SLIDE:DPTT, 125V, 0.5A 82389 ORD BY DESCR
A3S555
260-2033-00
SWITCH,SLIDE:DPTT,125V,0.5A 82389 ORD BY DESCR
A3S602 260-2075-00
SWITCH,PUSH:SPDT,50VDC,500M AMP 80009 260-2075-00
A3S648 260-2033-00
SWITCH,SUDE:DPTT,125V,0.5A 82389
ORD BY DESCR
A3U985 156-0067-00
MICROCIRCUIT,LLOPERATIONAL AMPLIFIER 01295 MICROA741CP
A3W89 131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668 JWW-0200E0
A3W515 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668
JWW-0200E0
A3W534
131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668
JWW-0200E0
A3W539 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668
JWW-0200EO
A3W630 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 57668 JWW-0200EO
A3W9520 175-8548-00
CA ASSY,SP,ELEC:2,26 AWG,4.0 L.RIBBON
80009
175-8548-00
8-24
REV JUL 1984
