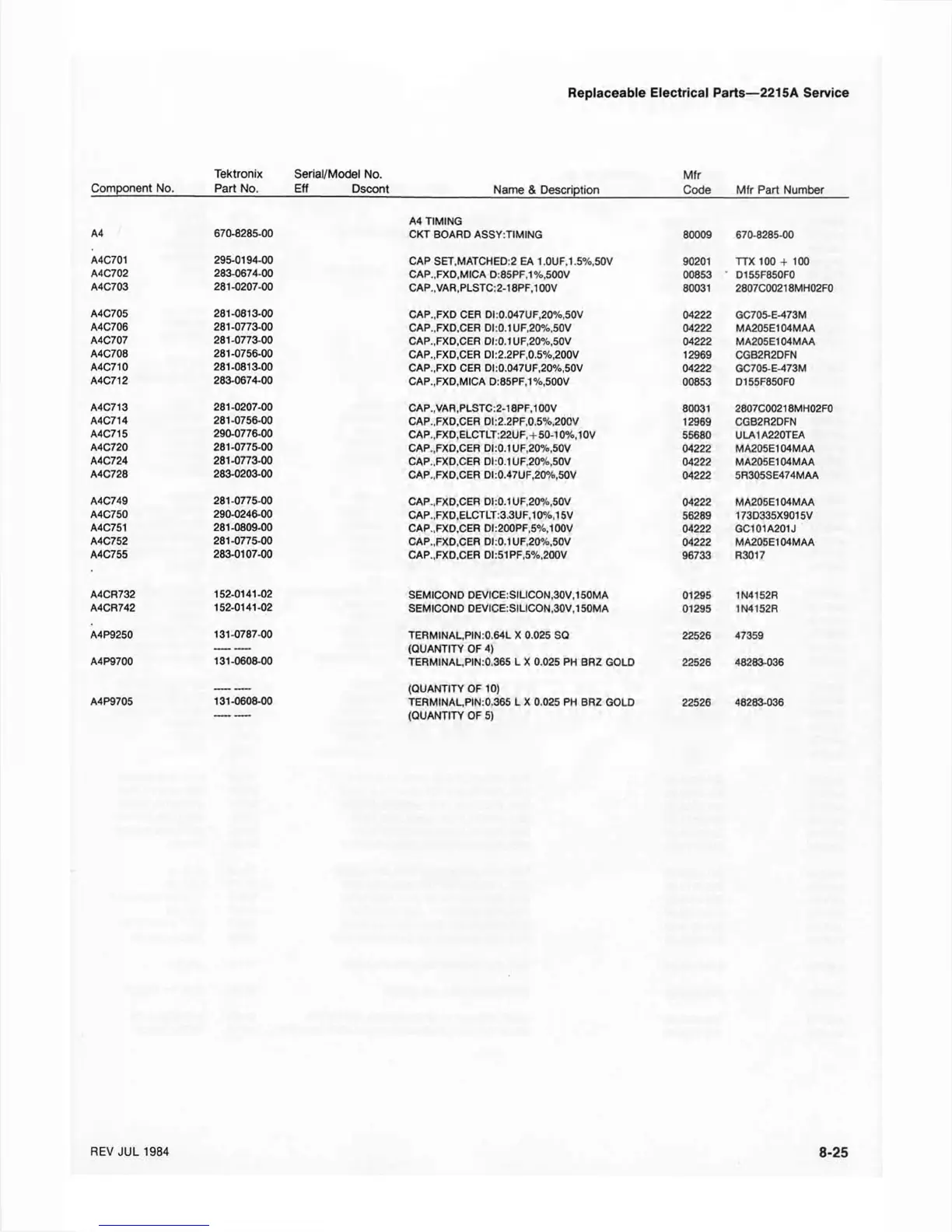

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mtr
Code Mfr Part Number
A4 TIMING
A4
670-8285-00
CKT BOARD ASSY:TIMING 80009 670-8285-00
A4C701 295-0194-00
CAP SET,MATCHED:2 EA 1.0UF,1.5%,50V
90201 TTX 100 + 100
A4C702 283-0674-00
CAP.,FXD,MICA D:85PF.1%,500V 00853 D155F850F0
A4C703 281-0207-00
CAP.,VAR,PLSTC:2-18PF,100V
80031 2807C00218MH02F0
A4C705 281-0813-00
CAP..FXD CER DI:0.047UF,20%,50V 04222 GC705-E-473M
A4C706
281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V
04222 M A205E104M AA
A4C707 281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A4C708 281-0756-00
CAP.,FXD,CER DI:2.2PF,0.5%,200V
12969
CGB2R2DFN
A4C710
281-0813-00
CAP..FXD CER DI:0.047UF,20%,50V 04222 GC705-E-473M
A4C712 283-0674-00
CAP.,FXD,MICA D:85PF,1%,500V
00853
D155F850F0
A4C713
281-0207-00
CAP.,VAR,PLSTC:2-18PF,100V
80031 2807C00218MH02F0
A4C714
281-0756-00
CAP.,FXD,CER DI:2.2PF,0.5%,200V
12969
CGB2R2DFN
A4C715
290-0776-00
CAP., FXD, ELCTLT:22UF, +50-10%, 10V
55680
ULA1A220TEA
A4C720 281-0775-00
CAP.,FXD,CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A4C724 281-0773-00
CAP.,FXD,CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A4C728
283-0203-00
CAP..FXD.CER DI:0.47UF,20%,50V
04222 5R305SE474MAA
A4C749
281-0775-00
CAP.,FXD,CER DI:0.1UF,20%,50V
04222
MA205E104MAA
A4C750
290-0246-00
CAP.,FXD,ELCTLT:3.3UF,10%,15V
56289 173D335X9015V
A4C751
281-0809-00
CAP.,FXD.CER DI:200PF,5%,100V
04222 GC101A201J
A4C752
281-0775-00
CAP.,FXD,CER DI:0.1UF,20%,50V
04222
MA205E104M AA
A4C755
283-0107-00
CAP..FXD.CER Dl:51 PF,5%,200V
96733
R3017
A4CR732
152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA
01295
1N4152R
A4CR742
152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA
01295 1N4152R
A4P9250
131-0787-00
TERMINAL,PIN:0.64L X 0.025 SQ
(QUANTITY OF 4)
22526 47359
A4P9700
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
(QUANTITY OF 10)
22526 48283-036
A4P9705
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
(QUANTITY OF 5)
22526 48283-036
REV JUL 1984
8-25
To Next Page
