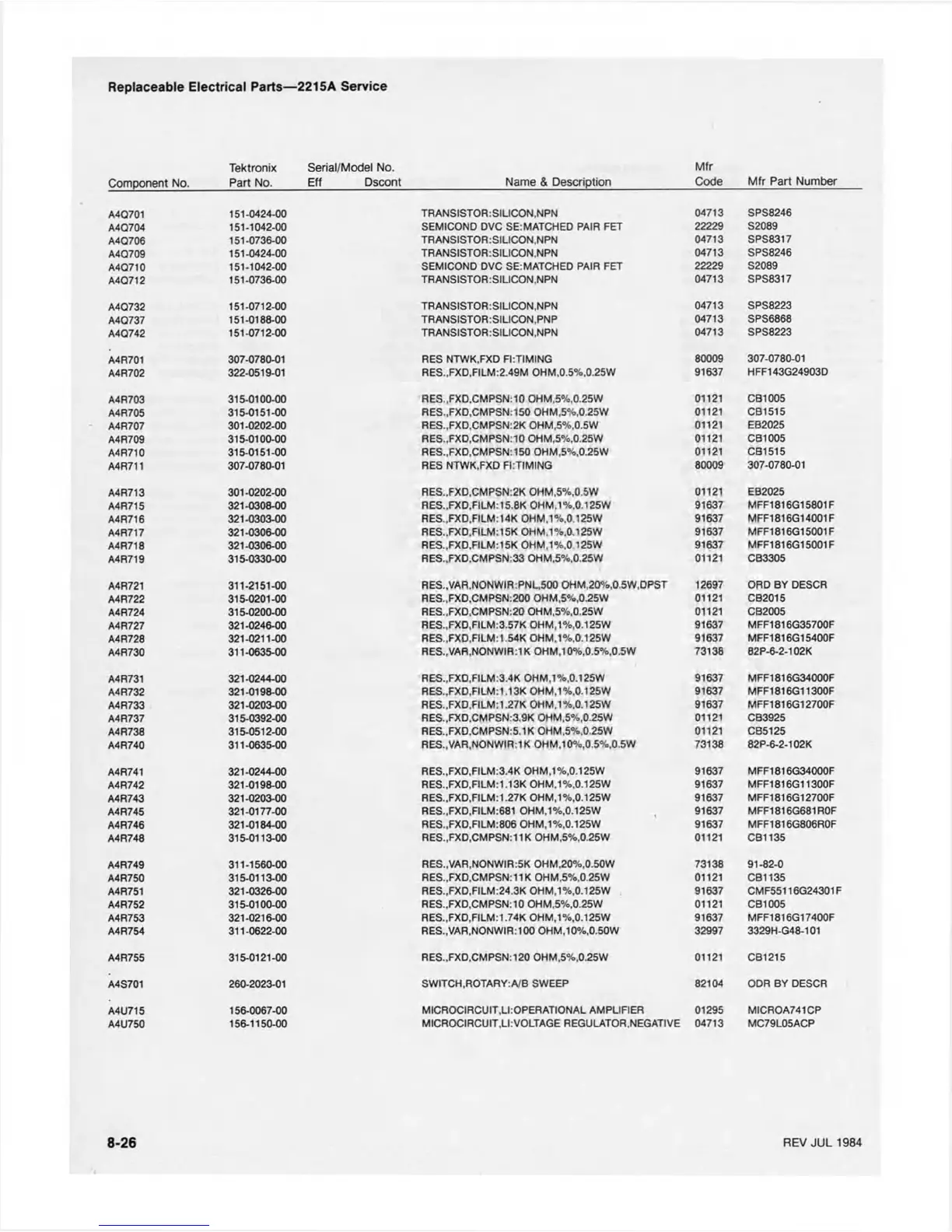

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
A4Q701
151-0424-00
TRANSiSTOR:SILICON,NPN
04713
SPS8246
A4Q704
151-1042-00
SEMICOND DVC SE:MATCHED PAIR FET
22229 S2089
A4Q706
151-0736-00
TRANSISTOR:SILICON,NPN
04713
SPS8317
A4Q709
151-0424-00
TRANSISTOR:SILICON,NPN
04713 SPS8246
A4Q710
151-1042-00
SEMICOND DVC SE:MATCHED PAIR FET
22229 S2089
A4Q712
151-0736-00
TRANSISTOR:SILICON,NPN
04713
SPS8317
A4Q732
151-0712-00
TRANSISTOR: SILICON.NPN
04713 SPS8223
A4Q737
151-0188-00
TRANSISTOR:SIUCON,PNP
04713 SPS6868
A4Q742
151-0712-00
TRANSISTOR: SILICON.NPN
04713
SPS8223
A4R701
307-0780-01
RES NTWK.FXD FLTIMING
80009
307-0780-01
A4R702
322-0519-01
RES.,FXD,FILM:2.49M OHM,0.5%,0.25W
91637
HFF143G24903D
A4R703
315-0100-00
RES.,FXD,CMPSN:10 OHM,5%,0.25W
01121
CB1005
A4R705
315-0151-00
RES.,FXD,CMPSN:150 OHM,5%,0.25W
01121 CB1515
A4R707
301-0202-00
RES.,FXD,CMPSN:2K OHM.5%,0.5W
01121 EB2025
A4R709
315-0100-00
RES..FXD.CMPSN: 10 OHM,5%,0.25W
01121 CB1005
A4R710
315-0151-00
RES.,FXD,CMPSN:150 OHM,5%,0.25W
01121 CB1515
A4R711 307-0780-01
RES NTWK.FXD FLTIMING
80009
307-0780-01
A4R713
301-0202-00
RES.,FXD,CMPSN:2K OHM,5%,0.5W 01121 EB2025
A4R715
321-0308-00
RES..FXD,FILM:15.8K OHM.1 %,0.125W
91637
MFF1816G15801F
A4R716
321-0303-00
RES.,FXD,FILM:14K OHM,1%,0.125W 91637
MFF1816G14001F
A4R717 321-0306-00
RES.,FXD,FILM:15K OHM,1%,0.125W
91637 MFF1816G15001F
A4R718
321-0306-00
RES.,FXD,FILM:15K OHM.1%,0.125W
91637 MFF1816G15001F
A4R719 315-0330-00
RES.,FXD,CMPSN:33 OHM,5%,0.25W
01121 CB3305
A4R721
311-2151-00
RES.,VAR.NONWIR:PNL,500 OHM,20%,0.5W,DPST
12697 ORD BY DESCR
A4R722
315-0201-00
RES.,FXD,CMPSN:200 OHM,5%,0.25W 01121 CB2015
A4R724
315-0200-00
RES.,FXD,CMPSN:20 OHM,5%,0.25W
01121
CB2005
A4R727 321-0246-00
RES.,FXD,FILM:3.57K OHM.1%,0.125W 91637
MFF1816G35700F
A4R728
321-0211-00
RES.,FXD.FILM: 1.54K OHM,1%,0.125W
91637 MFF1816G15400F
A4R730
311-0635-00
RES..VAR.NONWIR:1 K OHM.10%,0.5%,0.5W
73138
82P-6-2-102K
A4R731
321-0244-00
RES..FXD,FILM:3.4K OHM,1%,0.125W 91637
MFF1816G34000F
A4R732 321-0198-00
RES.,FXD,FILM:1.13K OHM,1%,0.125W 91637 MFF1816G11300F
A4R733
321-0203-00
RES..FXD,FILM:1.27K OHM,1%,0.125W
91637
MFF1816G12700F
A4R737 315-0392-00
RES.,FXD,CMPSN:3.9K OHM.5%,0.25W 01121 CB3925
A4R738 315-0512-00
RES.,FXD,CMPSN:5.1K OHM.5%,0.25W
01121
CB5125
A4R740
311-0635-00
RES.,VAR,NONWIR:1K OHM,10%,0.5%.0.5W 73138
82P-6-2-102K
A4R741
321-0244-00
RES.,FXD,FILM:3.4K OHM.1%,0.125W 91637 MFF1816G34000F
A4R742
321-0198-00
RES.,FXD,nLM:1.13K OHM.1%,0.125W 91637
MFF1816G11300F
A4R743
321-0203-00
RES.,FXD,FILM: 1.27K OHM.1%,0.125W 91637 MFF1816G12700F
A4R745 321-0177-00
RES.,FXD,FILM:681 OHM,1%,0.125W
91637 MFF1816G681R0F
A4R746
321-0184-00
RES.,FXD,FILM:806 OHM,1%,0.125W 91637
MFF1816G806R0F
A4R748
315-0113-00
RES.,FXD,CMPSN:1 IK OHM,5%.0.25W
01121
CB1135
A4R749
311-1560-00
RES.,VAR.NONWIR:5K OHM,20%,0.50W
73138 91-82-0
A4R750
315-0113-00
RES.,FXD,CMPSN:11K OHM,5%,0.25W
01121
CB1135
A4R751 321-0326-00
RES.,FXD,FILM:24.3K OHM,1%,0.125W 91637
CMF55116G24301F
A4R752 315-0100-00
RES..FXD.CMPSN: 10 OHM.5%,0.25W 01121
CB1005
A4R753
321-0216-00
RES.,FXD,FILM:1.74K OHM,1%,0.125W
91637
MFF1816G17400F
A4R754 311-0622-00
RES.,VAR,NONWIR:100 OHM,10%,0.50W
32997
3329H-G48-101
A4R755
315-0121-00
RES..FXD.CMPSN: 120 OHM,5%.0.25W 01121 CB1215
A4S701
260-2023-01
SWITCH,ROTARY:A/B SWEEP 82104
ODR BY DESCR
A4U715
156-0067-00
MICROCIRCUIT,LI OPERATIONAL AMPLIFIER 01295
MICROA741CP
A4U750
156-1150-00
MICROCIRCUIT,LI:VOLTAGE REGULATOR,NEGATIVE
04713
MC79L05ACP
8-26
REV JUL 1984
