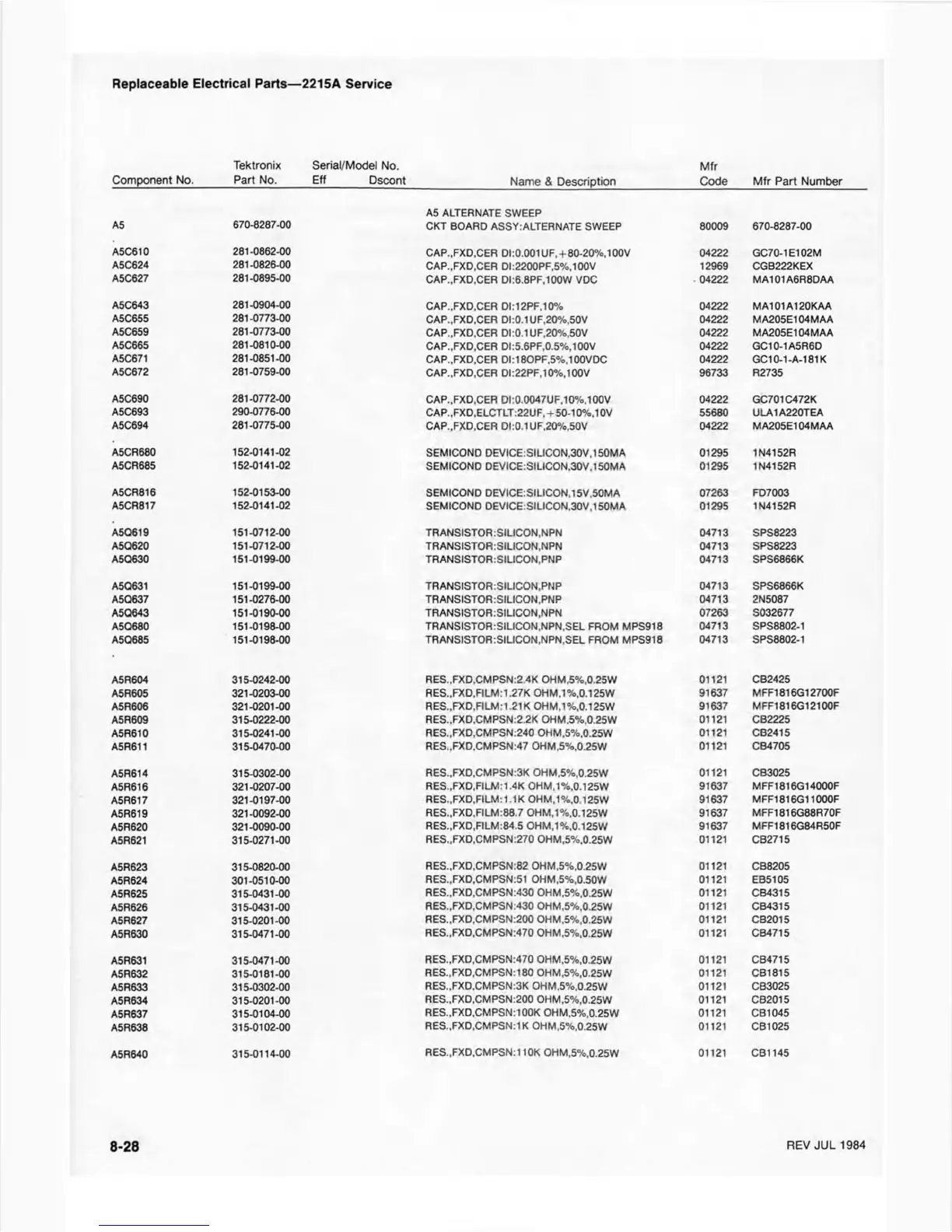

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code Mfr Part Number
A5 ALTERNATE SWEEP
A5
670-8287-00
CKT BOARD ASSY:ALTERNATE SWEEP 80009 670-8287-00
A5C610
281-0862-00
CAP..FXD.CER DL0.001UF,+80-20%,100V 04222 GC70-1E102M
A5C624
281-0826-00
CAP..FXD.CER DI:2200PF.5%,100V 12969 CGB222KEX
A5C627 281-0895-00
CAP..FXD.CER DI:6.8PF,100W VDC 04222 MA101A6R8DAA
A5C643 281-0904-00
CAP..FXD.CER DI:12PF.10%
04222 MA101A120KAA
A5C655
281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A5C659 281-0773-00
CAP..FXD.CER DI:0.1UF,20%,50V 04222
MA205E104MAA
A5C665
281-0810-00
CAP..FXD.CER DL5.6PF,0.5%,100V
04222
GC10-1A5R6D
A5C671 281-0851-00
CAP..FXD.CER Dl: 180PF,5%, 10OVDC
04222 GC10-1-A-181K
A5C672 281-0759-00
CAP..FXD.CER DI:22PF.10%,100V 96733 R2735
A5C690
281-0772-00
CAP..FXD.CER DI:0.0047UF,10%,100V
04222 GC701C472K
A5C693
290-0776-00
CAP.,FXD,ELCTLT :22UF, + 50-10%,1 OV
55680 ULA1A220TEA
A5C694 281-0775-00
CAP..FXD.CER DI:0.1UF,20%,50V
04222 MA205E104MAA
A5CR680
152-0141-02
SEMICOND DEVICE.SILICON.30V.150MA 01295
1N4152R
A5CR685
152-0141-02
SEMICOND DEV1CE:SIUCON,30V,150MA 01295
1N4152R
A5CR816 152-0153-00
SEMICOND DEVICE:SILICON,15V.50MA
07263 FD7003
A5CR817 152-0141-02
SEMICOND DEVICE:SIL1CON,30V.150MA
01295 1N4152R
A5Q619 151-0712-00
TRANSISTOR:SILICON,NPN 04713 SPS8223
A5Q620 151-0712-00
TRANSISTOR: SILICON,NPN 04713
SPS8223
A5Q630 151-0199-00 TRANSISTOR:SILICON.PNP 04713
SPS6866K
A5Q631 151-0199-00 TRANSISTOR:SILICON,PNP 04713
SPS6866K
A5Q637
151-0276-00 TRANSISTOR:SILICON,PNP 04713
2N5087
A5Q643 151-0190-00 TRANSISTOR:SILICON,NPN 07263
S032677
A5Q680 151-0198-00
TRANSISTOR:SILICON,NPN.SEL FROM MPS918
04713
SPS8802-1
A5Q685
151-0198-00 TRANSISTOR:SILICON.NPN,SEL FROM MPS918
04713 SPS8802-1
A5R604 315-0242-00
RES.,FXD,CMPSN:2.4K OHM,5%.0.25W
01121
CB2425
A5R605 321-0203-00
RES.,FXD,FILM:1.27K OHM,1%,0.125W
91637 MFF1816G12700F
A5R606 321-0201-00
RES.,FXD,FILM:1.21K OHM,1%,0.125W
91637 MFF1816G12100F
A5R609
315-0222-00
RES.,FXD,CMPSN:2.2K OHM.5%,0.25W 01121 CB2225
A5R610 315-0241-00
RES.,FXD,CMPSN:240 OHM,5%,0.25W 01121 CB2415
A5R611
315-0470-00
RES.,FXD,CMPSN:47 OHM,5%,0.25W 01121 CB4705
A5R614
315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0.25W 01121 CB3025
A5R616
321-0207-00
RES.,FXD,FILM:1.4K OHM,1%,0.125W 91637
MFF1816G14000F
A5R617 321-0197-00
RES.,FXD,FILM:1.1K OHM,1%,0.125W 91637
MFF1816G11000F
A5R619
321-0092-00
RES.,FXD,FILM:88.7 OHM,1%,0.125W 91637
MFF1816G88R70F
A5R620
321-0090-00
RES.,FXD,FILM:84.5 OHM,1%,0.125W 91637
MFF1816G84R50F
A5R621
315-0271-00
RES.,FXD,CMPSN:270 OHM,5%.0.25W 01121 CB2715
A5R623
315-0820-00
RES.,FXD,CMPSN:82 OHM,5%,0.25W 01121
CB8205
A5R624 301-0510-00
RES.,FXD,CMPSN:51 OHM,5%.0.50W
01121
EB5105
A5R625
315-0431-00
RES.,FXD,CMPSN:430 OHM.5%.0.25W 01121
CB4315
A5R626 315-0431-00
RES.,FXD,CMPSN:430 OHM.5%,0.25W 01121 CB4315
A5R627
315-0201-00
RES.,FXD,CMPSN:200 OHM,5%.0.25W 01121 CB2015
A5R630 315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
A5R631
315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
A5R632 315-0181-00
RES.,FXD,CMPSN:180 OHM,5%,0.25W 01121
CB1815
A5R633 315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0.25W
01121
CB3025
A5R634 315-0201-00
RES.,FXD,CMPSN:200 OHM,5%,0.25W
01121
CB2015
A5R637 315-0104-00
RES.,FXD,CMPSN:100K OHM,5%,0.25W 01121 CB1045
A5R638 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%.0.25W
01121 CB1025
A5R640
315-0114-00
RES..FXD.CMPSN: 110K OHM,5%,0.25W
01121
CB1145
8-28
REV JUL 1984
