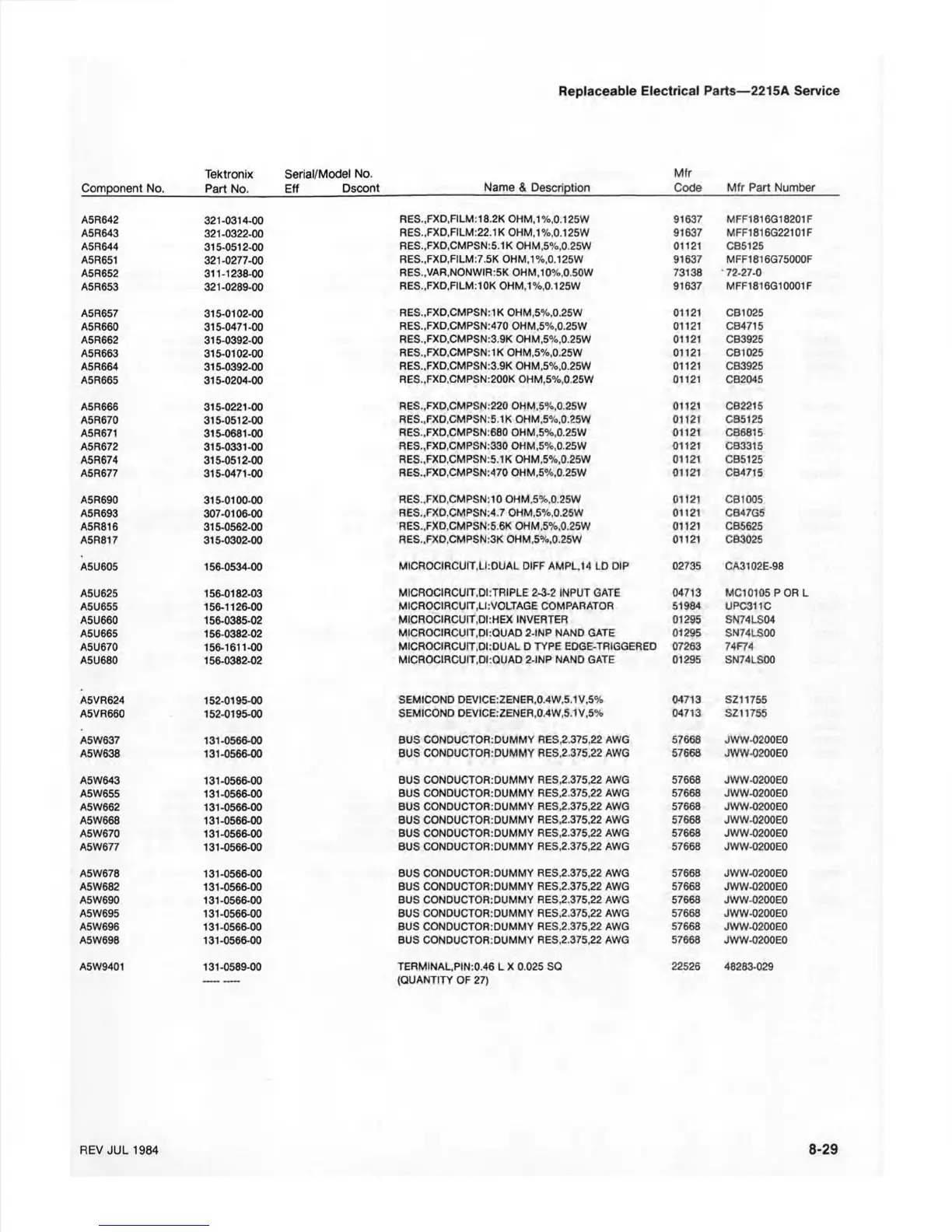

Tektronix 2215A User Manual

Replaceable Electrical Parts—2215A Service
Tektronix Serial/Model No. Mfr
Component No.
Part No. Eff
Dscont Name & Description Code
Mfr Part Number
A5R642
321-0314-00
RES.,FXD,FILM:18.2K OHM,1%,0.125W 91637 MFF1816G18201F
A5R643
321-0322-00
RES.,FXD,FILM:22.1K OHM,1%,0.125W
91637
MFF1816G22101F
A5R644
315-0512-00
RES.,FXD,CMPSN:5.1K OHM,5%,0.25W
01121 CB5125
A5R651
321-0277-00
RES.,FXD,FILM:7.5K OHM,1%,0.125W
91637
MFF1816G75000F
A5R652
311-1238-00
RES.,VAR,NONWIR:5K OHM,10%,0.50W
73138 72-27-0
A5R653
321-0289-00
RES.,FXD,FILM:10K OHM,1%,0.125W
91637
MFF1816G10001F
A5R657
315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121 CB1025
A5R660
315-0471-00
RES..FXD,CMPSN:470 OHM,5%,0.25W 01121
CB4715
A5R662
315-0392-00
RES.,FXD,CMPSN:3.9K OHM,5%,0.25W
01121 CB3925
A5R663
315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121
CB1025
A5R664
315-0392-00
RES.,FXD,CMPSN:3.9K OHM,5%,0.25W 01121
CB3925
A5R665 315-0204-00
RES.,FXD,CMPSN:200K OHM,5%,0.25W
01121
CB2045
A5R666
315-0221-00
RES.,FXD,CMPSN:220 OHM,5%,0.25W
01121 CB2215
A5R670
315-0512-00
RES.,FXD,CMPSN:5.1 K OHM,5%,0.25W 01121 CB5125
A5R671
315-0681-00
RES.,FXD,CMPSN:680 OHM,5%,0.25W
01121 CB6815
A5R672
315-0331-00
RES..FXD,CMPSN:330 OHM,5%,0.25W 01121
CB3315
A5R674
315-0512-00
RES..FXD,CMPSN:5.1 K OHM,5%,0.25W 01121
CB5125
A5R677
315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
A5R690
315-0100-00
RES.,FXD,CMPSN:10 OHM.5%,0.25W 01121
CB1005
A5R693 307-0106-00
RES.,FXD,CMPSN:4.7 OHM,5%,0.25W
01121 CB47G5
A5R816
315-0562-00
RES.,FXD,CMPSN:5.6K OHM,5%,0.25W
01121
CB5625
A5R817 315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0.25W 01121
CB3025
A5U605 156-0534-00
MICROCIRCUIT,LI:DUAL DIFF AMPL.14 LD DIP 02735 CA3102E-98
A5U625 156-0182-03
MICROCIRCUIT,DLTRIPLE 2-3-2 INPUT GATE
04713 MC10105 P OR L
A5U655 156-1126-00
MICROCIRCUIT,LLVOLTAGE COMPARATOR
51984
UPC311C
A5U660 156-0385-02
MICROCIRCUIT,DI:HEX INVERTER 01295 SN74LS04
A5U665 156-0382-02
MICROCIRCUIT,DLQUAD 2-INP NAND GATE 01295
SN74LS00
A5U670 156-1611-00
MICROCIRCUIT,DLDUAL D TYPE EDGE-TRIGGERED 07263
74F74
A5U680 156-0382-02
MICROCIRCUIT,DI:QUAD 2-INP NAND GATE 01295 SN74LS00
A5VR624
152-0195-00
SEMICOND DEVICE:ZENER,0.4W,5.1V,5% 04713 SZ11755
A5VR660
152-0195-00
SEMICOND DEVICE:ZENER,0.4W,5.1V,5% 04713 SZ11755
A5W637
131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668 JWW-0200EO
A5W638
131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375.22 AWG
57668 JWW-0200E0
A5W643 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG
57668 JWW-0200E0
A5W655 131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200E0
A5W662 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 57668
JWW-0200E0
A5W668 131-0566-00
BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 57668
JWW-0200E0
A5W670 131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG
57668 JWW-0200E0
A5W677
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG
57668 JWW-0200E0
A5W678
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200EO
A5W682
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200EO
A5W690
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200E0
A5W695
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200EO
A5W696 131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668
JWW-0200EO
A5W698
131-0566-00
BUS CONDUCTOR:DUMMY RES.2.375,22 AWG 57668 JWW-0200E0
A5W9401 131-0589-00 TERMINAL,PIN:0.46 L X 0.025 SQ
22526
48283-029
—
(QUANTITY OF 27)
REV JUL 1984 8-29
