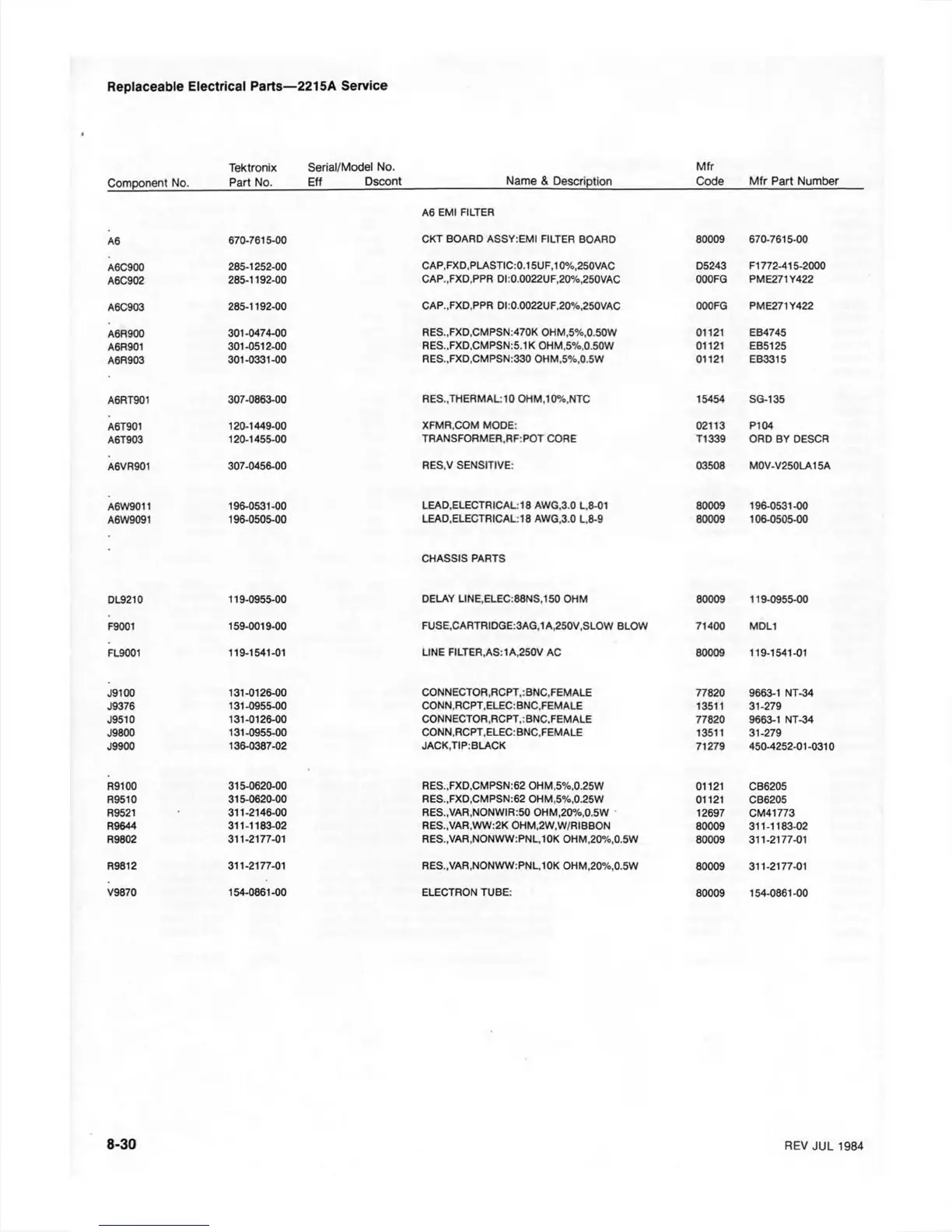

Replaceable Electrical Parts—2215A Service
Component No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
A6 EMI FILTER
A6
670-7615-00
CKT BOARD ASSY:EMI FILTER BOARD
80009 670-7615-00
A6C900
285-1252-00
CAP.FXD,PLASTIC:0.15UF,10%,250VAC
D5243 FI 772-415-2000
A6C902
285-1192-00
CAP.,FXD,PPR DI:0.0022UF,20%.250VAC 000FG PME271Y422
A6C903
285-1192-00
CAP..FXD.PPR DI:0.0022UF,20%.250VAC 000FG PME271Y422
A6R900
301-0474-00
RES.,FXD,CMPSN:470K OHM,5%,0.50W
01121 EB4745
A6R901
301-0512-00
RES.,FXD,CMPSN:5.1K OHM,5%,0.50W
01121
EB5125
A6R903
301-0331-00
RES..FXD,CMPSN:330 OHM,5%,0.5W
01121
EB3315
A6RT901
307-0863-00
RES.,THERMAL:10 OHM,10%,NTC 15454
SG-135
A6T901
120-1449-00
XFMR.COM MODE:
02113
PI 04
A6T903
120-1455-00
TRANSFORMER,RF:POT CORE
T1339
ORD BY DESCR
A6VR901
307-0456-00
RES.V SENSITIVE:
03508 M0V-V250LA15A
A6W9011
196-0531-00
LEAD,ELECTRICAL: 18 AWG.3.0 L.8-01
80009 196-0531-00
A6W9091
196-0505-00
LEAD.ELECTRICAL: 18 AWG.3.0 L.8-9
80009 106-0505-00
CHASSIS PARTS
DL9210
119-0955-00
DELAY LINE,ELEC:88NS,150 OHM
80009 119-0955-00
F9001
159-0019-00 FUSE,CARTRIDGE:3AG,1 A,250V,SLOW BLOW 71400 MDL1
FL9001
119-1541-01
LINE FILTER,AS:1A,250V AC
80009 119-1541-01
J9100
131-0126-00 CONNECTOR,RCPT,:BNC,FEMALE
77820 9663-1 NT-34
J9376
131-0955-00
CONN,RCPT,ELEC:BNC,FEMALE
13511
31-279
J9510
131-0126-00 CONNECTOR,RCPT,:BNC,FEMALE
77820 9663-1 NT-34
J9800 131-0955-00
CONN,RCPT,ELEC:BNC,FEMALE
13511 31-279
J9900
136-0387-02
JACK,TIP: BLACK
71279
450-4252-01-0310
R9100
315-0620-00
RES.,FXD,CMPSN:62 OHM,5%,0.25W
01121 CB6205
R9510
315-0620-00 RES..FXD.CMPSN:62 OHM,5%,0.25W
01121 CB6205
R9521
311-2146-00 RES.,VAR,NONWIR:50 OHM,20%,0.5W
12697
CM41773
R9644
311-1183-02 RES.,VAR,WW:2K OHM.2W.W/RIBBON
80009 311-1183-02
R9802 311-2177-01
RES.,VAR,NONWW:PNL,10K OHM,20%,0.5W
80009 311-2177-01
R9812 311-2177-01 RES.,VAR,NONWW:PNL,10K OHM,20%,0.5W
80009 311-2177-01
V9870
154-0861-00 ELECTRON TUBE:
80009 154-0861-00
8-30
REV JUL 1984
