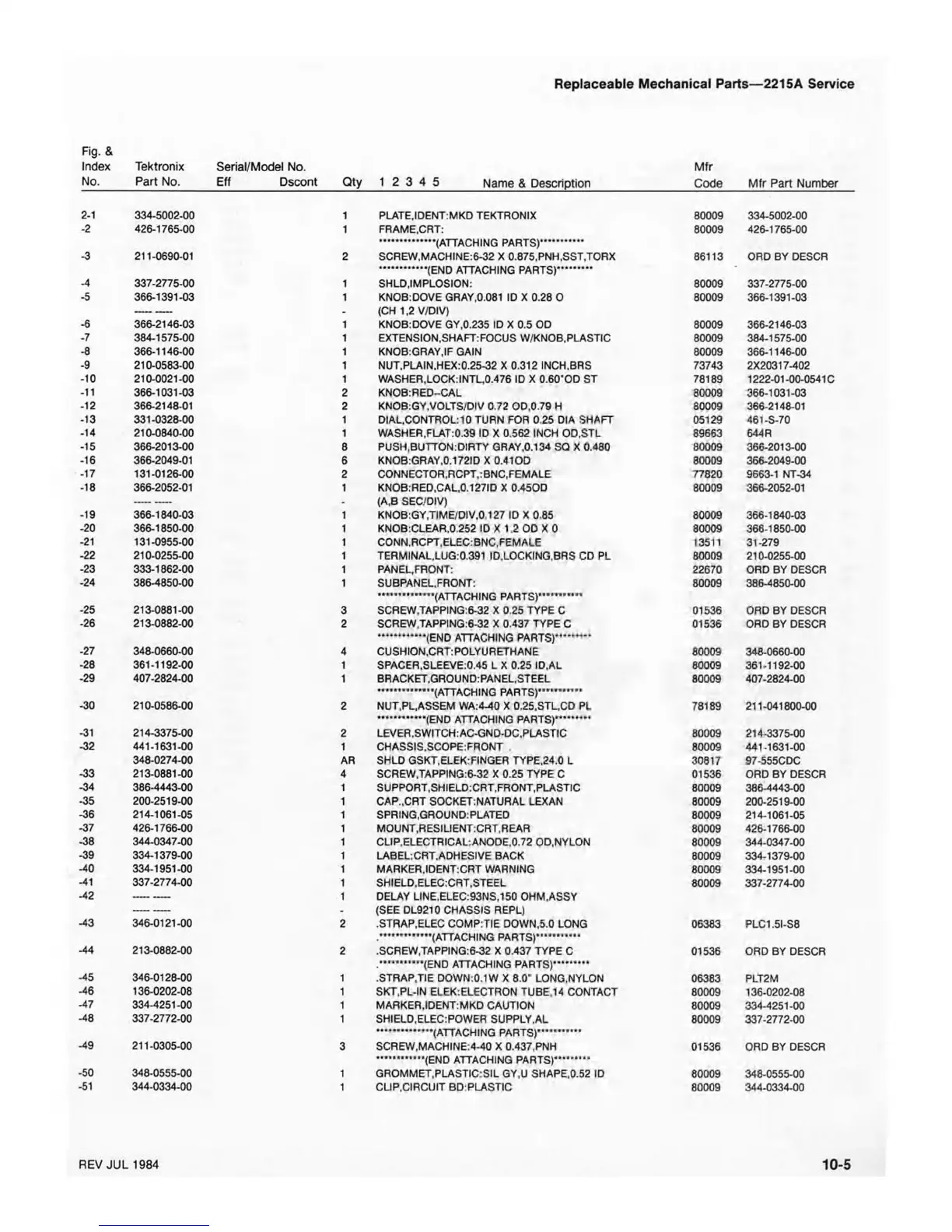

Replaceable Mechanical Parts—2215A Service
Fig. &
Index Tektronix
Serial/Model No.
Mfr
No. Part No. Eff Dscont
Qty 1 2 3 4 5
Name & Description
Code
Mfr Part Number
2-1
334-5002-00 1 PLATE,IDENT:MKD TEKTRONIX
80009
334-5002-00
-2
426-1765-00
1
FRAME,CRT:
80009 426-1765-00
-3
211-0690-01 2 SCREW,MACHINE:6-32 X 0.875.PNH.SST.TORX
86113
ORD BY DESCR
-4
337-2775-00 1 SHLD,IMPLOSION: 80009
337-2775-00
-5
366-1391-03 1
KNOB:DOVE GRAY,0.081 ID X 0.28 O 80009 366-1391-03
-6
366-2146-03 1
(CH 1,2 V/DIV)
KNOB:DOVE GY,0.235 ID X 0.5 OD 80009 366-2146-03
-7
384-1575-00
1
EXTENSION,SHAFT:FOCUS W/KNOB,PLASTIC 80009 384-1575-00
-8
366-1146-00 1 KNOB:GRAY,IF GAIN
80009 366-1146-00
-9
210-0583-00 1 NUT,PLAIN,HEX:0.25-32 X 0.312 INCH.BRS
73743 2X20317-402
-10 210-0021-00 1
WASHER,LOCK:INTL,0.476 ID X 0.60'OD ST 78189 1222-01 -00-0541C
-11
366-1031-03 2 KNOB:RED-CAL
80009 366-1031-03
-12
366-2148-01 2 KNOB:GY,VOLTS/DIV 0.72 OD.O.79 H 80009
366-2148-01
-13 331-0328-00 1
DIAL,CONTROL:10 TURN FOR 0.25 DIA SHAFT 05129 461-S-70
-14
210-0840-00
1 WASHER,FLAT:0.39 ID X 0.562 INCH OD.STL 89663 644R
-15
366-2013-00 8 PUSH,BUTTON:DIRTY GRAY,0.134 SQ X 0.480
80009 366-2013-00
-16 366-2049-01
6 KNOB:GRAY,0.172ID X 0.41 OD 80009 366-2049-00
-17
131-0126-00 2 CONNECTOR,RCPT,:BNC,FEMALE
77820
9663-1 NT-34
-18
366-2052-01 1 KNOB:RED,CAL,0.127ID X 0.45OD
80009 366-2052-01
-19
366-1840-03 1
(A.B SEC/DIV)
KNOB:GY,TIME/DIV,0.127 ID X 0.85
80009 366-1840-03
-20
366-1850-00 1 KNOB:CLEAR,0.252 ID X 1.2 OD X 0 80009
366-1850-00
-21
131-0955-00 1 CONN.RCPT,ELEC:BNC,FEMALE
13511 31-279
-22
210-0255-00 1
TERMINAL,LUG:0.391 ID,LOCKING,8RS CD PL 80009 210-0255-00
-23
333-1862-00 1 PANEL,FRONT:
22670 ORD BY DESCR
-24
386-4850-00 1 SUBPANEL,FRONT:
80009 386-4850-00
-25
213-0881-00
3
SCREW,TAPPING:6-32 X 0.25 TYPE C
01536 ORD BY DESCR
-26
213-0882-00
2 SCREW,TAPPING:6-32 X 0.437 TYPE C
01536
ORD BY DESCR
-27
348-0660-00
4 CUSHION,CRT:POLYURETHANE
80009 348-0660-00
-28
361-1192-00 1
SPACER,SLEEVE:0.45 L X 0.25 ID.AL 80009 361-1192-00
-29
407-2824-00
1 BRACKET,GROUND:PANEL,STEEL 80009
407-2824-00
-30
210-0586-00
2 NUT.PL.ASSEM WA:4-40 X 0.25,STL,CD PL 78189
211-041800-00
-31
214-3375-00 2
LEVER,SWITCH:AC-GND-DC,PLASTIC 80009
214-3375-00
-32
441-1631-00
1 CHASSIS,SCOPE:FRONT .
80009 441-1631-00
348-0274-00 AR SHLD GSKT,ELEK:FINGER TYPE,24.0 L
30817 97-555CDC
-33 213-0881-00 4
SCREW,TAPPING:6-32 X 0.25 TYPE C
01536
ORD BY DESCR
-34
386-4443-00 1
SUPPORT,SHIELD:CRT,FRONT,PLASTIC 80009
386-4443-00
-35 200-2519-00
1 CAP.,CRT SOCKET.'NATURAL LEXAN
80009 200-2519-00
-36
214-1061-05 1 SPRING,GROUND:PLATED
80009 214-1061-05
-37
426-1766-00 1 MOUNT,RESILIENT:CRT,REAR
80009 426-1766-00
-38
344-0347-00 1 CLIP.ELECTRICAL:ANODE,0.72 OD,NYLON
80009 344-0347-00
-39
334-1379-00 1 LABEL:CRT,ADHESIVE BACK
80009 334-1379-00
-40
334-1951-00 1
MARKER,IDENT:CRT WARNING
80009 334-1951-00
-41
337-2774-00
1 SHIELD,ELEC:CRT,STEEL
80009 337-2774-00
-42
-43 346-0121-00
1
2
DELAY LINE,ELEC:93NS,150 OHM,ASSY
(SEE DL9210 CHASSIS REPL)
.STRAP,ELEC COMP:TIE DOWN.5.0 LONG
06383 PLC1.5I-S8
-44
213-0882-00
2
.SCREW,TAPPING:6-32 X 0.437 TYPE C
01536
ORD BY DESCR
-45
346-0128-00 1
.STRAP.TIE DOWN:0.1W X 8.0- LONG,NYLON
06383 PLT2M
-46
136-0202-08 1
SKT.PL-IN ELEK:ELECTRON TUBE,14 CONTACT
80009 136-0202-08
-47
334-4251-00 1
MARKER,IDENT:MKD CAUTION
80009
334-4251-00
-48
337-2772-00 1
SHIELD,ELEC:POWER SUPPLY,AL
80009 337-2772-00
-49
211-0305-00
3 SCREW.MACHINE:4-40 X 0.437,PNH
01536 ORD BY DESCR
-50
348-0555-00 1
GROMMET,PLASTIC:SIL GY.U SHAPE.0.52 ID
80009 348-0555-00
-51
344-0334-00 1 CLIP.C1RCUIT BD:PLASTIC
80009 344-0334-00
REV JUL 1984
10-5
