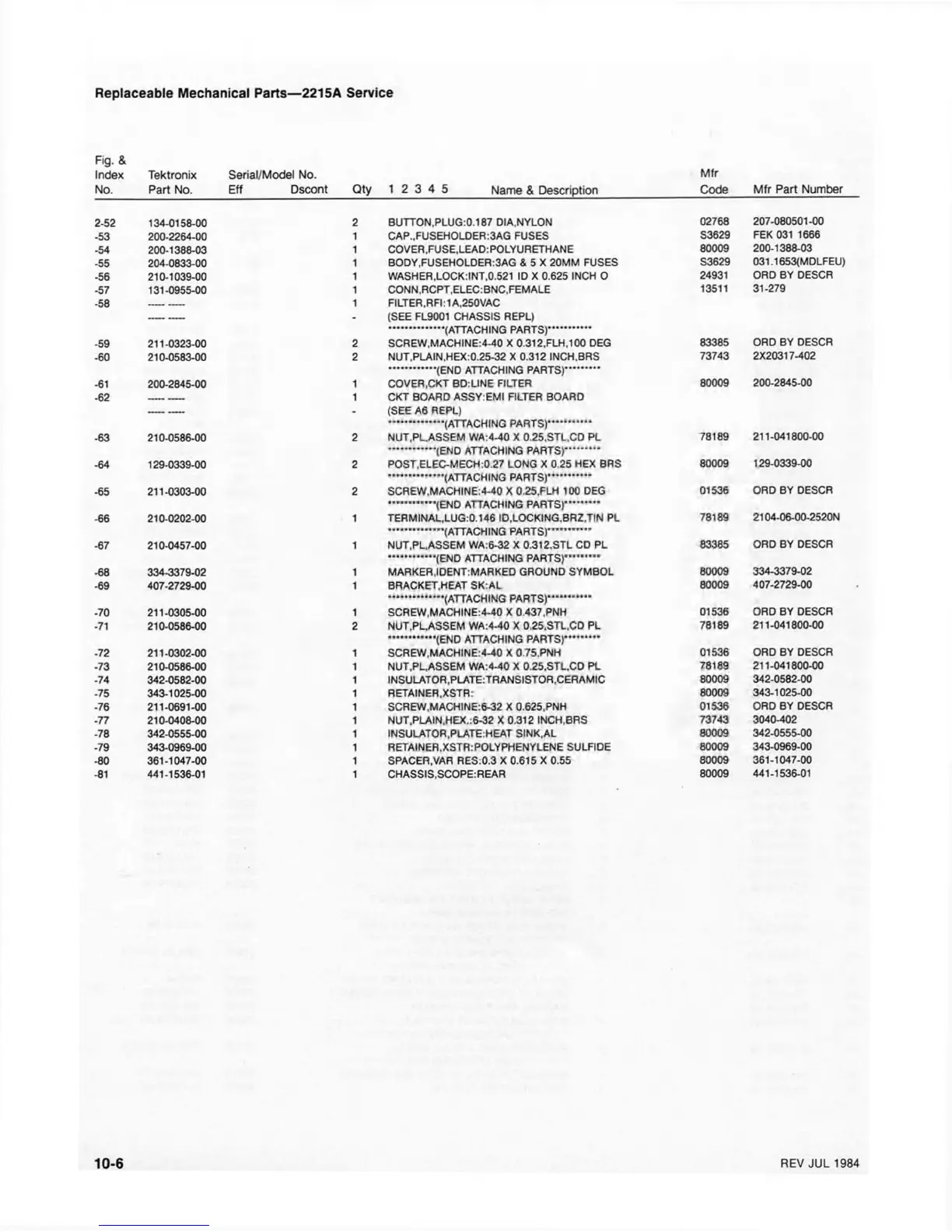

Replaceable Mechanical Parts—2215A Service
Fig. &
Index Tektronix Serial/Model No. Mfr
No. _____ Part No. _____ Eff _______ Dscont Qty 1 2 3 4 5 ______ Name & Description _______________ Code Mfr Part Number
2-52
134-0158-00
2
BUTTON,PLUG:0.187 DIA,NYLON
02768
207-080501-00
-53 200-2264-00
1 CAP.,FUSEHOLDER:3AG FUSES
S3629
FEK 031 1666
-54
200-1388-03
1 COVER,FUSE,LEAD:POLYURETHANE
80009
200-1388-03
-55 204-0833-00
1 BODY,FUSEHOLDER:3AG & 5 X 20MM FUSES
S3629 031.1653(MDLFEU)
-56 210-1039-00
1 WASHER,LOCK:INT,0.521 ID X 0.625 INCH O
24931 ORD BY DESCR
-57
-58
131-0955-00
1
1
CONN,RCPT,ELEC:BNC.FEMALE
FILTER,RFI:1 A.250VAC
(SEE FL9001 CHASSIS REPL)
13511
31-279
-59 211-0323-00
2 SCREW,MACHINE:4-40 X 0.312.FLH.100 DEG
83385
ORD BY DESCR
-60
210-0583-00
2 NUT,PLAIN,HEX:0.25-32 X 0.312 INCH.BRS
73743
2X20317-402
-61
-62
200-2845-00
1
1
COVER,CKT BDrLINE FILTER
CKT BOARD ASSY:EMI FILTER BOARD
(SEE A6 REPL)
80009
200-2845-00
-63 210-0586-00
2 NUT.PL.ASSEM WA:4-40 X 0.25.STL.CD PL
78189
211-041800-00
-64
129-0339-00
2
POST,ELEC-MECH:0.27 LONG X 0.25 HEX BRS
80009
129-0339-00
-65 211-0303-00
2
SCREW,MACHINE:4-40 X 0.25,FLH 100 DEG
01536
ORD BY DESCR
-66
210-0202-00
1
TERMINAL,LUG:0.146 ID.LOCKING.BRZ.TIN PL
78189
2104-06-00-2520N
-67 210-0457-00
1
NUT.PL.ASSEM WA:6-32 X 0.312.STL CD PL
83385
ORD BY DESCR
-68
334-3379-02
1
MARKER,IDENT:MARKED GROUND SYMBOL
80009
334-3379-02
-69 407-2729-00
1
BRACKET,HEAT SK:AL
80009
407-2729-00
-70
211-0305-00
1
SCREW,MACHINE:4-40 X 0.437,PNH
01536 ORD BY DESCR
-71
210-0586-00
2
NUT.PL.ASSEM WA:4-40 X 0.25.STL.CD PL
78189
211-041800-00
-72 211-0302-00
1 SCREW,MACHINE:4-40 X 0.75,PNH
01536
ORD BY DESCR
-73 210-0586-00
1
NUT.PL.ASSEM WA:4-40 X 0.25.STL.CD PL
78189 211-041800-00
-74
342-0582-00
1
INSULATOR.PLATE: TRANSISTOR,CERAMIC
80009 342-0582-00
-75 343-1025-00
1 RETAINER,XSTR:
80009 343-1025-00
-76
211-0691-00
1
SCREW,MACHINE:6-32 X 0.625,PNH
01536
ORD BY DESCR
-77
210-0408-00
1 NUT,PLAIN,HEX.:6-32 X 0.312 INCH.BRS
73743
3040-402
-78 342-0555-00 1
INSULATOR,PLATE:HEAT SINK.AL
80009 342-0555-00
-79 343-0969-00 1
RETAINER,XSTR:POLYPHENYLENE SULFIDE
80009 343-0969-00
-80
361-1047-00 1 SPACER,VAR RES:0.3 X 0.615 X 0.55
80009 361-1047-00
-81 441-1536-01 1
CHASSIS,SCOPE: REAR
80009 441-1536-01
10-6
R EV J U L 198 4
