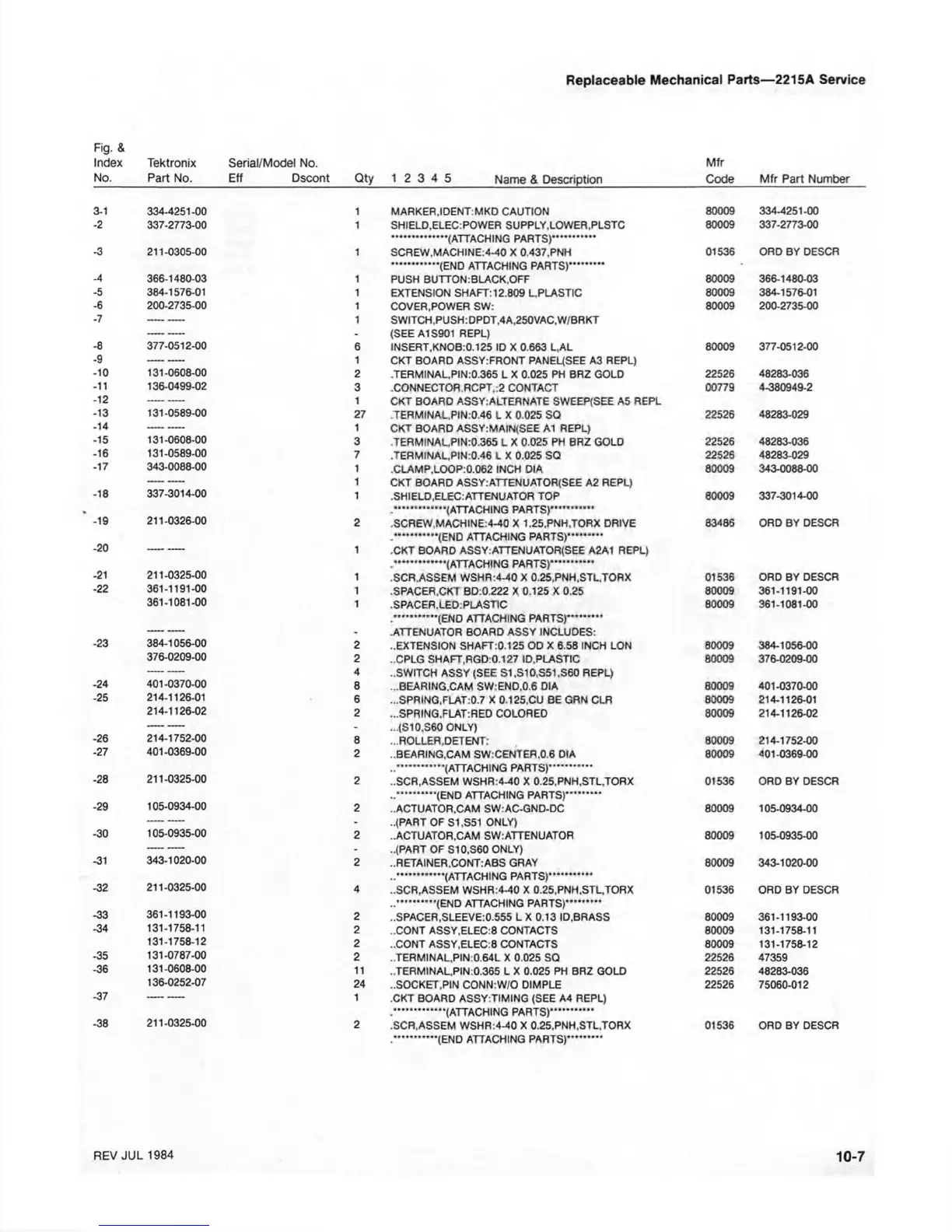

Replaceable Mechanical Parts—2215A Service
Fig. &
Index Tektronix Serial/Model No.
No. Part No. Eff Dscont Qty 1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
3-1
334-4251-00
1
MARKER,IDENTiMKD CAUTION
80009 334-4251-00
-2
337-2773-00
1
SHIELD,ELEC:POWER SUPPLY,LOWER.PLSTC
80009 337-2773-00
-3 211-0305-00
1
SCREW,MACHINE:4-40 X 0.437,PNH
01536 ORD BY DESCR
................(END ATTACHING PARTS) ............
-4
366-1480-03
1
PUSH BUTTON:BLACK,OFF
80009 366-1480-03
-5 384-1576-01
1
EXTENSION SHAFT: 12.809 L,PLASTIC
80009 384-1576-01
-6 200-2735-00
1
COVER,POWER SW:
80009
200-2735-00
-7
—
1
SWITCH,PUSH:DPDT,4A,250VAC,W/BRKT
—
-
(SEE A1S901 REPL)
-8 377-0512-00
6
INSERT,KNOB:0.125 ID X 0.663 L,AL
80009 377-0512-00
-9
—
1
CKT BOARD ASSY:FRONT PANEL(SEE A3 REPL)
-10
131-0608-00
2
.TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526 48283-036
-11
136-0499-02
3
.CONNECTOR,RCPT,:2 CONTACT
00779 4-380949-2
-12
—
1
CKT BOARD ASSY:ALTERNATE SWEEP(SEE A5 REPL
-13 131-0589-00
27
.TERMINAL,PIN:0.46 L X 0.025 SQ
22526 48283-029
-14
—
1
CKT BOARD ASSY:MAIN(SEE A1 REPL)
-15 131-0608-00
3
,TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526
48283-036
-16 131-0589-00
7
.TERMINAL.PIN:0.46 L X 0.025 SQ
22526 48283-029
-17 343-0088-00
1
.CLAMP,LOOP:0.062 INCH DIA 80009
343-0088-00
—
1
CKT BOARD ASSY:ATTENUATOR(SEE A2 REPL)
-18
337-3014-00
1
•SHIELD,ELEC:ATTENUATOR TOP
80009 337-3014-00
%
211-0326-00-19
2
.SCREW.MACHINE:4-40 X 1.25.PNH.TORX DRIVE
83486
ORD BY DESCR
-20
. ............... (END ATTACHING PARTS) ............
—
1
.CKT BOARD ASSY:ATTENUATOR(SEE A2A1 REPL)
-21 211-0325-00
1
.SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,TORX
01536
ORD BY DESCR
-22 361-1191-00
1
.SPACER,CKT BD:0.222 X 0.125 X 0.25 80009
361-1191-00
361-1081-00
1
.SPACER.LED: PLASTIC
80009 361-1081-00
—
-
•ATTENUATOR BOARD ASSY INCLUDES:
-23
384-1056-00
2
..EXTENSION SHAFT:0.125 OD X 6.58 INCH LON
80009 384-1056-00
376-0209-00
2
..CPLG SHAFT,RGD:0.127 ID,PLASTIC
80009 376-0209-00
—
4
..SWITCH ASSY (SEE S1,S10,S51.S60 REPL)
-24
401-0370-00
8
...BEARING.CAM SW:END,0.6 DIA
80009 401-0370-00
-25
214-1126-01
6
...SPRING,FLAT:0.7 X 0.125,CU BE GRN CLR
80009 214-1126-01
214-1126-02
2
...SPRING,FLAT:RED COLORED
80009
214-1126-02
—
-
...(S10.S60 ONLY)
-26 214-1752-00
8
...ROLLER.DETENT: 80009 214-1752-00
-27 401-0369-00
2
..BEARING.CAM SW:CENTER,0.6 DIA 80009 401-0369-00
-28
211-0325-00
2
..SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL.TORX 01536
ORD BY DESCR
105-0934-00
-29
2
..ACTUATOR.CAM SW:AC-GND-DC 80009 105-0934-00
—
-
..(PART OF S1.S51 ONLY)
-30
105-0935-00
2
..ACTUATOR.CAM SW:ATTENUATOR
80009 105-0935-00
—
-
..(PART OF S10.S60 ONLY)
-31
343-1020-00
2
..RETAINER,CONT:ABS GRAY 80009 343-1020-00
-32
211-0325-00
4
..SCR.ASSEM WSHR:4-40 X 0.25,PNH.STL,TORX
01536 ORD BY DESCR
361-1193-00
-33
2
..SPACER.SLEEVE:0.555 L X 0.13 ID.BRASS 80009 361-1193-00
-34 131-1758-11
2
..CONT ASSY,ELEC:8 CONTACTS
80009 131-1758-11
131-1758-12
2
..CONT ASSY,ELEC:8 CONTACTS 80009 131-1758-12
-35
131-0787-00
2
..TERMINAL,PIN:0.64L X 0.025 SQ 22526
47359
-36
131-0608-00
11
,.TERMINAL,PIN:0.365 L X 0.025 PH BRZ GOLD
22526 48283-036
136-0252-07
24
..SOCKET,PIN CONN:W/0 DIMPLE
22526
75060-012
-37
—
1
.CKT BOARD ASSY:TIMING (SEE A4 REPL)
211-0325-00
-38
2
.SCR.ASSEM WSHR:4-40 X 0.25.PNH,STL,TORX 01536 ORD BY DESCR
(END ATTACHING PARTS)'
REV JUL 1984
10-7
