Tektronix 2430 Service Manual

1-17
419 mm (16.5 in).
REV DEC 1986
Depth
Width
483 mm (19 in).
178 mm (7 in).
Height
=18.1 kg (39.9Ibs).
Domestic Shipping Weight
=15.8 kg (34.9 Ibs).
Rackmounted Instrument (Option 1R)
Weight
OPTION 1R
0.68 kg (1.5 Ibs).
Rear Support Kit
Weight
419 mm (16.5 in).
Depth
Width
483 mm (19 in).
178 mm (7 in).
Height
6.3 kg (13.8 Ibs).
Domestic Shipping Weight
4.0 kg (8.8 Ibs).
Rackmounting Conversion Kit
Weight
RACKMOUNTING
Weight
With Front Cover, Accessories,
=12.8 kg (28.1 Ibs).
and Accessories Pouch
Without Front Cover, Accessories, =10.9 kg (23.9 Ibs).
and Accessories Pouch
Domestic Shipping Weight
=16.4 kg (36Ibs).
Overall Dimensions See Figure 1-1 for a dimensional drawing.
Height
With Feet and Accessories Pouch 190 mm (7.48 in).
Without Accessories Pouch 160 mm (6.3 in).
Width (with handle)
330 mm (13.0 in).
Depth
With Front Cover 479 mm (18.86 in).
With Handle Extended 550 mm (21.65 in).
Cooling
Forced air circulation; no air filter.
Finish
Tektronix Blue vinyl-clad material on aluminum cabinet.
Construction
Aluminum-alloy/plastic-composite chassis (spot-molded). Plastic-
laminate front panel. Glass-laminate circuit boards.

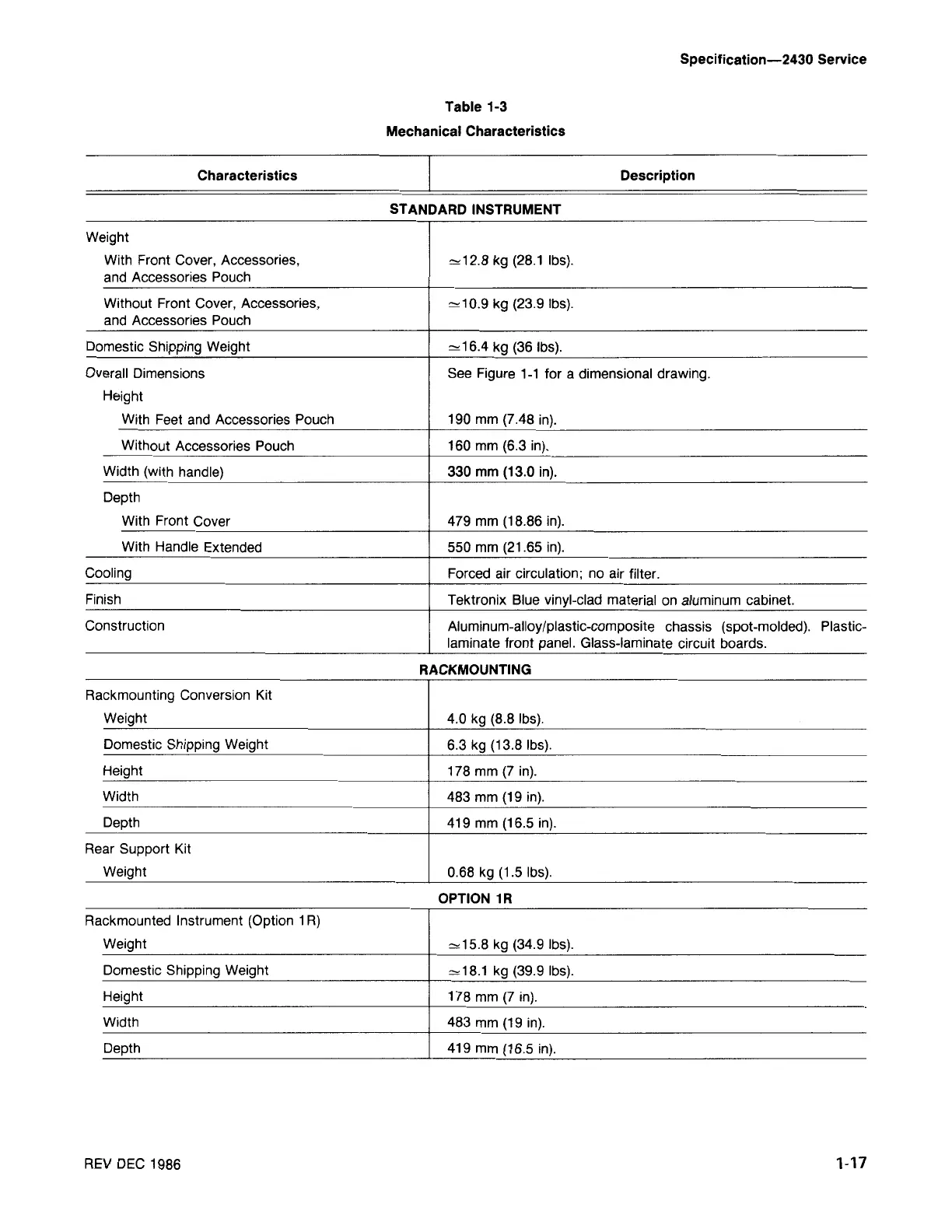

STANDARD INSTRUMENT
DescriptionCharacteristics
Table 1-3
Mechanical Characteristics
Specification-2430 Service
