Operating basics
22
AFG31000 Series Arbitrary Function Generator Service Manual
7. Select OK to perform calibration or Cancel to exit.

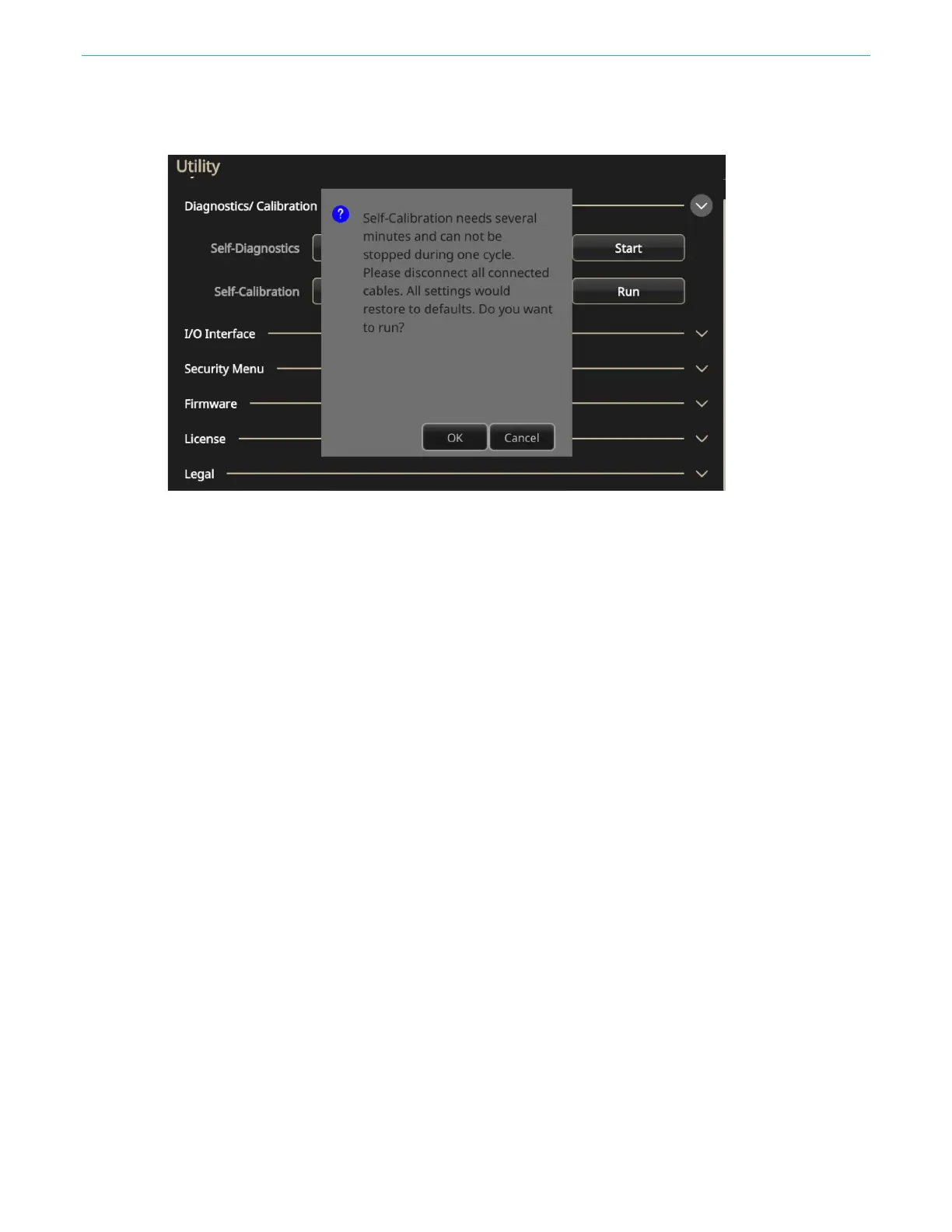

Figure 9: Run self-calibration
8. Wait until the test is completed. The diagnostics test takes eight minutes to complete.
9. Once calibration or diagnostics is executed, a dialog box displays the results including any errors.
Protection from overheating
The internal temperature of the AFG31000 Series instrument is monitored. A warning message is
displayed if the internal temperature reaches a specified level and signal output is automatically
turned off.
If the warning message appears, check for the following conditions:
 The ambient temperature requirement is correct.
 The required cooling clearance has been provided.
 The instrument fan is working properly.
