Tektronix AFG31000 Series Service Manual

Removal and installation
AFG31000 Series Arbitrary Function Generator Service Manual
49
Module front chassis removal and installation
You will need a torque-limiting Torx T-15 screwdriver for this procedure. Refer to the following figure
and follow the steps below to remove the module front chassis.
To remove the module front chassis:
1. Remove six screws attaching the front chassis to front cover by using T-15 screwdriver.
2. Disconnect the following cables:
a. Front panel cable
b. Display module flexible flat cable (FFC); (to disconnect the FFC, you should pull outward on the two
brown ears of the FFC connector on the display and pull out the FFC)
3. Pull the module front chassis out.
NOTE: To install the module front chassis, perform the removal procedure in reverse order.

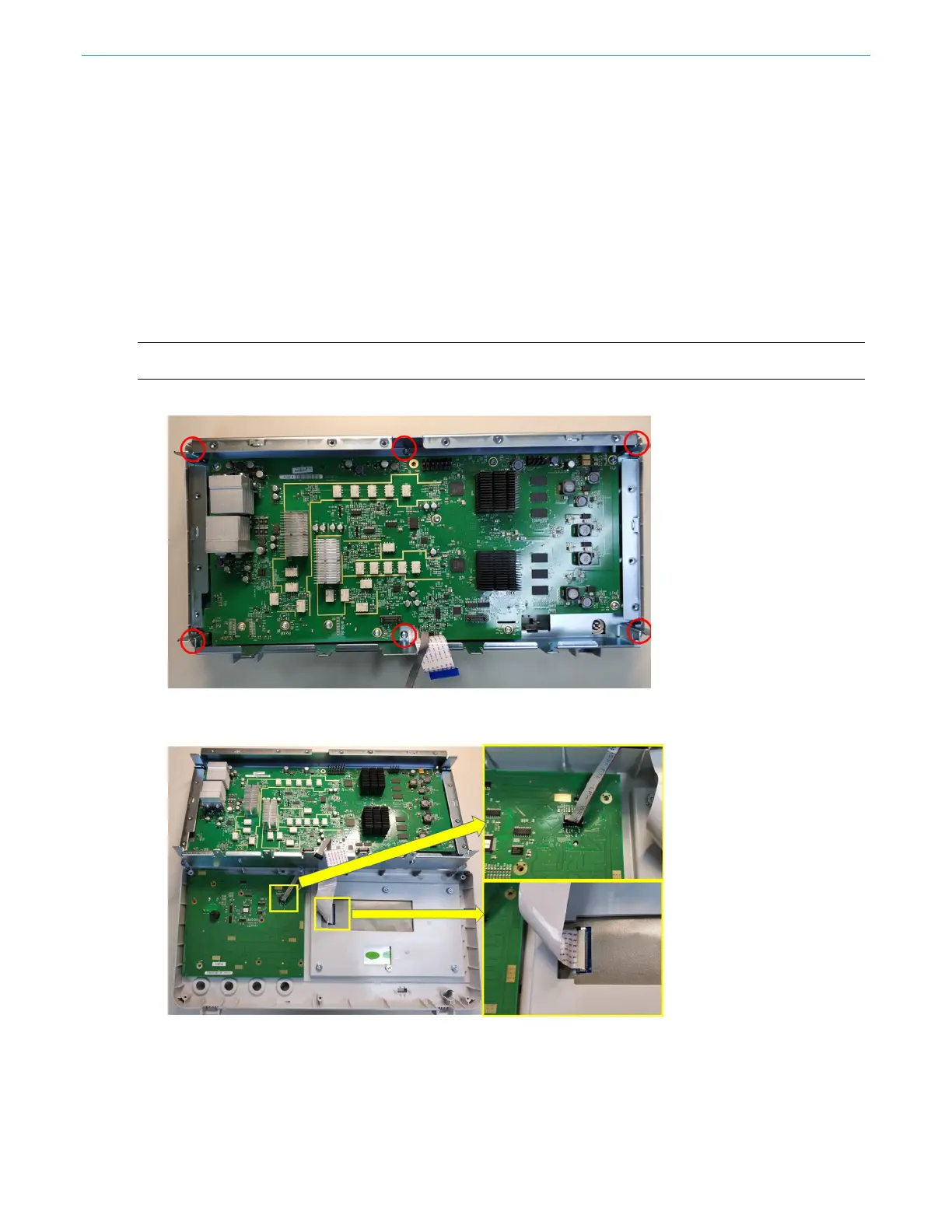

Figure 23: Module front chassis
Figure 24: Module front chassis cables
