Adjustment procedures
33
AFG31000 Series Arbitrary Function Generator Service Manual
Burst external trigger adjustment
NOTE: Make sure you have accomplished the Trigger delay adjustment procedure before
accomplishing this procedure. Also, do not reboot the AFG31000 until this procedure is completed.
This procedure adjusts trigger timing of two channels in burst external trigger mode.
NOTE: This adjustment is not necessary in the AFG31021, AFG31051, AFG31101, AFG31151 and
AFG31251.
Connect the arbitrary function generator to the oscilloscope and another AFG31000, as shown in the
following figure. The AFG31000 is the external trigger source.

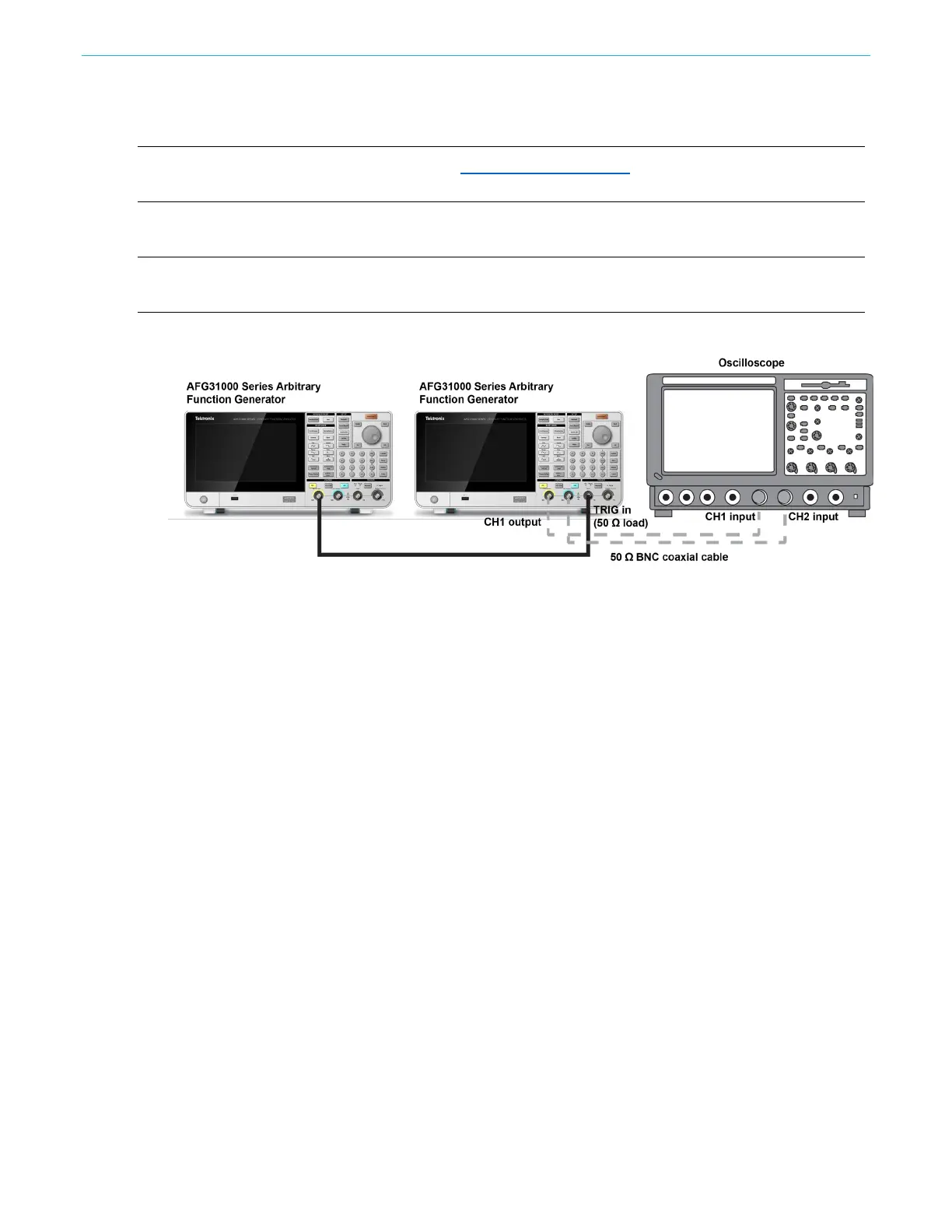

Figure 14: Instrument setup: burst external trigger adjustment
23. Select Default and OK on the AFG31000 to recall the arbitrary function generator default setup.
24. Select Default and OK to recall the arbitrary function generator default setup.
