Removal and installation
AFG31000 Series Arbitrary Function Generator Service Manual
55

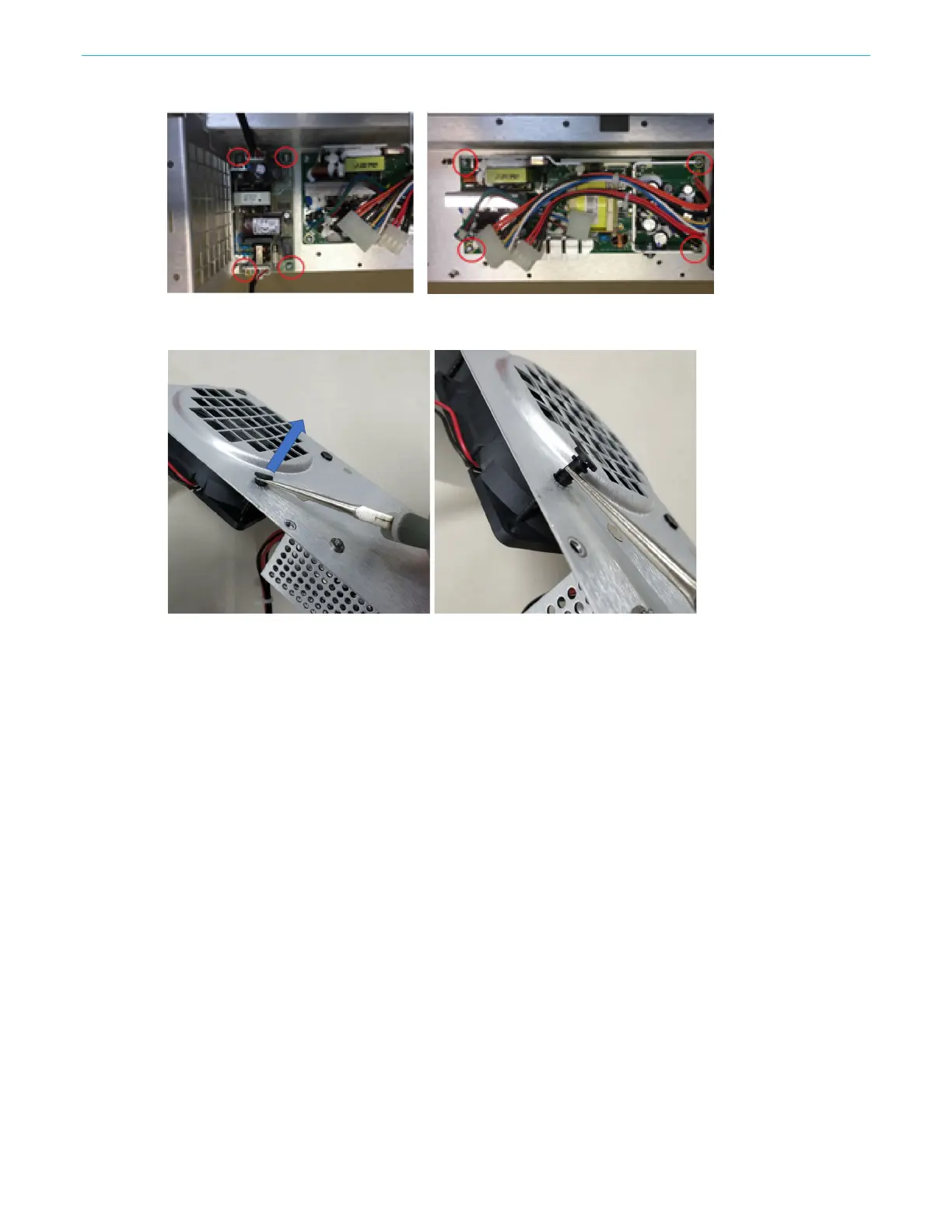

Figure 32: Power supply: Removal and distribution
Figure 33: Fan: Removal and installation
Diagrams
The diagrams in this section show how the modules in the different models of the AFG are
connected.
