Tektronix DPO70000SX Series User Manual

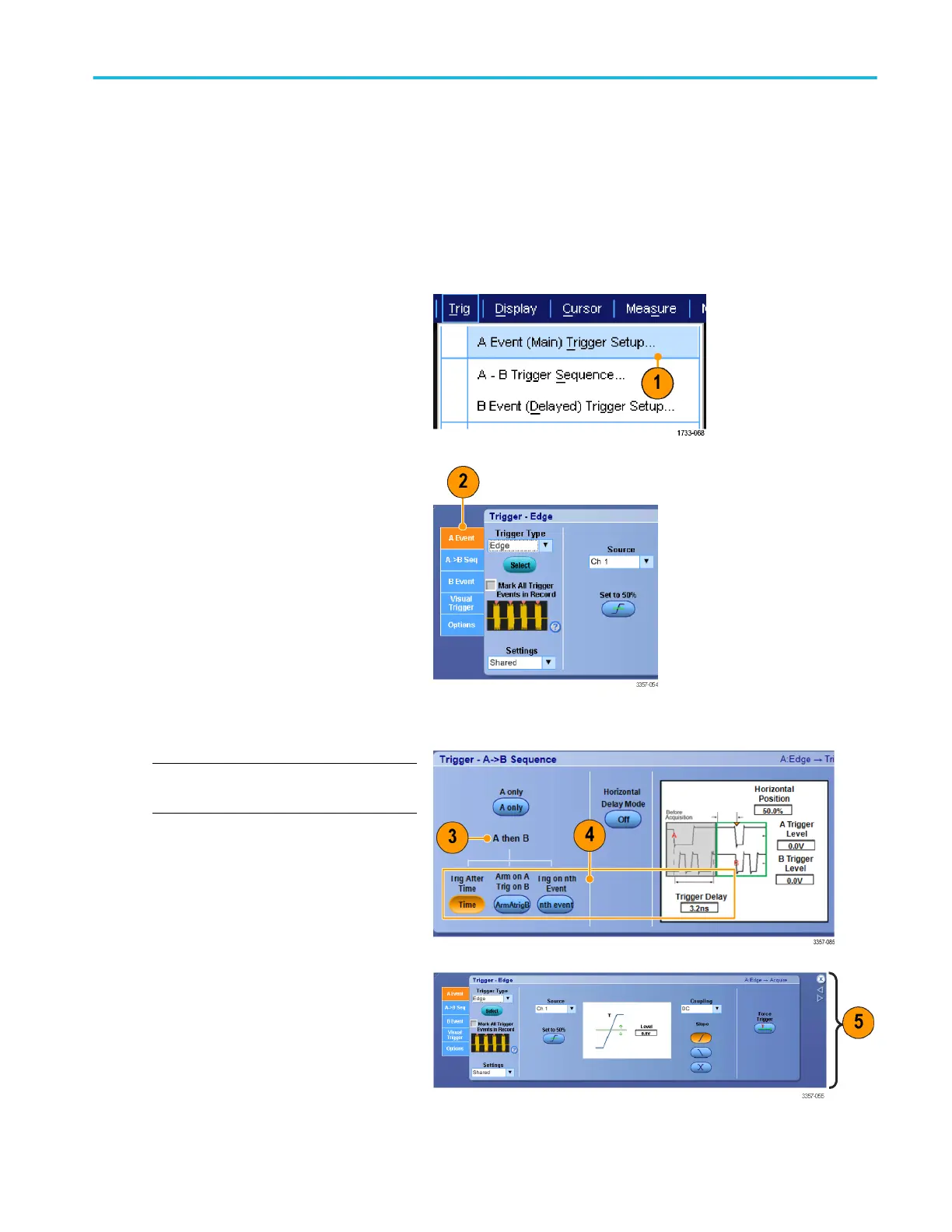

Using A (Main) and B (Delayed) triggers
You can use the A Event (Main) trigger for simple signals or combine it with the B Event (Delayed) trigger to capture more
complex signals. After the A Event occurs, the trigger system looks for the B Event before triggering and displaying the
waveform.
A trigger
1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the A
Event tab.
B trigger (Delayed)
NOTE. in a multi-unit system both the A and B
trigger sources must be from the same unit.
3. Choose a function in the A →B Seq tab.
4. Set the trigger delay time or the number
of B events.
5. Set the B trigger characteristics in the B
Event (Delayed) tab.
Pinpoint triggers
DPO70000SX Series User 85
