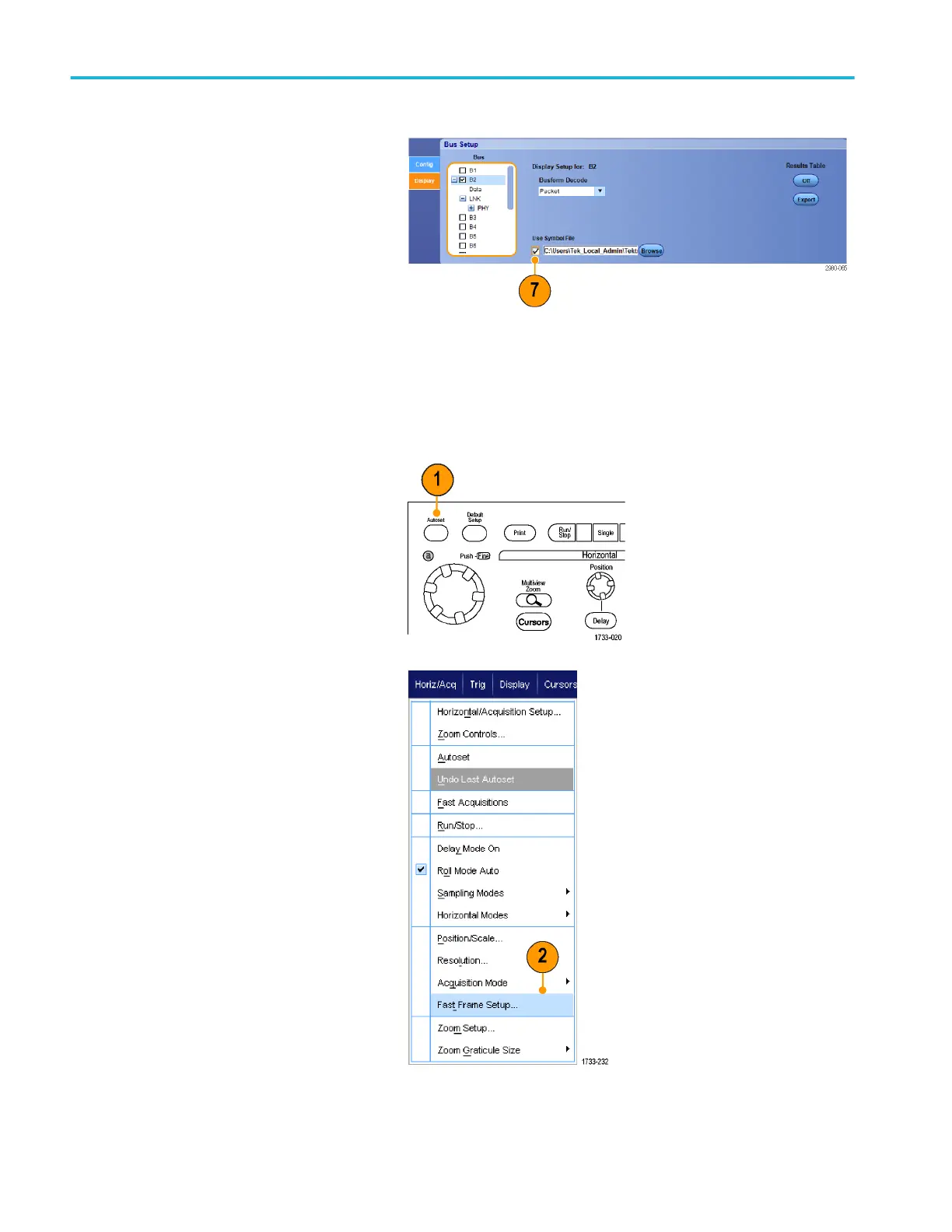

7. If using a symbol table, check Use
Symbol File. Click Browse and browse
to the symbol table file.
For some buses other settings are
available. Set the other settings as
appropriate for your bus.
See the online help for additional help
setting up a bus.
Using FastFrame mode
FastFrame allows you to capture many trigger events as single records in a larger record, and then view and measure each
record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between triggers of
two specified frames.
1. Use AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
2. Select Horiz/Acq > FastFrame Setup....
Acquisition
74 DPO70000SX Series User
