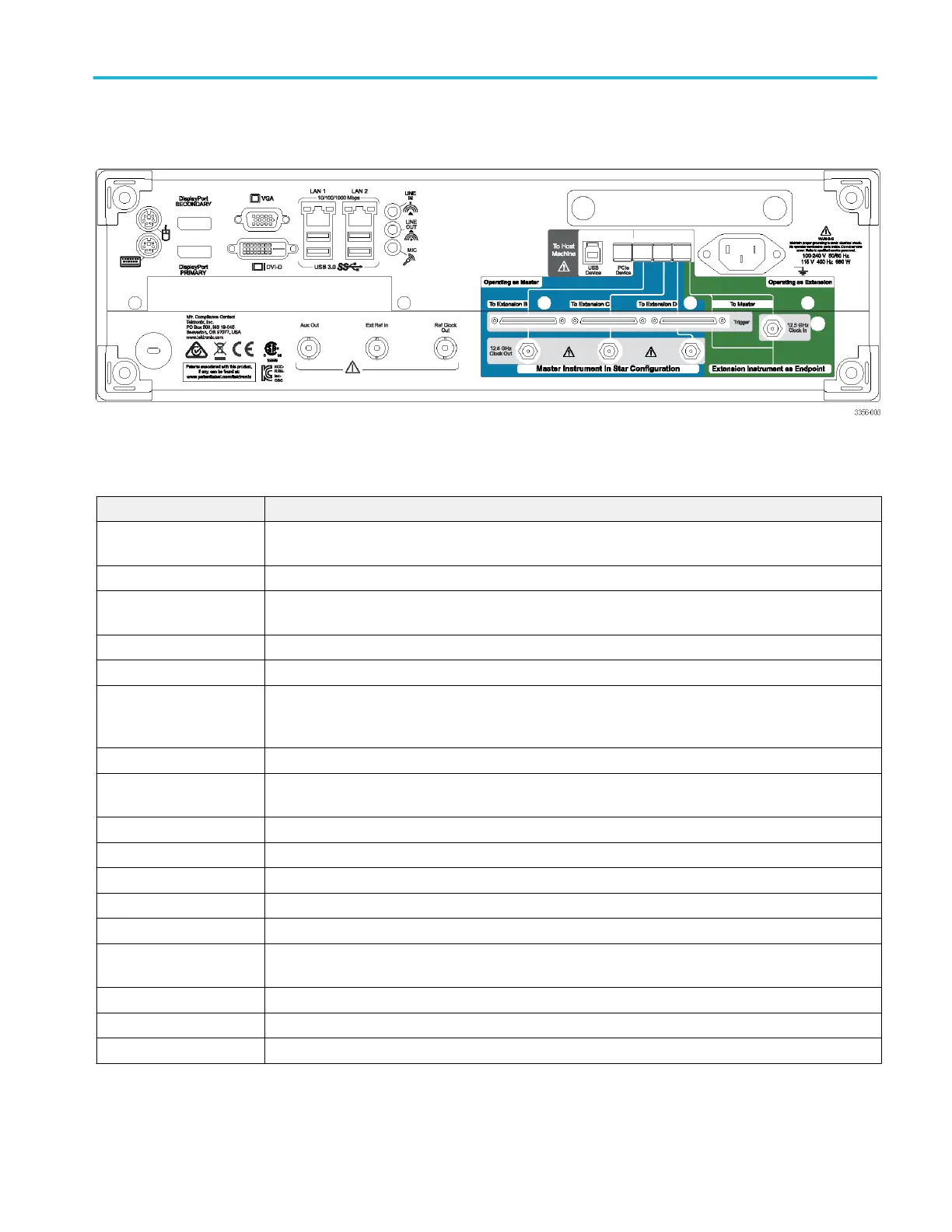

Rear-panel connectors
Table 7: Rear-panel connectors
Connector Description
PCIe PCIe port to connect external devices or to configure multi-instrument systems.
12.5 GHz Clock In SMA type connector to provide an external clock signal used in multi-instrument configurations.
12.5 GHz Clock Out SMA type connector to provide a high speed clock that is related to the sample rate. This clock is used in
multi-instrument configurations.
Trigger UltraSync trigger bus.
LAN RJ-45 connectors to connect the instrument to a network.
USB 3.0 Four USB 3.0 Host connectors (type A) to connect devices such as a mouse, keyboard, or other USB
devices. Tektronix does not provide support or device drivers for USB devices other than the supplied
mouse and keyboard.
USB USB device connector
VGA VGA port to connect a monitor for extended desktop operation. To connect a DVI monitor to the VGA
connector, use a DVI-to-VGA adapter.
DVI-D Use the DVI-D Video port to send the instrument display to a projector or to a flat-panel LCD monitor.
Display port These connectors provide digital display interfaces
PS/2 mouse This connector is for a PS/2 mouse.
PS/2 keyboard This connector is for a PS/2 keyboard
Audio These connectors provide microphone input, line in, and line out.
Auxiliary output SMA type connector provides a TTL-compatible, negative polarity pulse when the instrument triggers or
when certain other events occur, such as a mask test failure or completion.
Reference output SMA type connector to provide a synchronization signal to external devices.
External reference input SMA type connector to provide an external reference clock input.
Power Power cord input.
Getting acquainted with your instrument
DPO70000SX Series User 35
