Using a visual search
A visual search is performed with the same settings as the main trigger. The results of a visual search are displayed as marks
with a color distinct from those of an Analyze search. Do the following steps to set up a visual search.
1. Set up pinpoint triggers. See Choosing a
trigger type on page 81.
2. Set up a visual trigger. See Triggering
using visual triggers (Visual triggering) on
page 98.

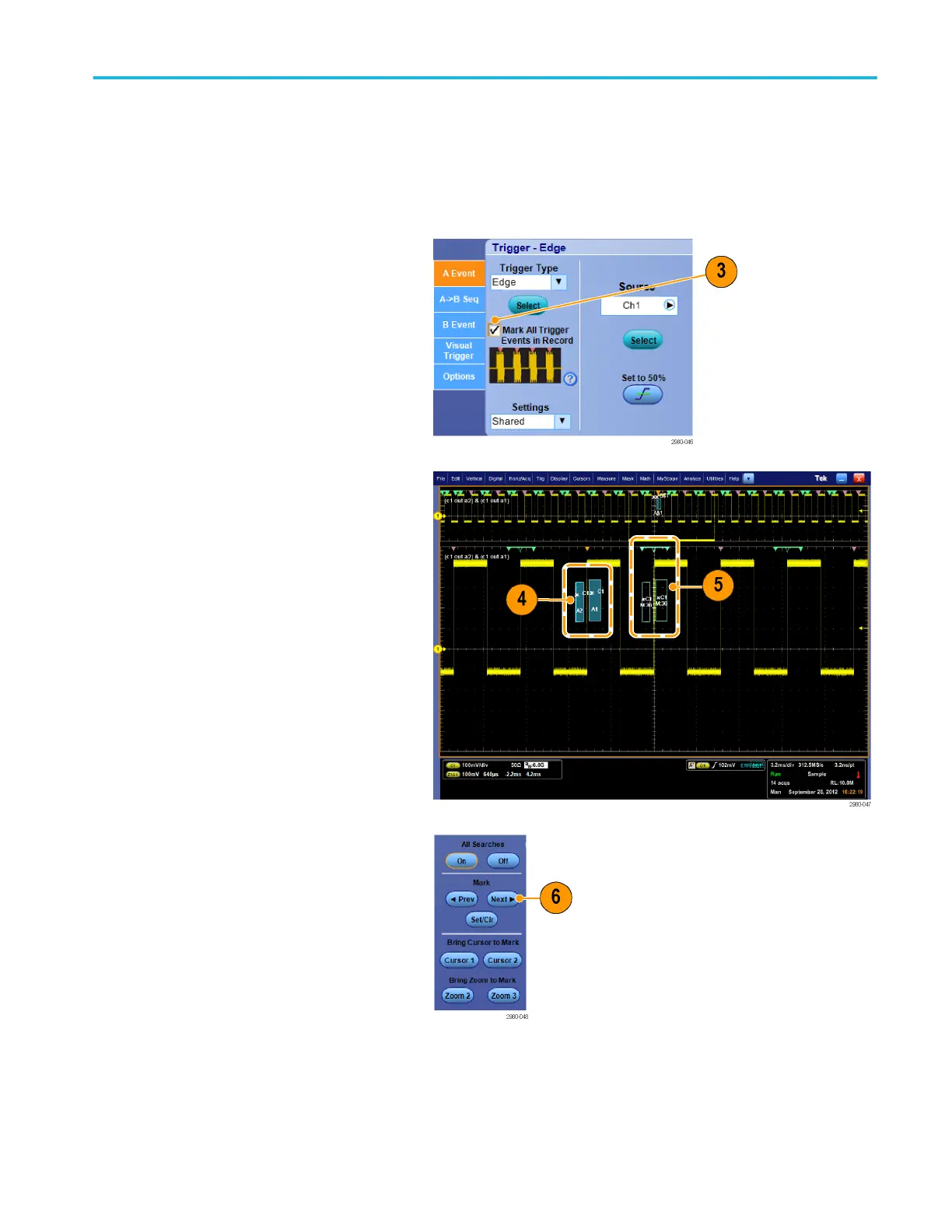

3. Click Mark All Trigger Events in
Record.
4. Visual Trigger areas are displayed in
blue.
5. Visual Search areas are displayed in
green.
6. Only the active visual search area is
displayed. Press the Mark Next and the
Mark Prev buttons to move the active
area to other visual search areas.
Use the other Analyze Search control
windows to control or view the results of
the Visual Search.
