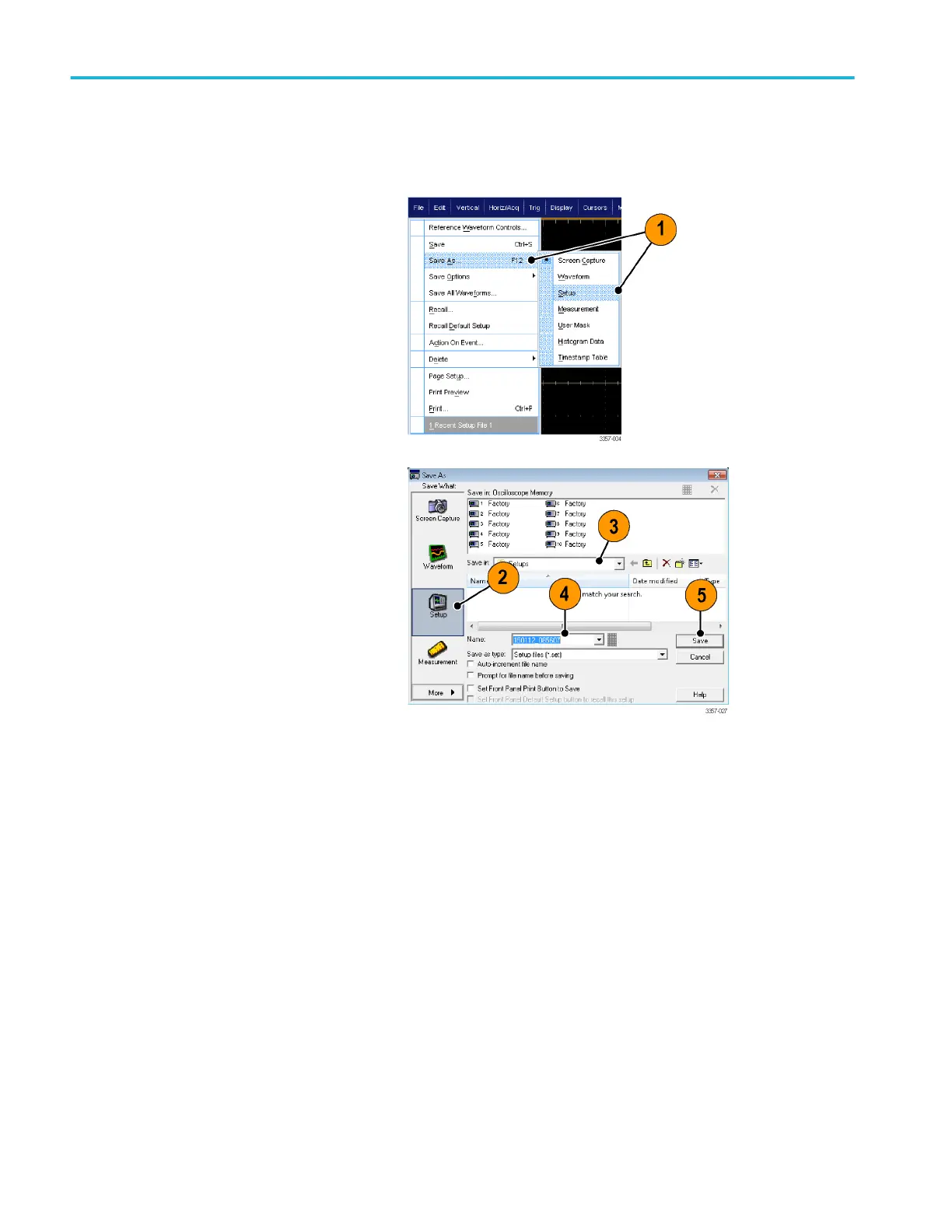

Saving instrument setups
1. Select File > Save or Save As >
Setup....
2. Click Setup.
3. Select the location where you want to
save the setup. Either save the setup to
the instrument memory in one of the ten
setup storage locations or as a .set file in
a Windows directory.
4. Type a file name or use the default name.
Use the pop-up keyboard to type a file
name for a setup saved to the instrument
memory.
5. Click Save.
Quick tips
If the touch screen is enabled, use the pop-up keypad to label the setups for easy identification.
Use Auto-increment file name to save similar files without having to retype the entire file name.
To quickly save multiple setups, select Set Front Panel Print Button to Save, and then click Save. You can now save a
setup by pushing the Print button on the Auxiliary Front Panel.
Saving and recalling information
168 DPO70000SX Series User
