Using FastAcq
Fast acquisition mode reduces the dead time between waveform acquisitions, enabling the capture and display of transient
events such as glitches or runt pulses. Fast acquisition mode can also display waveform phenomena at an intensity that reflects
their rate-of-occurrence. FastAcq is not available on ATI channels and on some instrument configurations.

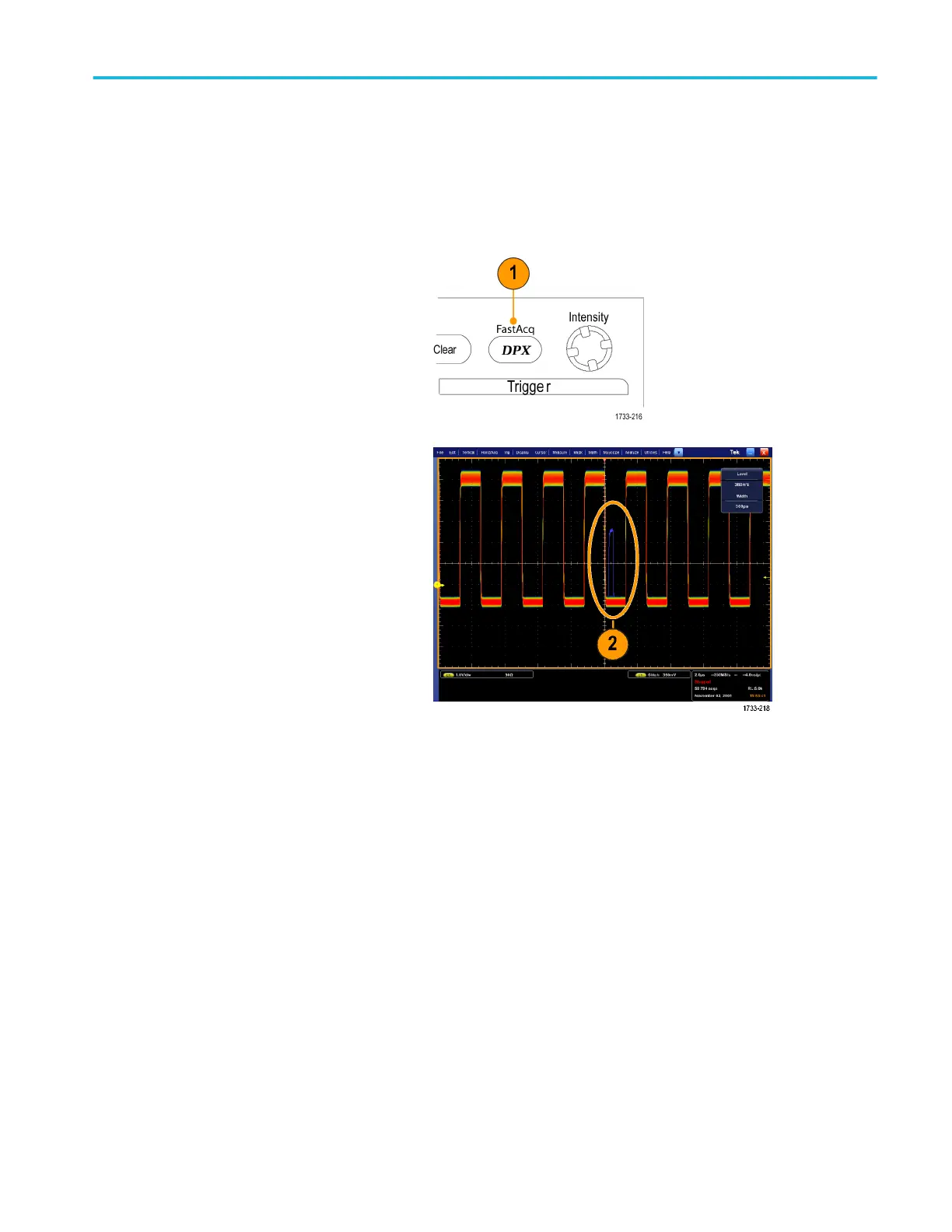

1. Push FastAcq on the optional front
pannel or select Horiz/Acq > Fast
Acquisition.
2. Find glitches, transients, or other random
events.
When you have identified an anomaly,
set the trigger system up to look for it.
See Capturing intermittent anomalies on
page 179.
Quick tips
■
To optimize for capturing details or rare events, select Horiz/Acq > Horizontal/Acquisition Setup > Acquisition> Fast
Acq, and then select Optimize For Capturing Details or Capturing rare events.
Acquisition
DPO70000SX Series User 63
