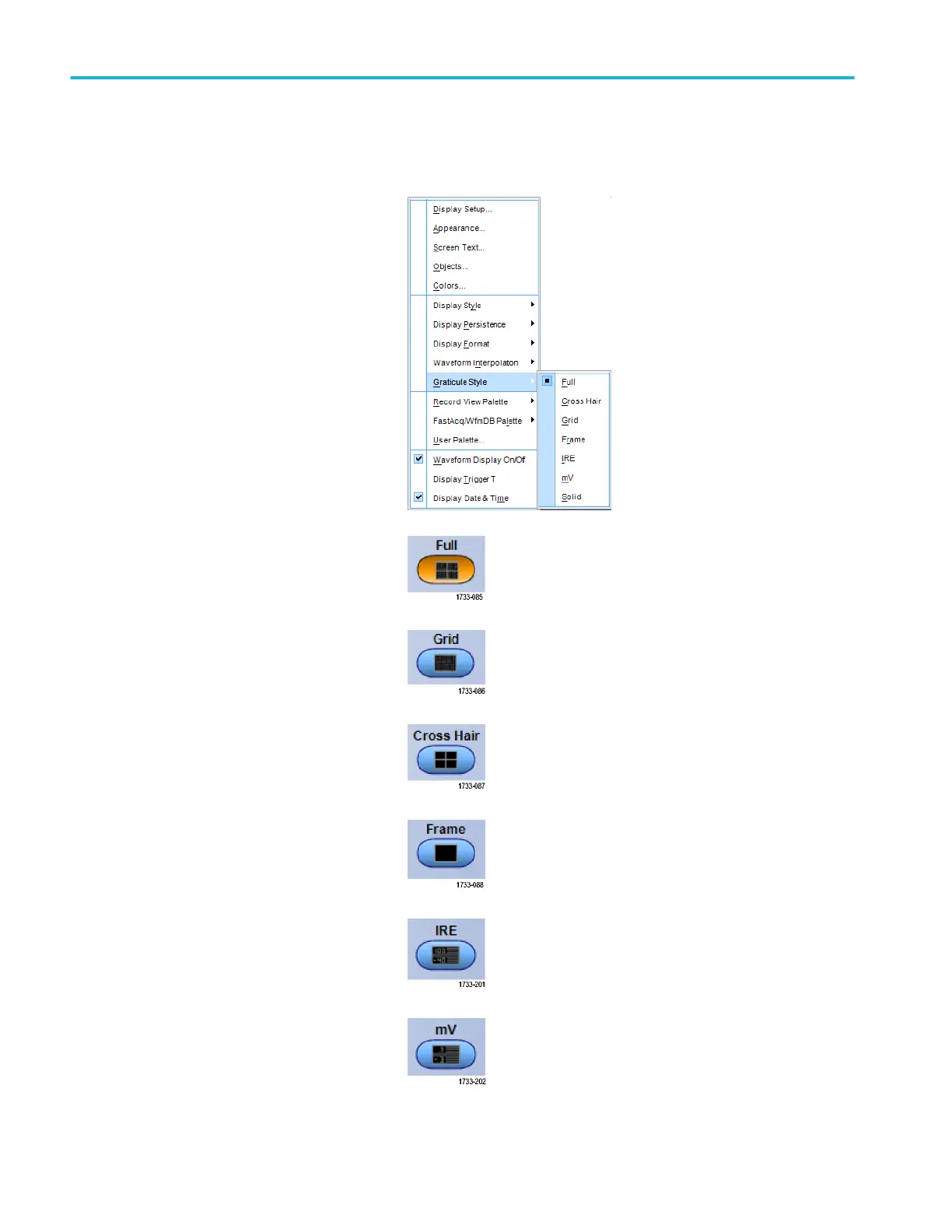

Setting the graticule style
To set the graticule style, select Display >
Graticule Style, and then select one of the
following styles:
Use for quick estimate of waveform
parameters.
Use for full-screen measurements with cursors
and automatic readouts when cross-hairs are
not needed.
Use for making quick estimates of waveforms
while leaving more room for automatic
readouts and other data.
Use with automatic readouts and other screen
text when display features are not needed.
Use for NTSC video signals.
Use for video signals other than NTSC
Display a waveform
110 DPO70000SX Series User
