Triggering on a parallel bus
Locate problems by triggering on a parallel bus.

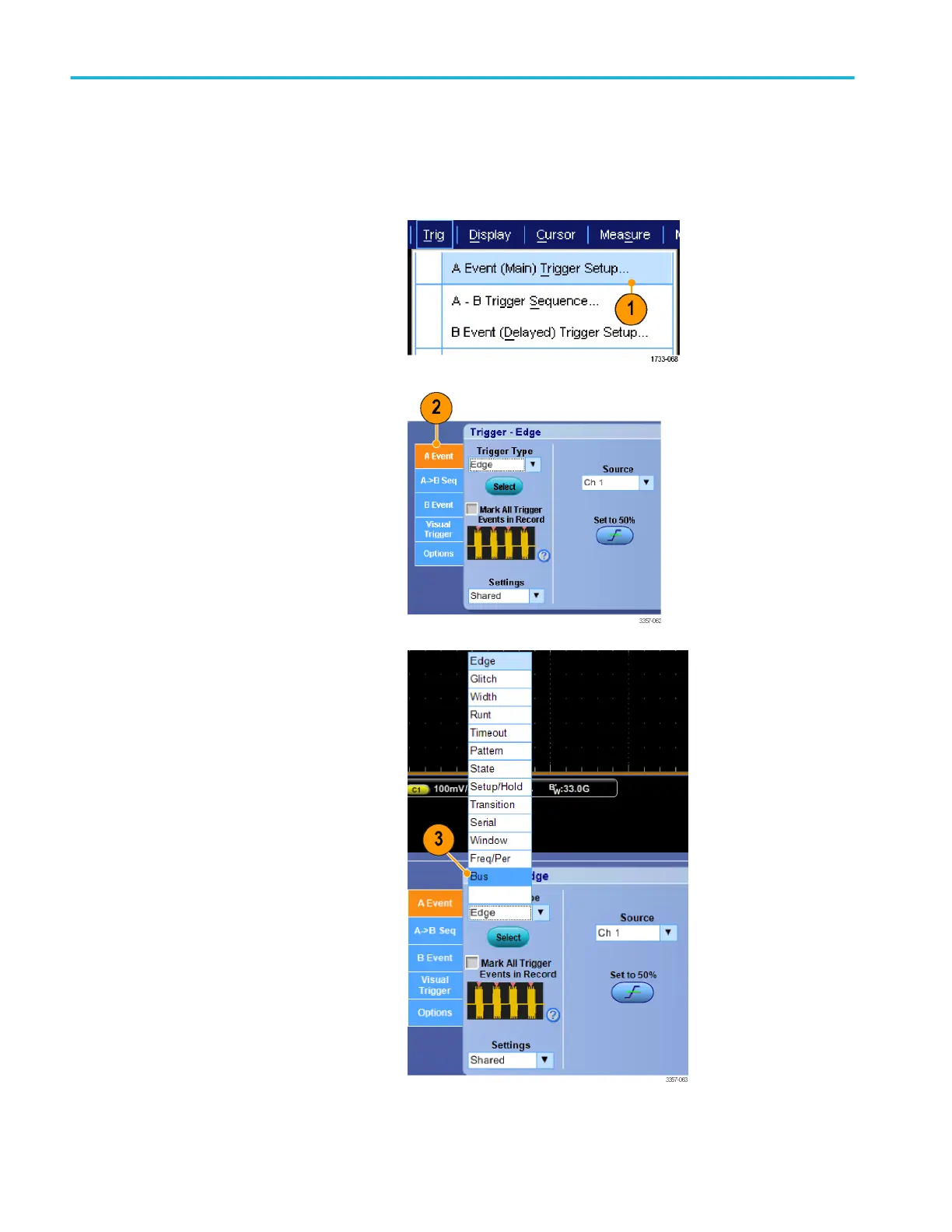

1.
Set up a parallel bus. See
Setting up a
bus
on page 68. Select
Trig > A Event
(Main) Trigger Setup...
.
2.
Select the A Event tab.
3.
Select the
Bus
Trigger Type.
Pinpoint triggers
94
DPO70000SX Series User
113
115
