Using DSP enhanced bandwidth
If your instrument has the enhanced bandwidth feature, use the DSP (digital signal processing) enhanced bandwidth for more
accurate rise time measurements, to extend the bandwidth, and flatten the passband at the full sample rate. The enhanced
bandwidth provides a matched response across enabled channels so you can perform channel-to-channel comparison and
differential measurements.

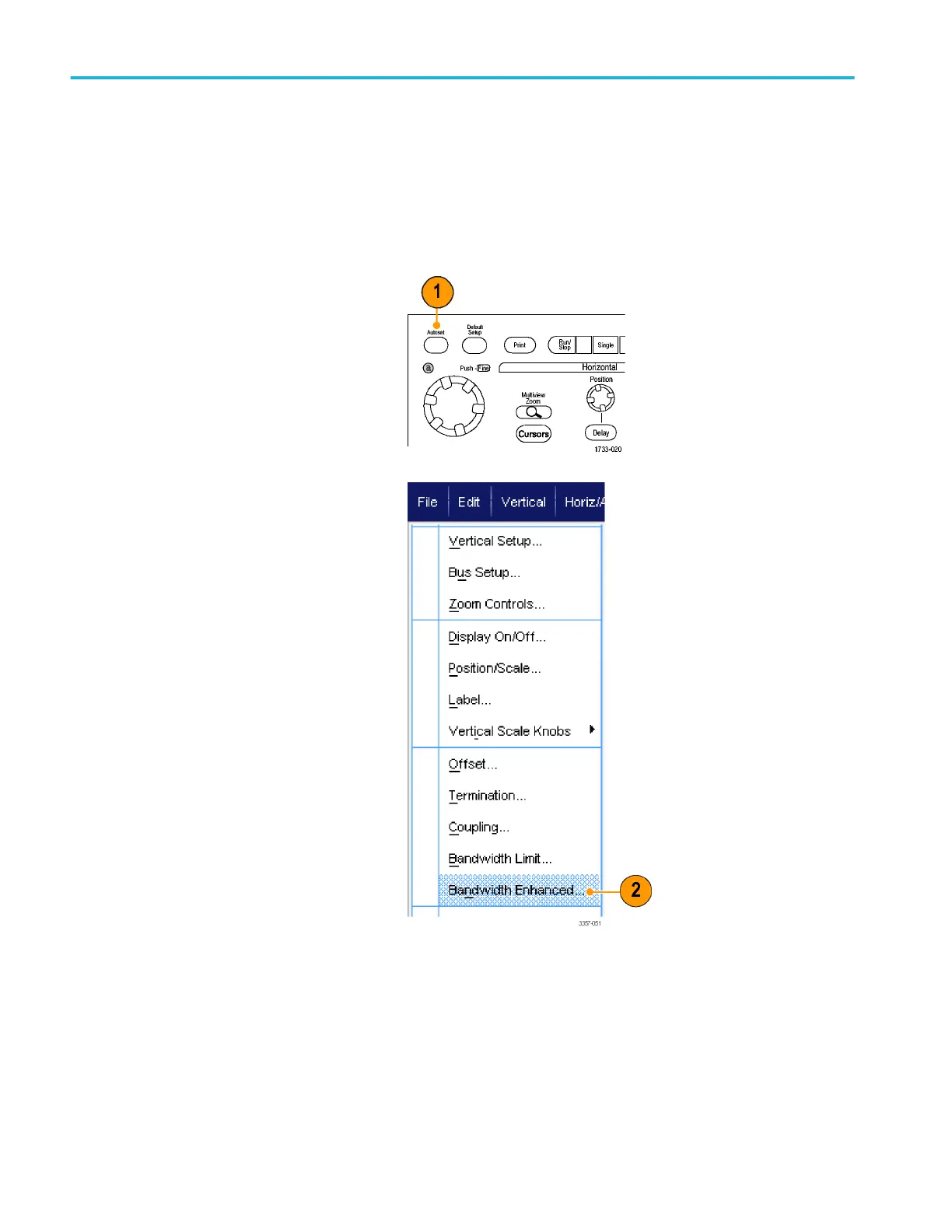

1. Use AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
2. Select Vertical > Bandwidth
Enhanced....
Acquisition
64 DPO70000SX Series User
