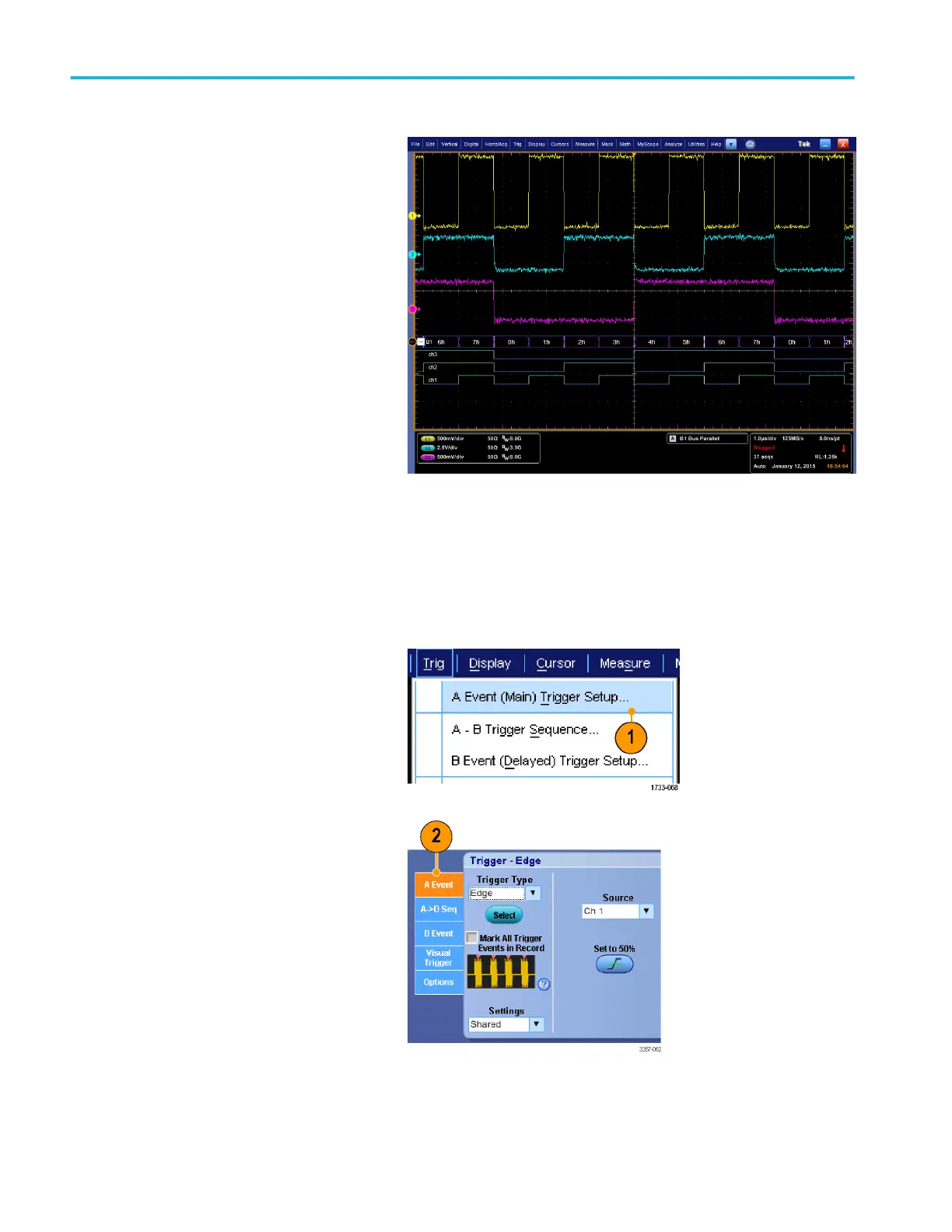

8.
Analyze your waveforms.
Triggering on a serial bus
Locate problems by triggering on a serial bus.
Set up a serial bus. See
Setting up a bus
on
page 68.
1.
Select
Trig > A Event (Main) Trigger
Setup...
.
2.
Select the A Event tab.
Pinpoint triggers
96
DPO70000SX Series User
115
117
