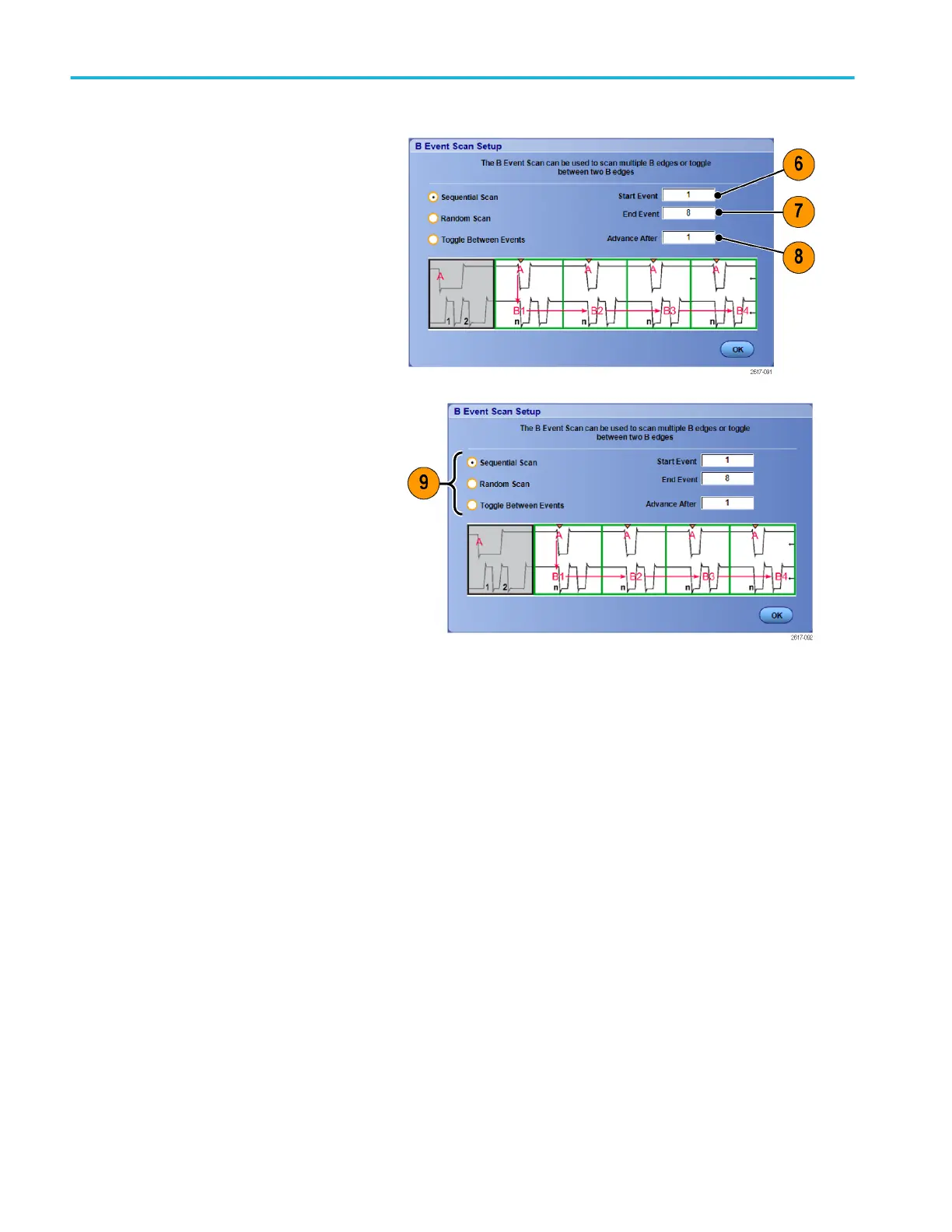

6. Set the B Event start value.
7. Set the B Event ending value.
8. Set the number of acquisitions before the
B Event value is incremented.
9. Select the method that the B Event value
is incremented after the selected number
of acquisitions occur:
Sequential Scan increments by 1 until
the End Event is reached. When the End
Event is reached, the B Event value is
reset to the Start Event value and the
process starts over.
Random Scan sets the B Event value to
a random value between the Start Event
and the End Event for each set of
Advance After acquisitions.
Toggle Between Events toggles the B
Event value between the Start Event and
the End Event for each set of Advance
After acquisitions.
Pinpoint triggers
92 DPO70000SX Series User
