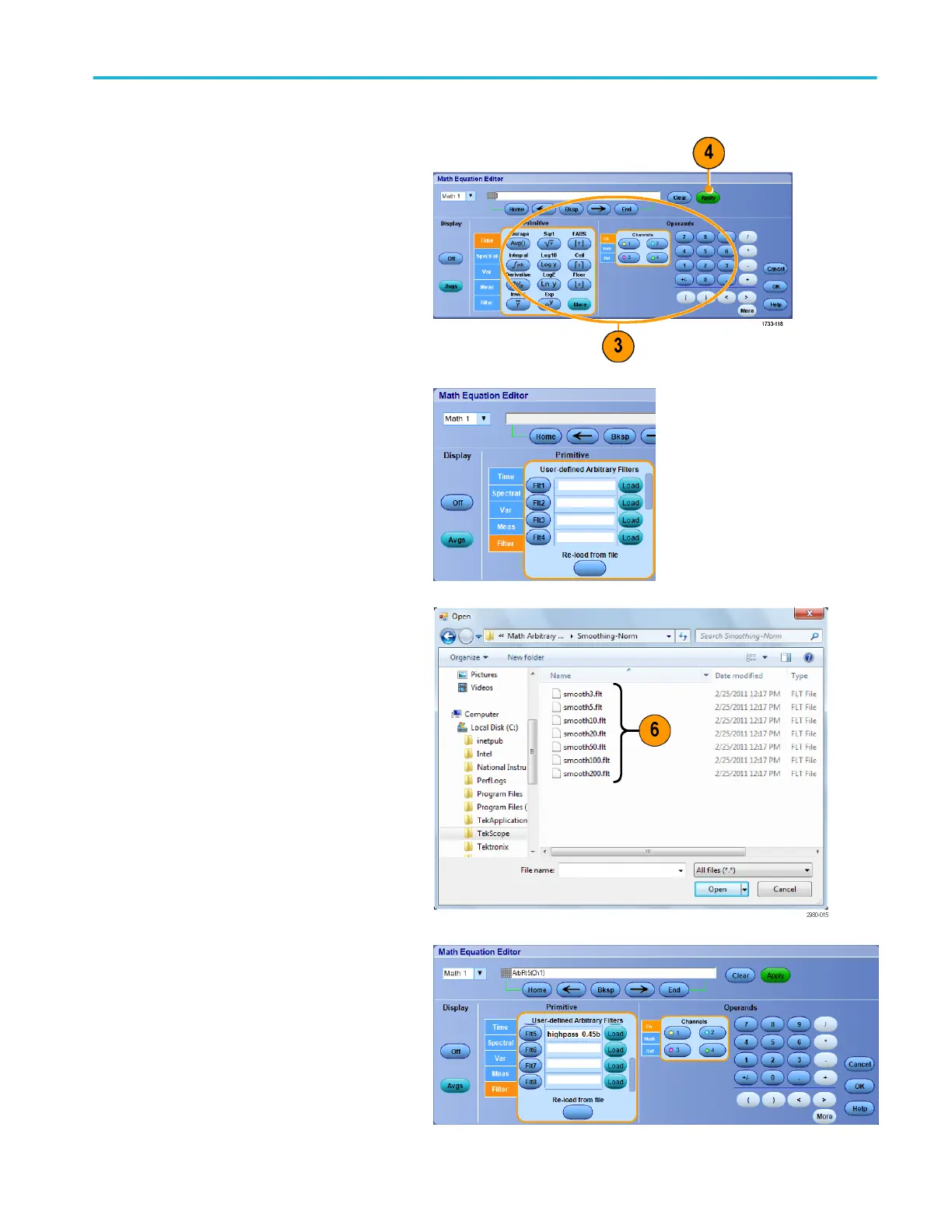

3. Build your advanced math waveform
expression using sources, operators,
constants, measurements, variables, and
functions.
4. When you have defined the expression to
your satisfaction, click Apply.
5. To add your own filter, click the Filter tab.
Click Load.
6. Double click the folder for the filters you
want to use. Double click the filter you
want to use.
7. Build your math expression using the
filter you selected.
8. When you have defined the expression to
your satisfaction, click Apply.
Analyzing waveforms
DPO70000SX Series User 143
