Rear-panel overview
The following figure shows the rear panel of the 4200A-SCS. The connectors and components are
summarized following the figure.

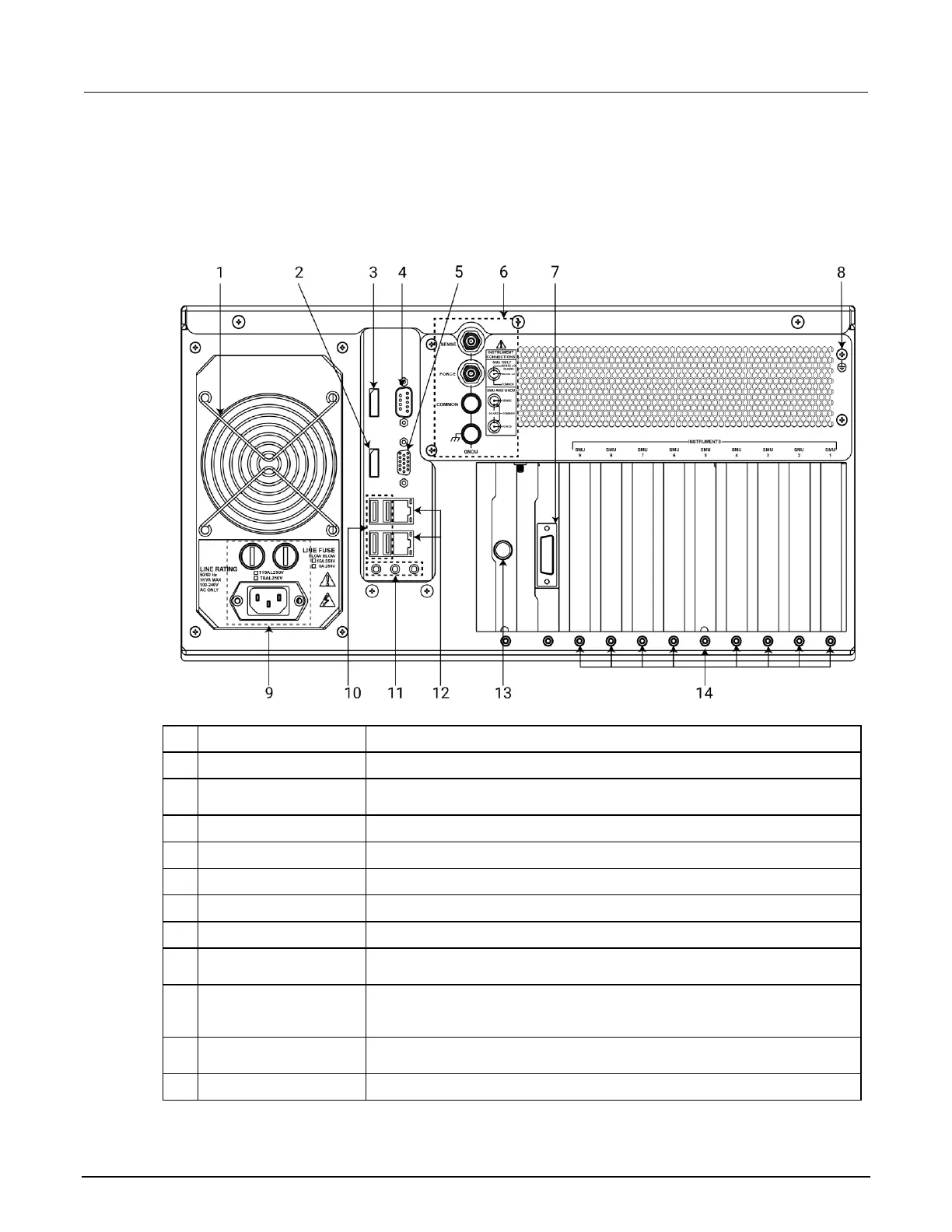

Figure 4: 4200A-SCS rear panel
1
Fan
Provides system cooling.
2
DP port
Provides a standard DisplayPort connection. Supports up to v1.2.
3
HDMI port
Provides a standard High Definition Multimedia Interface (HDMI
®
) connection.
Supports up to v1.3.
4
Serial port
Connects to an RS-232 peripheral.
5
External monitor port
15-pin video connector.
6
Ground unit
Provides system-level SENSE, FORCE, and COMMON connections.
7
IEEE-488 connector
Connects to peripherals with a GPIB interface.
8
Grounding screw
Connects to protective earth (safety ground).
9
Power receptacle and
line fuses
Connects to line power through supplied line cord. Two line fuses protect the
instrument.
10
Four v3.0 USB
connectors
Allows you to connect to peripherals such as keyboards, pointing devices,
printers, flash drives, external hard drives, and printers that are compatible
with the USB v3.0 standard.
11
Microphone and speaker
connectors
Provides microphone, left speaker, and right speaker connections.
12
Two LAN connectors
Two gigabit LAN connectors interface the unit to ethernet local networks.
