Section 3: Keithley Configuration Utility (KCon) Model 4200A-SCS Setup and Maintenance User's Manual
3-2 4200A-908-01 Rev. A December 2020
KCon main window
When KCon starts, the KCon main window shown in the figure below opens.
The System Configuration list provides a tree view of all instruments and equipment in the
4200A-SCS system configuration. To expand or minimize the tree, select the arrows to the left of
each system component.
The Properties area displays information about the selected instrument. Each instrument in the
System Configuration list has properties.
You may need to use the scroll bar to view the entire system configuration.

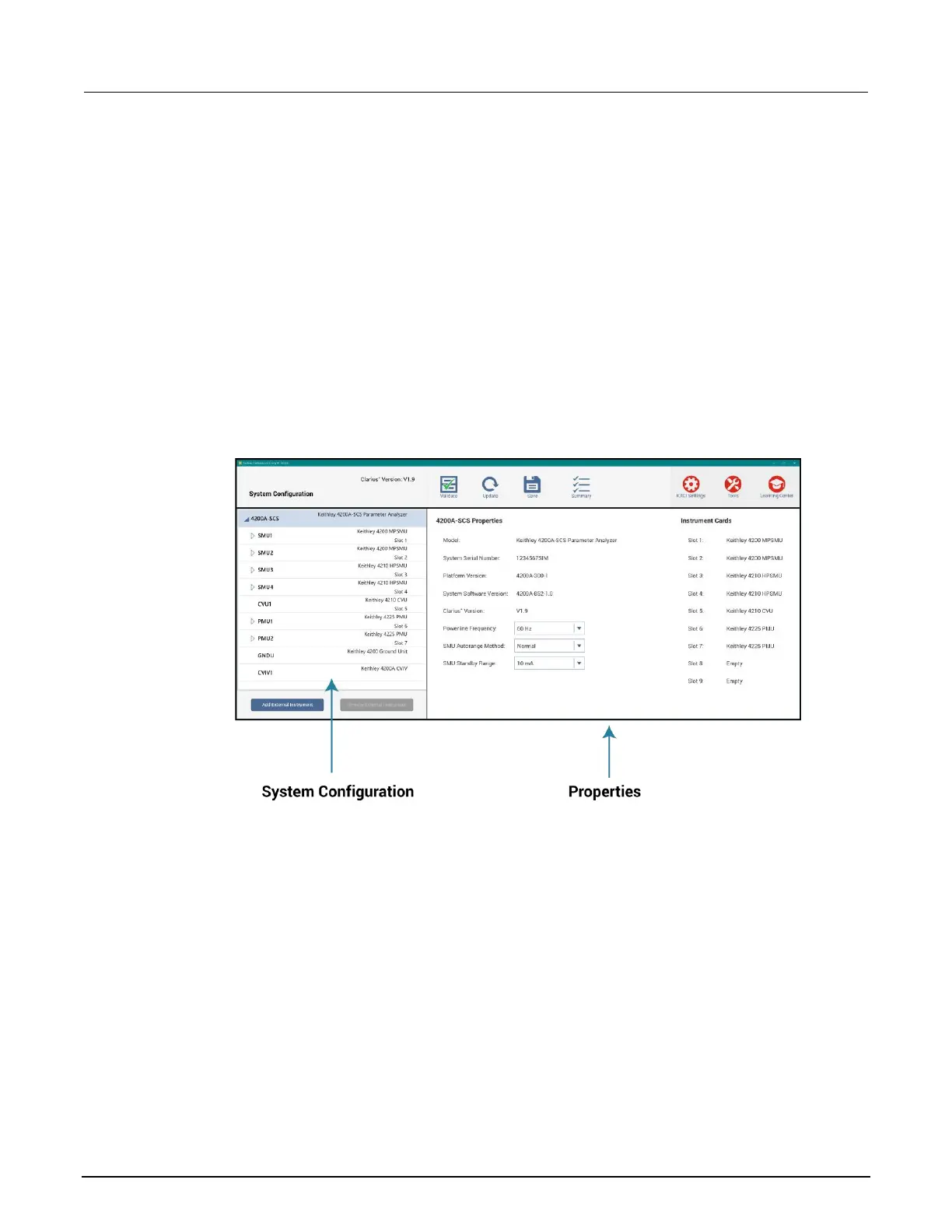

Figure 14: KCon main window
