Mounting a preamplifier in a remote location
The 4200-PA can be mounted remotely using an optional mounting kits. Follow the steps below to
remotely mount and connect the preamplifier. Refer to the instructions provided with the remote
mounting kit for detailed information on physically mounting the preamplifier module.
If you remove the preamplifiers to mount them at a remote site, install the screws in the chassis and
retain the bracket for future use.
The preamplifiers are matched to the SMUs that they were originally connected to. Ensure that each
preamplifier is connected to its original SMU.
To mount the 4200-PA in a remote location:
1. Ensure system power is turned off.
2. Disconnect the line cord.
3. Mount the preamplifier at the remote location using the appropriate mounting kit.
4. Connect the control cable between the preamplifier control connector on the preamplifier and the
PA CNTRL connector on the SMU as shown in the following figure.

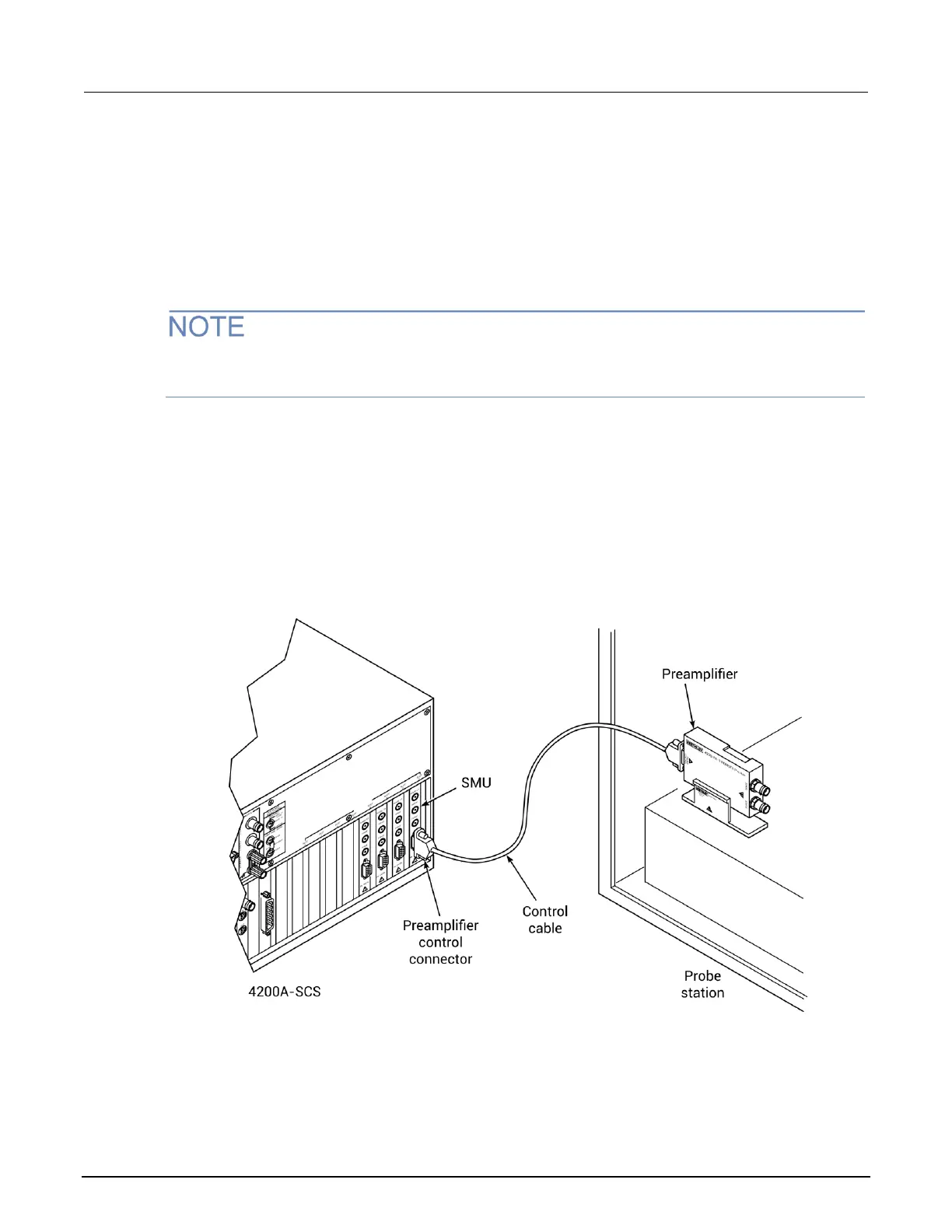

Figure 10: Typical preamplifier remote mounting
5. Make sure that the connecting cable is secure at both ends.
6. In KCon, run Update. For more information, see “Keithley Configuration Utility (KCon)” in Model
4200A-SCS Setup and Maintenance User's Manual.
