Tektronix TBS2000B Series Demo Guide

4. Triggering the Scope (2/2)
Although the square wave signal of the probe
compensation does not require pulse width triggering,
we will set it up for demonstration purposes.
8. Note that the Source is CH1 and the Polarity is
Positive
9. Press Trigger When, and use the MPK to select
Pulse Width >. Change the pulse duration to >
10ns. Since the pulse width is much greater
than 10 ns, the waveform triggers (Figure 7).
10. Press Menu On/Off button below the display to
exit the menu

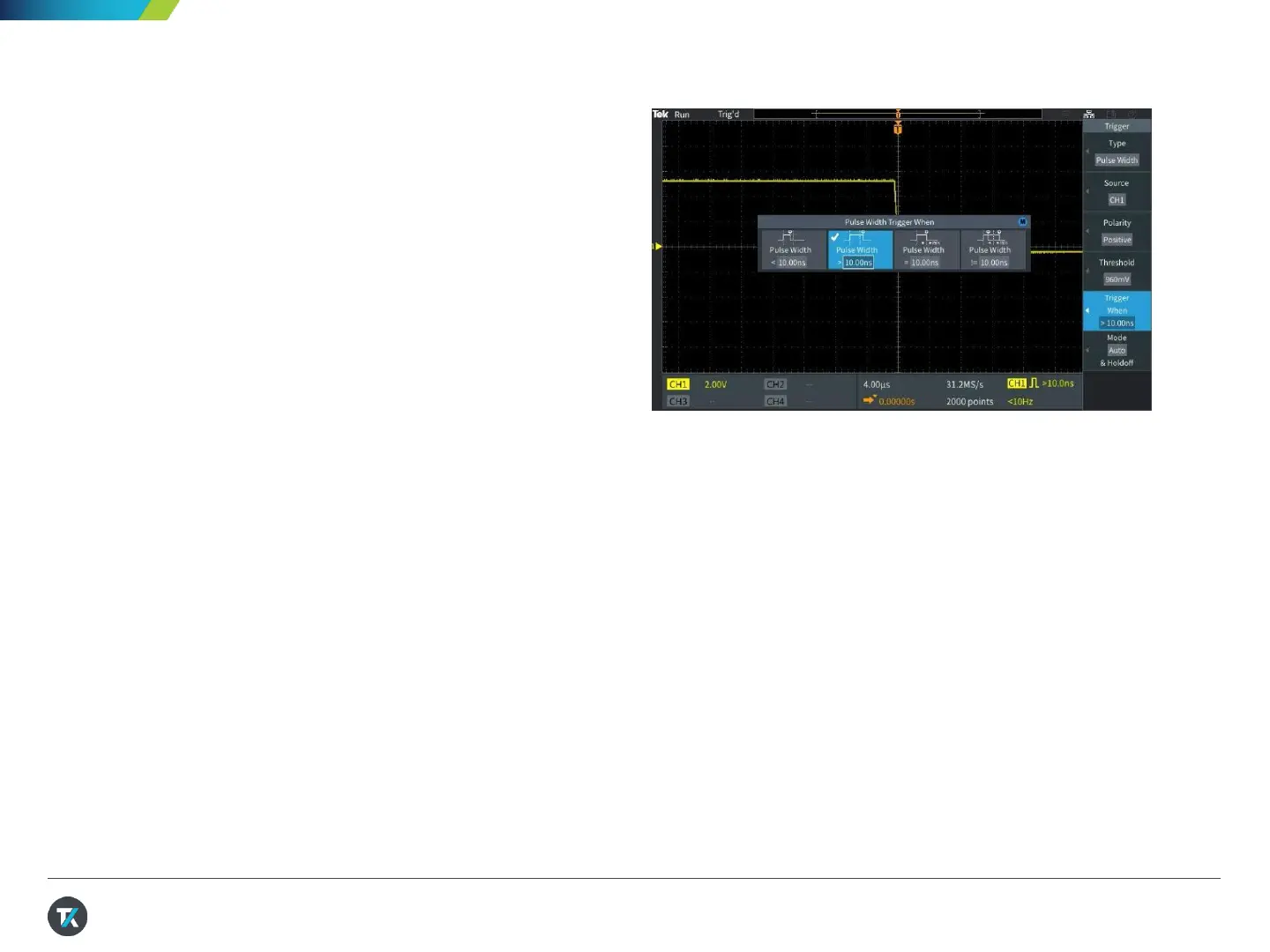

Figure 7. Setting pulse width trigger parameters
