Tektronix TBS2000B Series Demo Guide

1. Activating HelpEverywhere Tips
While you’re learning your way around the scope,
HelpEverywhere provides helpful tips. Once you
become proficient, you can turn the tips off if you
wish.
1. Press Help button on the front panel
2. Press HelpEverywhere bezel button (Figure 1).
3. Select Set All to On by pressing the
Multipurpose Knob (MPK)
4. When you use the Trigger, Measure, and
Cursor function later on, you’ll see
HelpEverywhere tips that explain trigger
modes, measurements, and cursor types
(Figure 2).

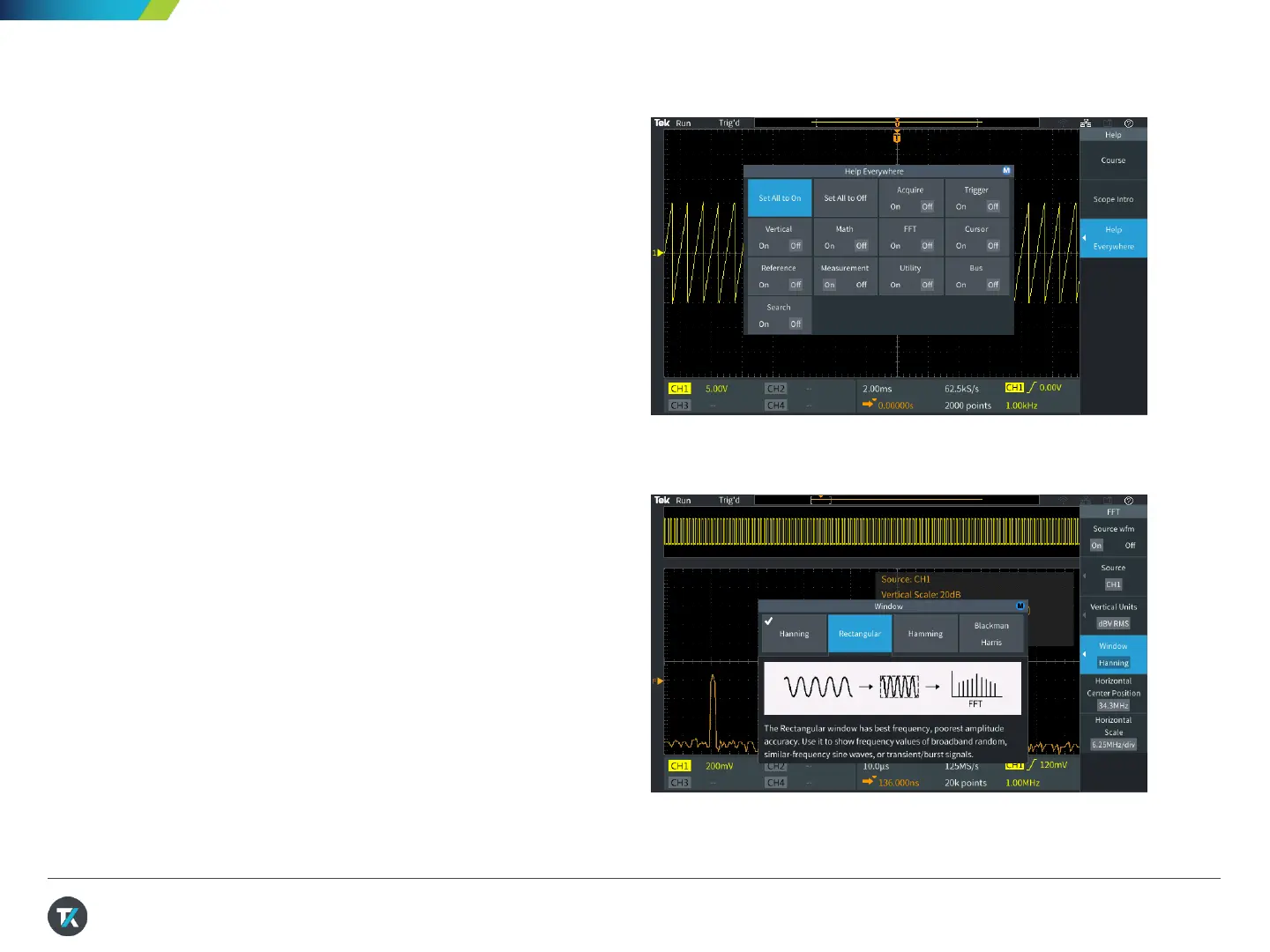

Figure 1. Turning on HelpEverywhere
Figure 2. A HelpEverwhere tip helps with FFT setup. You’ll
see more tips as you work through the rest of this booklet.
9
