Tektronix TBS2000B Series Demo Guide

6. Using Cursors to Measure
Time andAmplitude(1/2)
Cursors enable quick visual measurements on the
selected waveform. The TBS2000B features on-
waveform readouts to make it easy to visualize
measurements.
1. Press Default Setup. Press Autoset.
2. Press the Cursors button beside the MPK
(Figure 10).
3. Press the Screen bezel button to select
independent control of both amplitude and time
cursors.
4. Turn the MPK to move the left time cursor close
to the position you would like to measure.
5. To position the cursor more precisely, press the
Fine button. Now turn the MPK to left cursor
exactly on a rising edge of the signal.
6. Press the MPK to change control to the right
time cursor. Turn the MPK and use Fine to
position the cursor on the next rising edge.

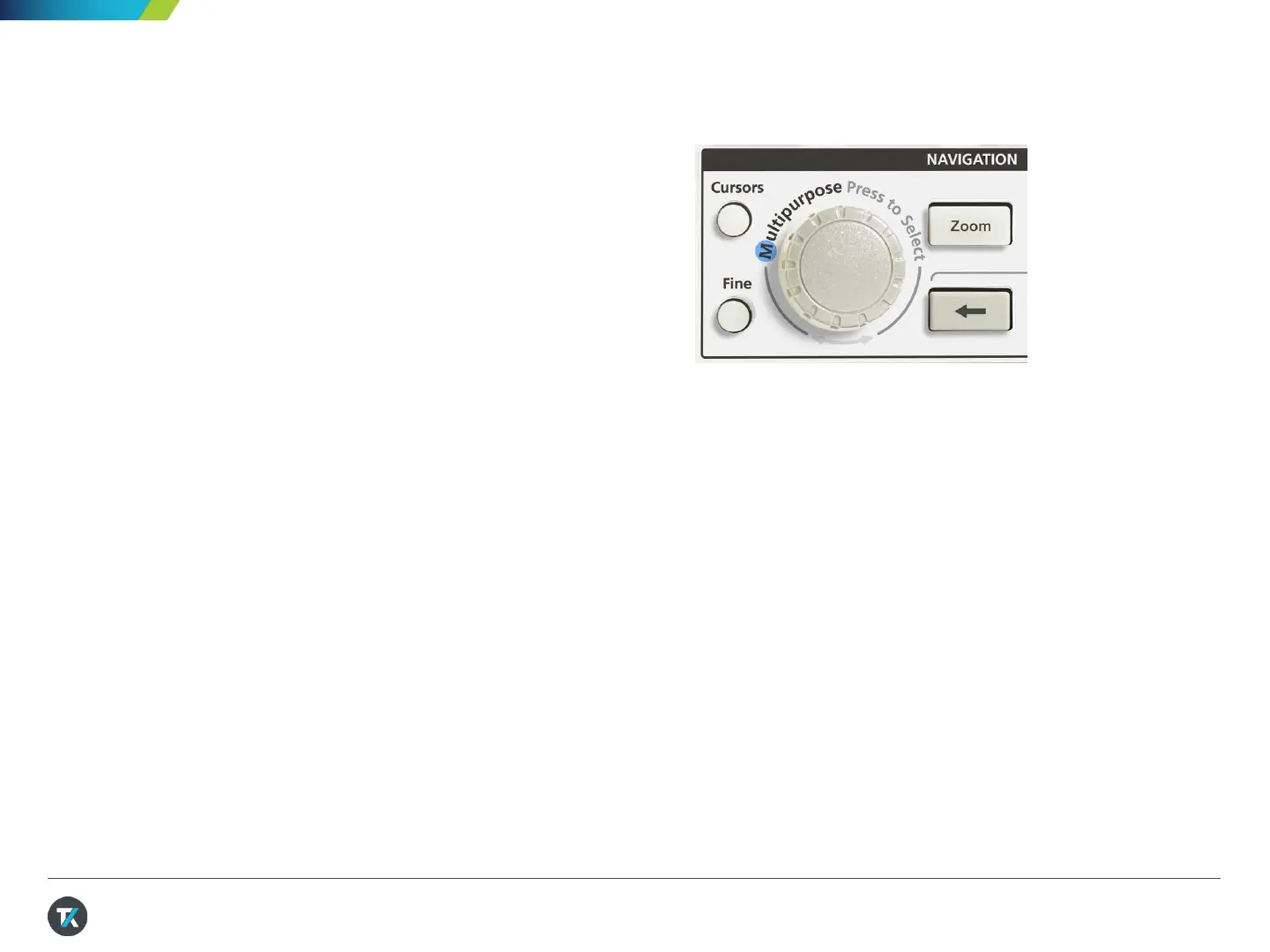

Figure 10. Location of the Cursors and Fine
buttons (two-channelmodel shown)
16
