Tektronix TBS2000B Series Demo Guide

6. Using Cursors to Measure
Time andAmplitude(2/2)
Cursors enable quick visual measurements on the
selected waveform. The TBS2000B features on-
waveform readouts to make it easy to visualize
measurements.
7. Note the delta time readout between the cursors
and the time position for each bar.
8. Press MPK again to change control to the upper
cursor for amplitude measurements. Move the
cursor to the top of the signal and note the delta
readout (Figure 11).
In the next section, you’ll use automated
measurements to get similar results.

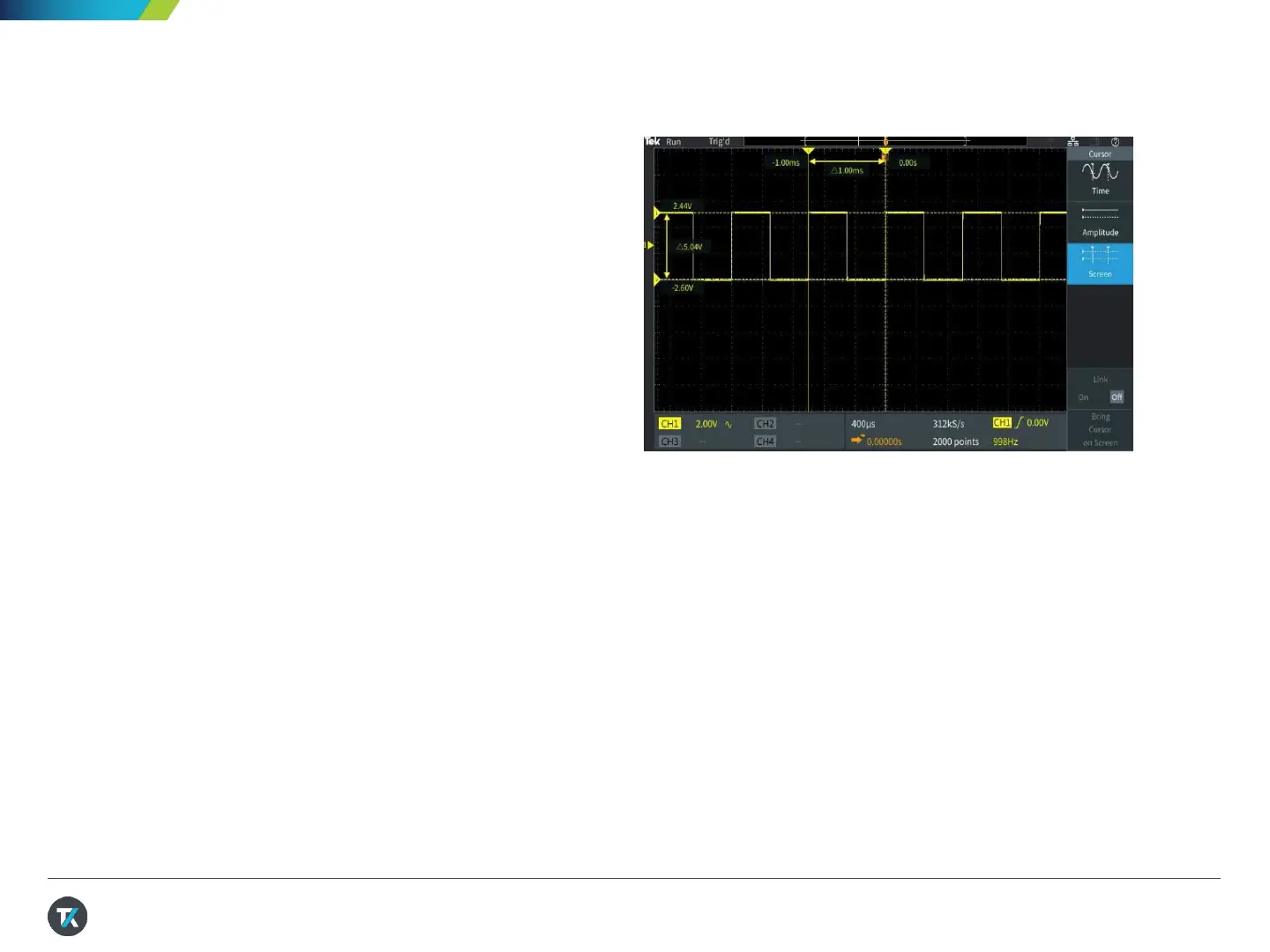

Figure 11. Using the cursors to measure period and
amplitudeof the Probe Comp signal
