Tektronix TBS2000B Series Demo Guide

7. MakingAutomated
Measurements (1/2)
Automated measurements use the processing power of
the scope to provide a frequency, time, amplitude, and
area measurements.
1. Connect passive probes to Channel 1 and
Channel 2. Connect both probe tips to Probe
Comp and both ground clips to Probe Comp
ground.
2. Press Autoset.
3. Press the Measure button in the resource section
of the front panel.
4. Notice, from top to bottom(Figure 12):
• Measurement selection indicator bar
• Snapshot button
• Most Used measurement list
• Measurements grouped by Frequency, Time,
Amplitude,Area

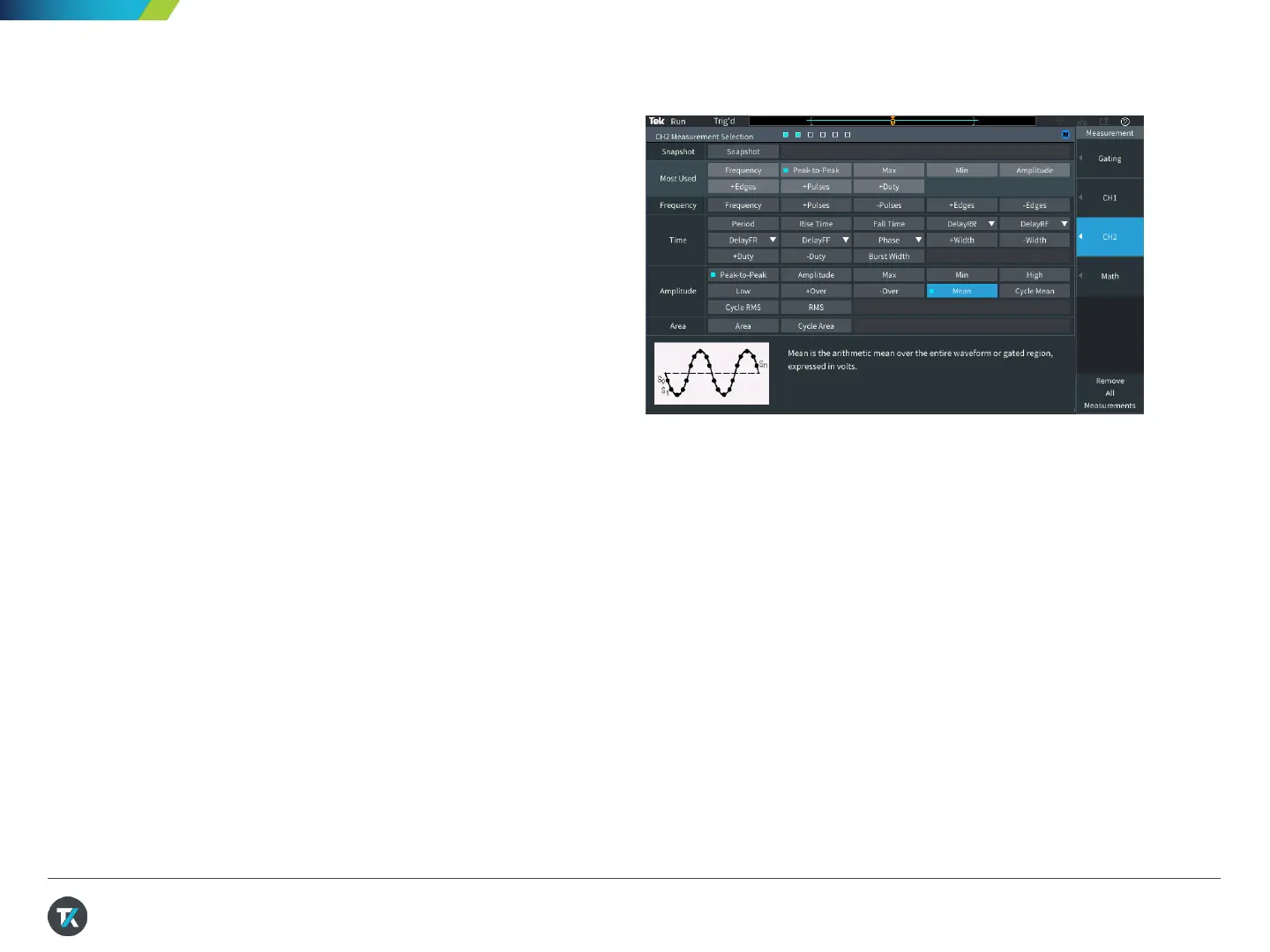

Figure 12. Peak-Peak and Mean measurementsselected
for Channel 2. Note the two blue boxes in the
measurementselectionindicator at the top of the display.
