Tektronix TBS2000B Series Demo Guide

7. MakingAutomated
Measurements (2/2)
Automated measurements use the processing power of
the scope to provide a frequency, time, amplitude, and
area measurements.
5. Press the CH1 bezel button. Scroll and press MPK
to select Frequency and +Duty for Channel 1.
6. Press the CH2 bezel button. Scroll and press
MPK to select Peak-Peak and Mean for Channel 2
(Figure 12).
7. Press Menu On/Off to return to the waveform
window.
8. Note the measurement readout (Figure 13).
9. Press Menu On/Off a couple of times to hide and
recall the measurement readout panel .

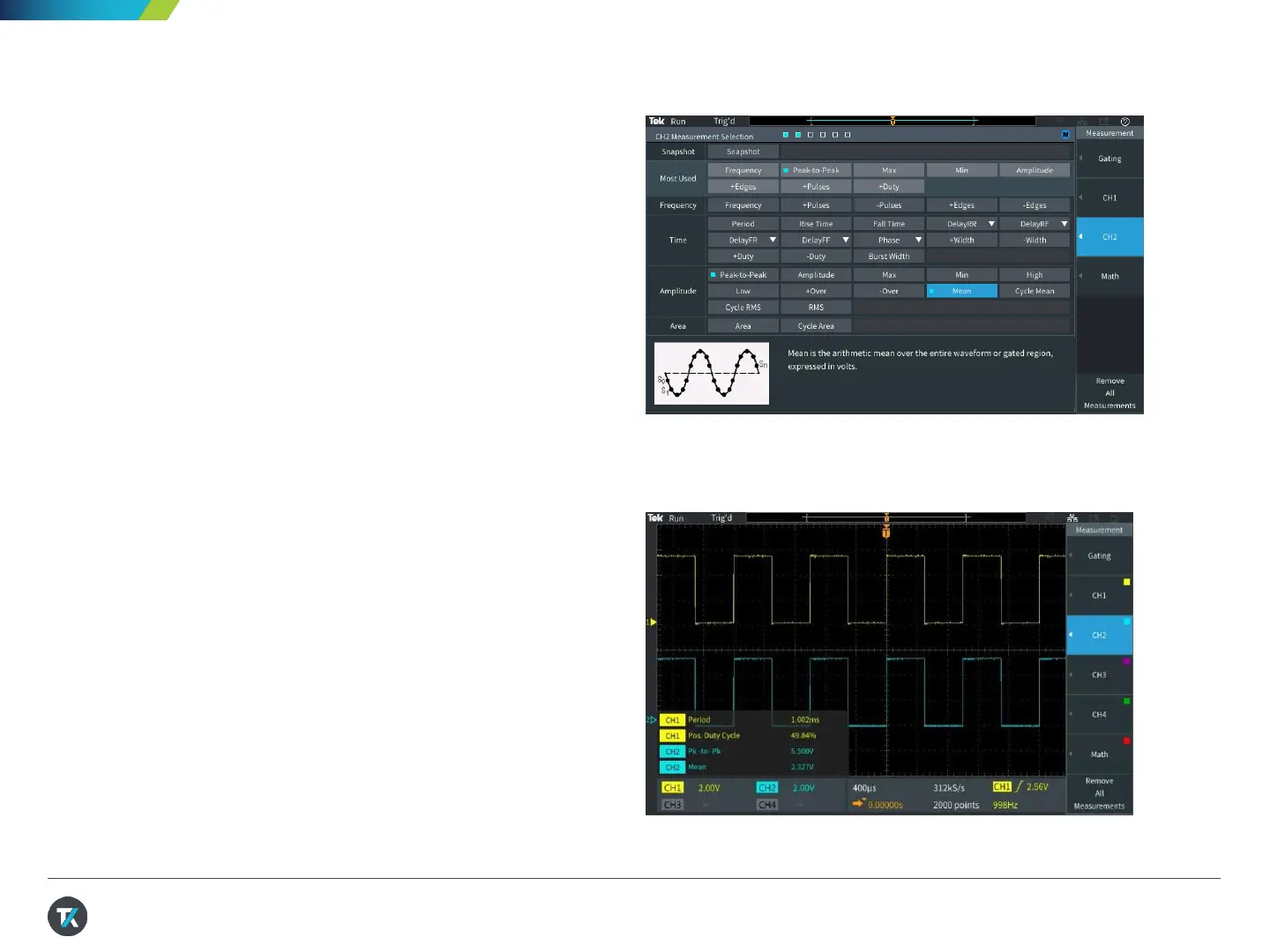

Figure 12. Peak-Peak and Mean measurementsselected
for Channel 2. Note the two blue boxes in the
measurementselectionindicator at the top of the display.
Figure 13. Transparent readouts let the signal show
through.
