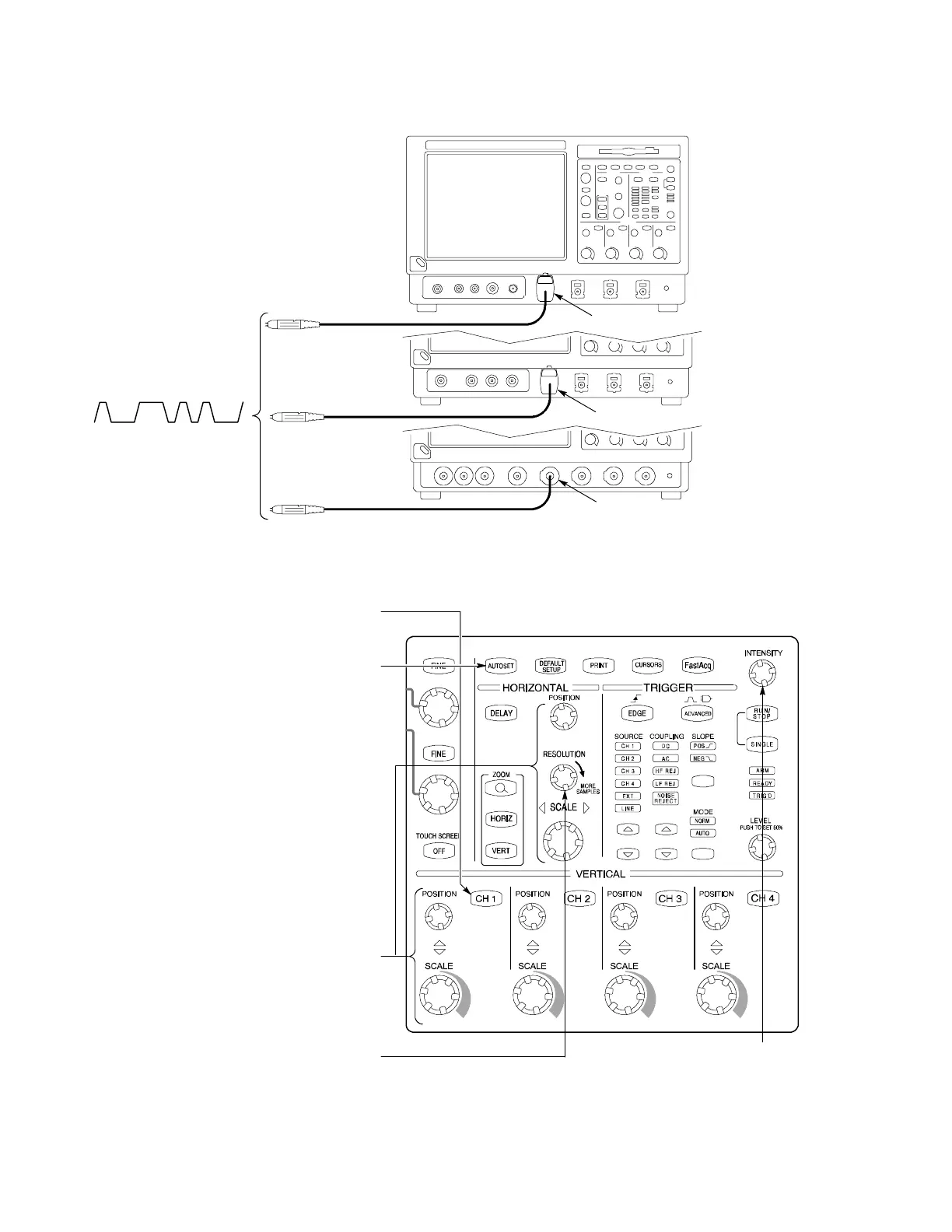

To Display a Waveform
Attach a probe to CH 1 and connect the probe
to your signal.
1
Push AUTOSET.
3
Adjust VERTICAL and HORIZONTAL
POSITION
and SCALE if necessary to
optimize the display.
4
Push CH 1 if channel 1 is not
already di splayed.
2
Adjust RESOLUTION to change the record
length and sample rate. You can acquire
more samples in the waveform to see more
detail or acquire fewer sam ples wi th a
faster update rate.
5 6
Adjust INTENSITY to change the
brightness, vector fill, and display
persistence of acquired points.
TDS7104
TDS7054
TDS7404
TDS7254
TDS7154
TDS6404
TDS6604
CSA7404
CSA7154
CH 1
CH 1
CH 1
